Read and retain carefully for as long as the product is being used. It contains vital information
on the operation and installation. The leaflet should be regarded as part of the product.
If you are just installing the unit, the leaflet must be given to the householder. The leaflet is to
be given to any subsequent user.
8:13 AM
Page 1

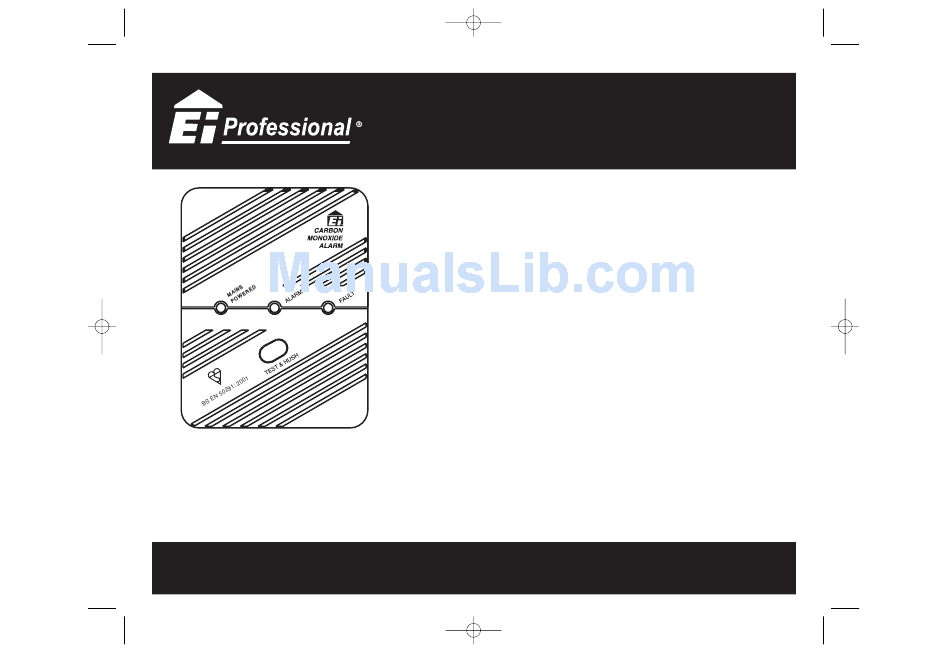

MAINS POWERED

CARBON MONOXIDE ALARM

Model Ei 225EN
Model Ei 220EN
INSTRUCTIONS
- HARD WIRED TO MAINS
- WITH POWER CORD

Advertisement

Table of Contents
loading

Related Manuals for Ei Electronics Carbon Monoxide Alarm Ei220EN

Summary of Contents for Ei Electronics Carbon Monoxide Alarm Ei220EN

  • Page 1: Carbon Monoxide Alarm

    B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation. The leaflet should be regarded as part of the product. If you are just installing the unit, the leaflet must be given to the householder. The leaflet is to be given to any subsequent user.

  • Page 2: Table Of Contents

    B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM READ THIS FIRST WHAT TO DO WHEN THE CO ALARM SOUNDS CARBON MONOXIDE - THE SILENT KILLER! WHERE TO PLACE CARBON MONOXIDE ALARMS INSTALLING YOUR CARBON MONOXIDE ALARMS TESTING YOUR CARBON MONOXIDE ALARMS MAINTAINING CARBON MONOXIDE ALARMS LIMITATIONS OF CARBON MONOXIDE ALARMS HOW TO PROTECT YOUR FAMILY TECHNICAL SPECIFICATIONS...

  • Page 3: Read This First

    B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM 1. READ THIS FIRST WARNING: The Ei225EN Alarm should be permanently wired to the mains by a qualified electrician in accordance with IEE wiring regulations (BS7671). The Ei220EN is just plugged in to the mains. Install the Carbon Monoxide Alarm (CO Alarm) in every room that contains a fuel burning appliance, particularly rooms where people spend a lot of time e.g.

  • Page 4: What To Do When The Co Alarm Sounds

    B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM When the CO Alarm detects abnormal levels of CO (above 50ppm CO) the red light starts to flash and the horn will sound within 90 minutes. At higher levels of CO the alarm will turn on sooner (see table B - page 9). The CO Alarm will automatically reset once the CO has cleared.

  • Page 5: Carbon Monoxide - The Silent Killer

    B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM (5) Ring your gas or other fuel supplier on their emergency number. Keep the number in a prominent place. (6) Do not re-enter the property until the alarm has stopped. (If the alarm has been silenced by pressing the test/hush button, wait at least 5 minutes so the alarm can check that the CO has cleared).
  • Page 6 B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM (CO) poisoning. CO is an invisible, odourless, tasteless and extremely toxic gas. It is produced by appliances and vehicles burning fuels, such as coal, oil, natural/bottled gas, paraffin, wood, petrol, diesel, charcoal etc. CO is absorbed by red blood cells in the lungs in preference to oxygen - this results in rapid damage to the heart and brain from oxygen starvation.

  • Page 7: B15584-R0-225En&220En-U&C 6/9/07 8:13 Am

    B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM Page 7 Mild Exposure: Slight headache, nausea, vomiting, fatigue (often described as “flu-like” symptoms). Medium Exposure: Severe throbbing headache, drowsiness, confusion, fast heart rate. Extreme Exposure: Unconsciousness, convulsions, cardiorespiratory failure, death. A high level of CO for a short period (e.g. 350 ppm CO for 30 minutes) will cause the same symptoms, a slight headache, as a lower level for a longer time (e.g.
  • Page 8 B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM Table A: Effects of Carbon Monoxide Poisoning Concentration of CO in Air Inhalation Time (approx) and Symptoms Developed The maximum allowable concentration for continuous exposure in any 8 hour period according to OSHA *. Slight headache after 1.5 hours. Slight headache, fatigue, dizziness, nausea after 2-3 hours.
  • Page 9 B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM Table B shows how the CO Alarm reacts to different levels of CO gas and exposure time. At higher levels of CO the alarm turns on sooner. The rate of flashing of the red light indicates the level of CO. Table B: CO Alarm Response CO Level 0 ppm...
  • Page 10 B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM (Without this feature the CO level would need to be at 50ppm CO for 90 minutes for an indication to be given). Note the Pre-Alarm signal may be triggered by CO coming for example, from cooking with gas, from car engines or from nearby barbecues. This is usually not a concern unless the Pre-Alarm signal persists until the alarm sounds and the CO source is unknown.

  • Page 11: Where To Place Carbon Monoxide Alarms

    B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM 4. WHERE TO PLACE CO ALARMS 3.1 Ideally a Carbon Monoxide Alarm should be installed in: - Every room containing a fuel burning appliance, and - Remote rooms where occupants spend a considerable amount of time - Every bedroom.
  • Page 12 B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM Outside the building. In an enclosed space (e.g. in or below a cupboard). In a damp or humid area. Directly above a sink or cooker. Next to a door, window, air vent or anywhere that it would be affected by draughts.
  • Page 13 B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM • The CO alarm should be a horizontal distance of between 1m and 3m from the potential CO source. • If there is a partition in the room, the CO alarm should be located on the same side of the partition as the potential source.
  • Page 14 B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM Page 14 3.31 If locating the CO alarm in a bedroom or in rooms remote from a fuel burning appliance (see figure 4) • Mount the CO alarm relatively close to the breathing zone of the occupants. Whatever position is chosen make sure it is possible to view the three light indicators, when in the vicinity of the alarm.

  • Page 15: Installing Your Carbon Monoxide Alarms

    B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM Page 15 5. INSTALLING YOUR CARBON MONOXIDE ALARMS The Alarm is designed to be permanently mounted. The unit can be screwed directly to the wall or ceiling and connected to the mains. It requires a current of 60mA. The Alarm must not be exposed to dripping or splashing.
  • Page 16 B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM Page 16 INSTALLATION PROCEDURE Ei225EN (Only) Warning: The CO alarm should be installed by a qualified electrican in accordance with the IEE wiring regulations (BS 7671). Failure to install this alarm correctly may expose the user to shock or fire hazards. Procedure: 1.
  • Page 17 B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM Page 17 6. The Brown wire (terminal 3) must be connected to the house wiring coloured brown or to a house terminal marked “L”. The Blue wire (terminal 4) must be connected to the house wiring coloured blue or to a house terminal marked “N”. The alarm does not need to be earthed, however for convenience a spare terminal (no.
  • Page 18 B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM Page 18 Ei220EN (Only) 1. Slide the cover off as shown in Figure 7 to expose the mounting screw holes. 2. Cut a notch in the back sidewall (on the centre of either side or at the bottom, for the power cord) to allow the unit to lie flush against the ceiling/wall.

  • Page 19: Testing Your Carbon Monoxide Alarms

    B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM Page 19 6. TESTING YOUR CO ALARM (1) Regularly check that the green mains power light is on. The unit cannot detect CO if the mains power is not on. (If it is off check circuit breakers, fuses, wiring etc). (2) Test the unit weekly by pressing the test/hush button.

  • Page 20: Maintaining Carbon Monoxide Alarms

    The CO Alarm has a distinctive on-off sound of 3 pulses, followed by a pause as compared with a typical Smoke Alarm which has a rapid pulsing sound. In addition, when your CO Alarm is sounding, the red alarm light in the centre of the cover will be flashing.
  • Page 21 B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM Page 21 Remove the CO Alarm when decorating. Do not allow water or dust to contaminate the alarm. Warning: Do not open or tamper with the CO Alarm. There are no user serviceable parts. This can damage the unit and may expose the user to shock or fire hazards. END OF LIFE When the unit has completed up to 6 years of operation the amber light will flash every 40 seconds.

  • Page 22: Limitations Of Carbon Monoxide Alarms

    B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM Page 22 3. Unscrew the terminal cover screw. 4. Disconnect the wires from the terminal block and make safe, particularly if the circuit is going to be turned on again after the CO Alarm is removed. 5.
  • Page 23 B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM Page 23 (3) The CO Alarm may not be heard. The sound output is loud but it may not be heard behind a closed door or if it is too far away. The Alarm may not wake up somebody who has taken alcohol or drugs.

  • Page 24: How To Protect Your Family

    B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM THE ACUTE EFFECTS OF CARBON MONOXIDE EXPOSURE. IT WILL NOT FULLY SAFEGUARD INDIVIDUALS WITH SPECIFIC MEDICAL CONDITIONS. IF IN DOUBT CONSULT A MEDICAL PRACTITIONER. 9. HOW TO PROTECT YOUR FAMILY Follow these guidelines to reduce the risk of Carbon Monoxide poisoning. Know and look out for tell-tale signs that Carbon Monoxide may be present.
  • Page 25 B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM air comes from and ensure vents/air bricks etc. remain unobstructed (particularly after building work). The appliances must also “breathe out” the waste gases (including the CO) – usually through a flue or chimney. Ensure chimneys and flues are not blocked or leaking, and get them checked every year.

  • Page 26: Technical Specifications

    B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM 10. TECHNICAL SPECIFICATION Operating Voltage : 230±10% VAC, 50Hz Power : 1 Watt, (60 mA) Power on Indicator : Green Light on Sensor : Electrochemical Sensor CO Sensitivity : Meets BS EN 50291: 2001. Unit operates as per Table B (page 9). Electrical Safety : Complies with relevant sections of EN 60335-1: 1994 Electromagnetic...
  • Page 27 B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM Initialisation Time : 70 seconds. On power up red and amber lights flash momentarily to show they are operational. Operating Temperature : -10°C to 40°C Humidity Range : 15% to 95% R.H. (non-condensing) Audible Alarm : 85dB(A) at 3m minimum Self Diagnostics : Horn beep and amber fault light flashes every 40 seconds if a sensor fault is found.

  • Page 28: Getting Your Carbon Monoxide Alarms Serviced

    State the nature of the fault, where the CO Alarm was purchased, and the date of purchase. Ei Electronics guarantees the Ei225EN Carbon Monoxide Alarm for five years from the date of purchase against any defects that are due to faulty materials or workmanship.
  • Page 29 This guarantee excludes incidental and consequential damage. If this Carbon Monoxide Alarm should become defective within the guarantee period, it must be returned to where it was purchased or alternatively to Ei Electronics., carefully packaged, with the problem clearly stated. (see section 11 “Getting the CO Alarm Serviced”) along with proof of the date of purchase.

  • Page 30: Troubleshooting

    B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM Page 30 13. TROUBLESHOOTING 1. ALARM DOES NOT WORK WITH THE TEST BUTTON: (1) Check that the green mains power light is on. If it is off check the wiring, fuse, circuit breakers etc. (2) Hold the test button down for at least 5 seconds. 2.
  • Page 31 B15584-R0-225EN&220EN-U&C 6/9/07 8:13 AM (2) Ensure there are no fumes in the area (e.g. paint, thinners, alcohol, hair spray, chemical cleaners aerosol sprays etc). (3) Ensure there is no outdoor source of CO in the vicinity (e.g. a car with engine running, heavy traffic, heavy air pollution, barbecue fumes etc).
  • Page 32 Shannon, Co. Clare, Ireland. Tel: (061) 471277 Fax: (061) 471053 E-mail. helpdesk@eiltd.ie www.eielectronics.com Aico Ltd. Mile End Business Park, Maesbury Rd, Oswestry, Shropshire, SY10 8NN, U.K. Tel: 0870 7584000 Fax: 0870 7584010 E-mail: support@aico.co.uk www.aico.co.uk © Ei Electronics 2005 P/N B15584 Rev 0...

This manual is also suitable for:

Ei 225enEi 220en

Table of Contents
