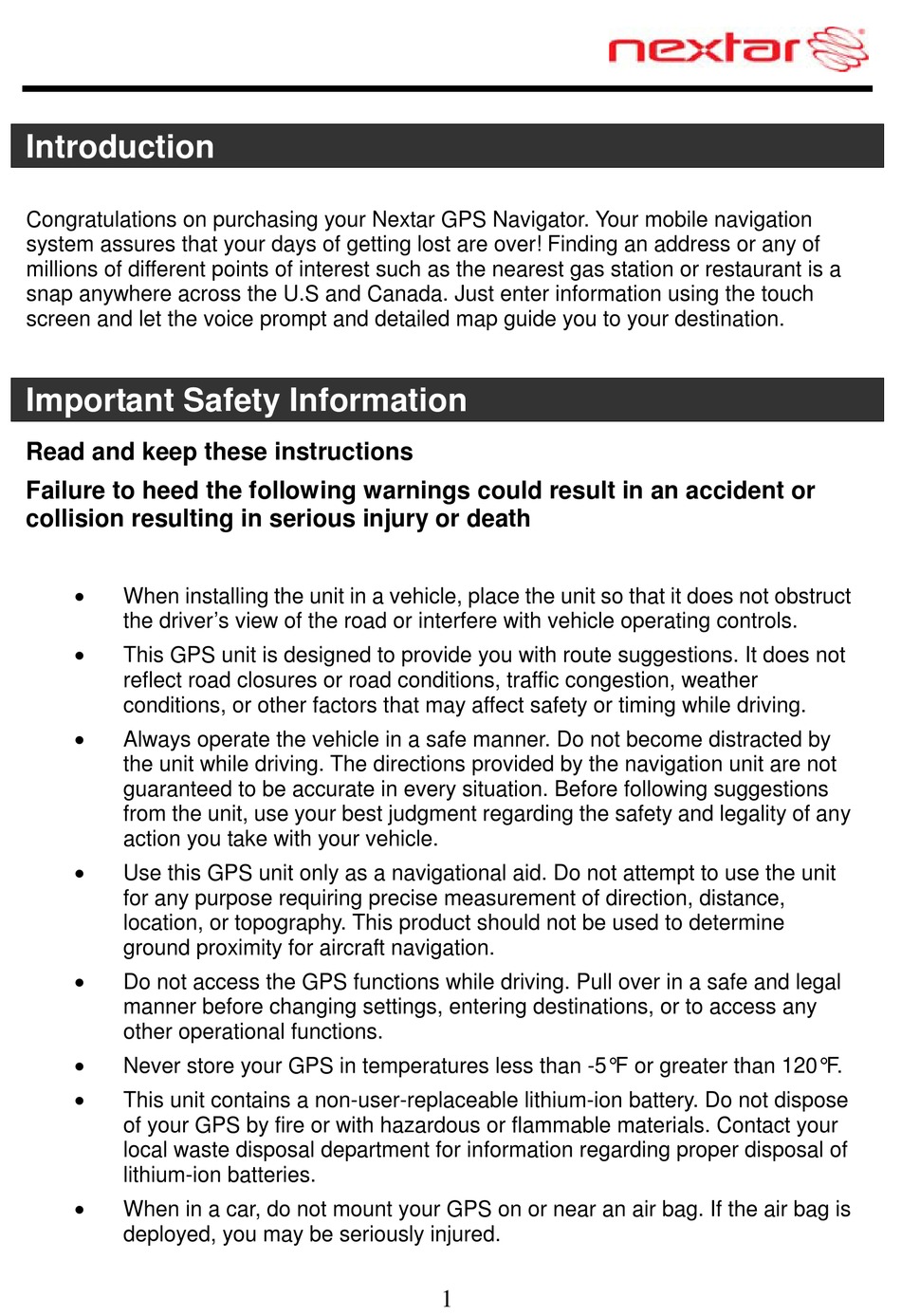

Introduction
Congratulations on purchasing your Nextar GPS Navigator. Your mobile navigation
system assures that your days of getting lost are over! Finding an address or any of
millions of different points of interest such as the nearest gas station or restaurant is a
snap anywhere across the U.S and Canada. Just enter information using the touch
screen and let the voice prompt and detailed map guide you to your destination.

Important Safety Information

Read and keep these instructions
Failure to heed the following warnings could result in an accident or
collision resulting in serious injury or death

When installing the unit in a vehicle, place the unit so that it does not obstruct
the driver's view of the road or interfere with vehicle operating controls.

This GPS unit is designed to provide you with route suggestions. It does not
reflect road closures or road conditions, traffic congestion, weather
conditions, or other factors that may affect safety or timing while driving.

Always operate the vehicle in a safe manner. Do not become distracted by
the unit while driving. The directions provided by the navigation unit are not
guaranteed to be accurate in every situation. Before following suggestions
from the unit, use your best judgment regarding the safety and legality of any
action you take with your vehicle.

Use this GPS unit only as a navigational aid. Do not attempt to use the unit
for any purpose requiring precise measurement of direction, distance,
location, or topography. This product should not be used to determine
ground proximity for aircraft navigation.

Do not access the GPS functions while driving. Pull over in a safe and legal
manner before changing settings, entering destinations, or to access any
other operational functions.

Never store your GPS in temperatures less than -5°F or greater than 120°F.

This unit contains a non-user-replaceable lithium-ion battery. Do not dispose
of your GPS by fire or with hazardous or flammable materials. Contact your
local waste disposal department for information regarding proper disposal of
lithium-ion batteries.

When in a car, do not mount your GPS on or near an air bag. If the air bag is
deployed, you may be seriously injured.
1
