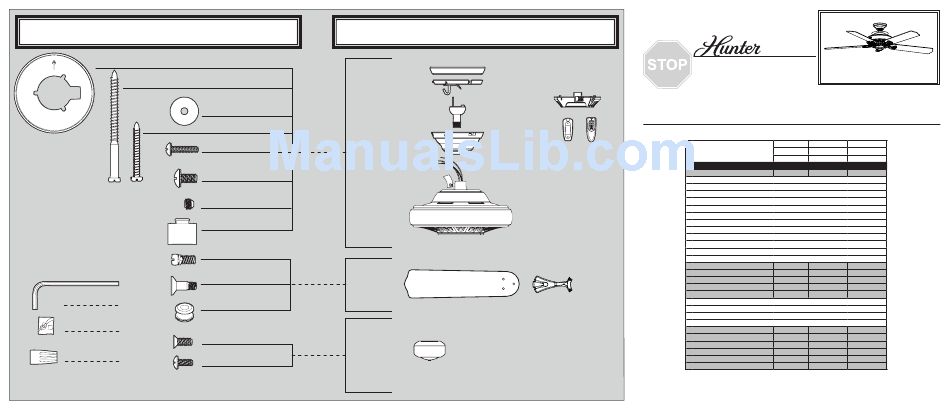

Hunter 23685 Parts Manual

Hardware
(Drawn to Scale)
x 1
x 2
x 4
x 2
x 3
x 4
x 1
x 4
x 11
x 16
Allen
x 1
Wrench
x 16
Balancing
x 1
Kit
x 3
Wire
x 4
Connector
x 3
Low Profile
Washer
3" Wood Screw
Flat Washer
1.5" Wood Screw
Hanger
Locking Screw
Bracket
Assembly
Canopy Screw
Setscrew
Mounting Isolator
Screw, Blade
Iron Armature
Screw, Blade
Assembly Blade
Assembly
Blade
Grommet
Screw, Switch
Housing Assembly
Switch
Housing
Screw,
Assembly
Machine, 6-32
Fan Parts
(Not Drawn to Scale)
PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all Using this Parts Guide, make sure all
parts are included in the box. parts are included in the box.
If parts are missing, DO NOT RETURN If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance. THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY. THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS. REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model # 23688

Parts List

Asm. Dwg. # 96684-01
Finish New Bronze
Item Name Qnty Part #
* Hanging System Kit 1 94945-30
Ceiling Plate
Canopy
Canopy Trim Ring
Hanger Ball / Downrod Assembly
Set Screw (Not Shown)
Low Profile Washer
Canopy Screw
Screw, Wood
Screw, Wood
Flat Washer
Mounting Isolator
* Screw, Low Profile
Switch Housing Assembly 1 96682-30
Blade Iron Set 1 93475-05
Blade Set 1 75006-99
Screw, Blade Iron Armature 11 63755-05
Hardware Kit 1 96684-00-860
Rubber Blade Grommet
Blade Assembly Screw
Screw, Machine, #6-32
Wire Connector
Balancing Kit 1 65666-01
Switch Housing Assembly Screw 3 74506-36
Allen Wrench 1 64801-01
Remote Control Transmitter 1 85095-02
Remote Control Cradle 1 85093-01
Remote Control Receiver 1 85482-04
Hunter Fan Company • 7130 Goodlett Farms Pkwy. #400 • Memphis, TN 38016 • www.HunterFan.com • 98000-01-568 11-09-2011 •
23685
96684-02
Antique Pewter
Part #
94945-14
96682-14
93475-05
75147-02
63755-05
96684-00-861
65666-01
74506-36
64801-01
85095-02
85093-01
85482-04
2011
©
