Hunter 21958 Parts Manual

Hardware
(Drawn to Scale)
x 2
x 4
x 2
x 4
x 1
x 11
x 16
Balancing
x 1
Kit
Wire x 3
x 4
Connector
x 3
3" Wood Screw
Flat Washer
Hanger
1.5" Wood Screw
Bracket
Assembly
Canopy Screw
Setscrew
Blade
Assembly
Screw, Blade
Iron Armature
Screw, Blade
Assembly
Switch
Housing
Assembly
Screw, Switch
Housing Assembly
Screw,
Machine, 6-32
Fan Parts
(Not Drawn to Scale)

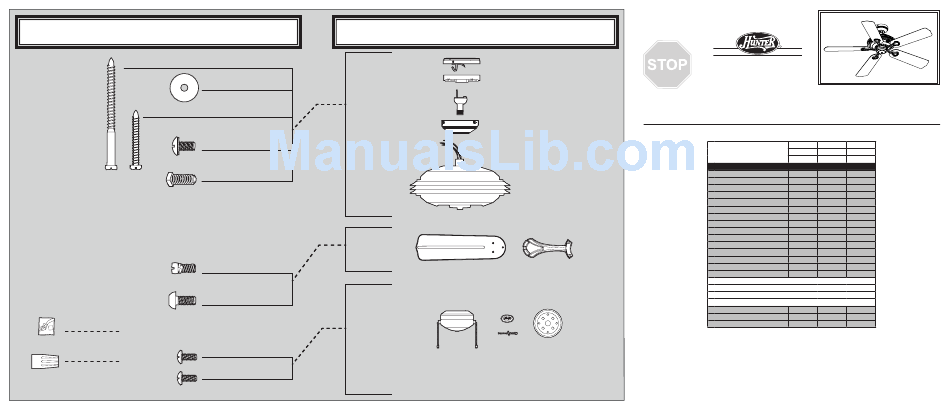

PARTS GUIDE
PARTS GUIDE
R
SINCE 1886
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model #

Parts List

Asm. Dwg. # 94274-01
Finish
Item Name Qnty
Ceiling Plate 1 83525-01
Canopy 1 83787-04
Ceiling Plate Gasket 1 74254-01
Hanger Ball / Downrod Assembly 1 74655-03
Setscrew 1 03009-04
Canopy Screw 4 74510-22
Wood Screw 2 06512-03
Wood Screw 2 03144-05
Flat Washer 4 06301-02
Switch/Housing Assembly 1 95730-03
Switch Housing Gasket 1 74563-01
Blade Iron Set 1 92805-05
Blade Set 1 G0253-61
Screw, Blade Iron Armature 11 63755-06
Hardware Kit 1 94274-00-860 94274-00-861
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Screw, Switch Housing Assembly
Balancing Kit 1 07570-01
Pull Chain Pendant 2 74393-08
Pull Chain 2 63756-53
