For Your Records and
Warranty Assistance
For reference, also attach your receipt or a copy
of your receipt to the manual.
__________________________________________
Model Name
__________________________________________
Model No.
__________________________________________
Date Purchased
__________________________________________
Where Purchased
Form# 41753-01
20110511
©2011 Hunter Fan Co.
Type 5 Models
Type 5 Models
Type 5 Models

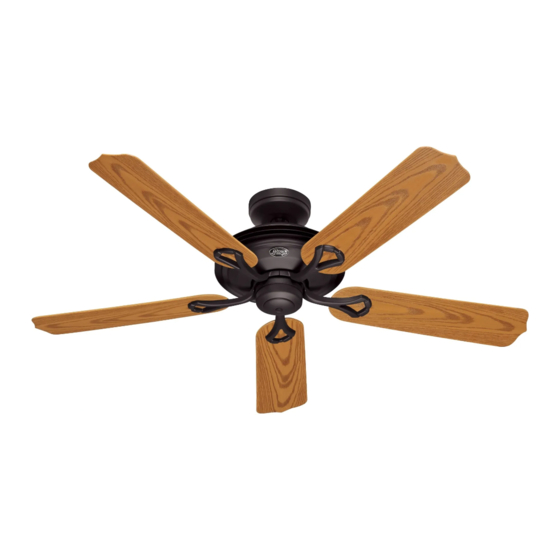

Owner's Guide and Installation Manual
Advertisement
Table of Contents
Related Manuals for Hunter 21955
Summary of Contents for Hunter 21955
- Page 1 Warranty Assistance For reference, also attach your receipt or a copy of your receipt to the manual. Owner’s Guide and Installation Manual __________________________________________ Model Name __________________________________________ Model No. __________________________________________ Date Purchased __________________________________________ Where Purchased Form# 41753-01 20110511 ©2011 Hunter Fan Co.
-
Page 2: Table Of Contents
8 • Operating and Cleaning Your Ceiling use a solid-state speed control with this fan. Use only Hunter speed Fan ....... 13 controls. -
Page 3: Preparing The Fan Site
If you want to use an existing fan site, complete the following checklist to System determine if the site is acceptable and safe for your new Hunter fan. If you cannot check off every item, prepare a new fan site as described on this page. - Page 4 ANSI/NFPA 70. If your ceiling fan, go to your fan manual and continue with Section 2 • Installing the you are unfamiliar with wiring, use a Ceiling Plate. qualified electrician. 41753-01 • 05/11/11 • Hunter Fan Company...
- Page 5 Support Brace Hunter’s patented 2-position mounting system provides you maximum installation flexibility and ease. You can install your Hunter fan in one of two ways, depending on ceiling height and your preference: Standard or Angled mounting. The steps in this manual include instructions for Ceiling both Installer’s Choice mounting methods.
-
Page 6: Getting Ready
• Drill holes for and install wood screws. • Identify and connect electrical wires. • Lift 40 pounds. If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician. Gathering the Tools You will need the following tools for installing the fan: •... -
Page 7: Installing The Ceiling Plate
3” Wood Screw For Angled Ceilings: Be sure to orient the ceiling plate so that the hook and one of the threaded screw holes in the ceiling plate are on the lower side. 41753-01 • 05/11/11 • Hunter Fan Company... -
Page 8: Assembling And Hanging The Fan
Once assembled, do not remove the downrod. 3-4. Raise the fan and place the hook on the ceiling plate through the Round round hole in the rim. Hole 41753-01 • 05/11/11 • Hunter Fan Company... -
Page 9: Wiring The Fan
4-7. Spread the wires apart, with the grounded wires on one side of the outlet box and the ungrounded wires on the other side of the outlet box. 41753-01 • 05/11/11 • Hunter Fan Company... -
Page 10: Installing The Canopy
5-3. Twist canopy counterclockwise to secure. 5-4. Install third canopy screw in round hole on canopy. Securely tighten all three screws. Steps 5-1– 5-3 Canopy Steps 5-4 Mounting Screw 41753-01 • 05/11/11 • Hunter Fan Company... -
Page 11: Assembling The Blades
6 • Assembling the Blades 6 • Assembling the Blades Step 6-1 (Detail) Hunter fans use several styles of fan blade irons (brackets that hold the blade to the fan). 6-1. Your fan may include blade grommets. If your fan has grommets, insert them by hand into the holes on the blades. -
Page 12: Completing Your Installation
Note: You can customize your Hunter fan with a number of accessory light kits. Housing Assembly Step 7-4 Screw Steps 7-5 – 7-6 41753-01 • 05/11/11 • Hunter Fan Company... -
Page 13: Fan
8-4. The blades on this fan have been treated with Hunter’s Dust Armor protection, making the blades less likely to attract dust and dirt. - Page 14 Hunter fans have the power to cut your cooling costs up to 40%. Beat the High Cost of Cooling The air movement created by a Hunter ceiling fan lets you set your thermostat higher and still stay comfortable. Every degree you raise the thermostat saves up to 7% on energy costs.
-
Page 15: Troubleshooting
If you need parts or service assistance, please call 888-830-1326 (In Canada, call 866-268-1936) or visit us at our website at http://www.hunterfan.com. Hunter Fan Company 7130 Goodlett Farms Parkway #400 Memphis, Tennessee 38016 41753-01 • 05/11/11 • Hunter Fan Company...
