Insignia NS-42E480A13 Quick Setup Manual

42"1080p LED TV 42"1080p LED TV

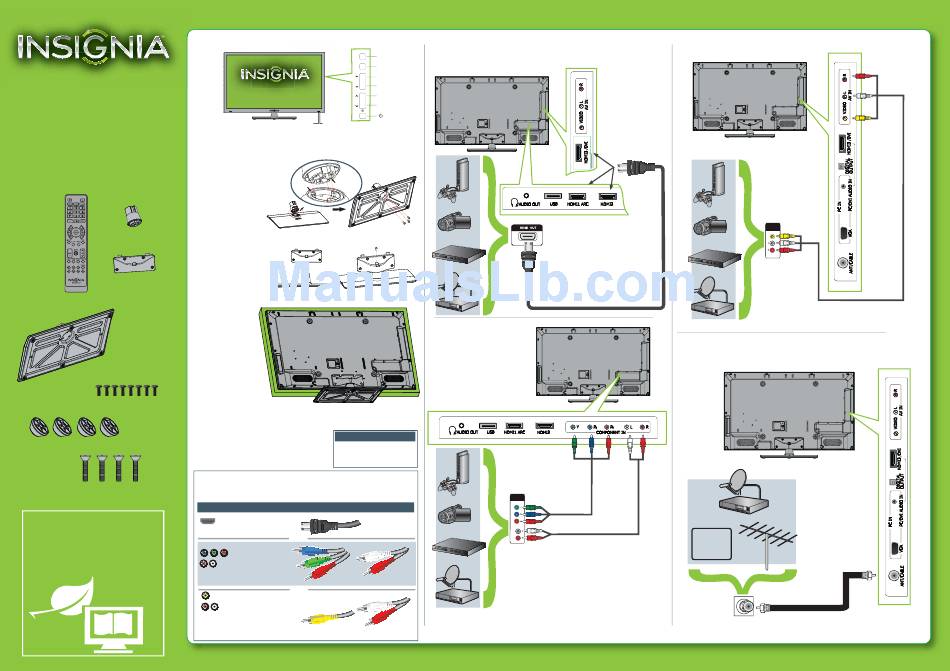

QUICK SETUP GUIDE

NS-42E480A13
Thank You
for purchasing this fine Insignia television.
We hope you enjoy the quality and reliability of this
product for years to come.
_______________________________
Stand column
+
Remote control
and 2 AAA
Stand cover
batteries
Base plate
M5 screws (12 mm length) (8)
Spacers (4)
M6 spacer screws (25 mm length) (4)
WE ARE GOING GREEN!
A copy of your User Guide is not provided in
the box but is available online.
Go to www.insigniaproducts.com, click
Support & Service, enter your model
number in the Product Search field,
then click Search.
Front features feature feature e s e e e s es es features
MENU
INPUT
VOLUME
CHANNEL
Remote sensor Power indicator
Installing the stand
1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from
damages and scratches.
2 Align the front of the stand column
with the front of the base, then
insert the stand column into the
base making sure that the groove
Groove
in the stand column aligns with Ridge
the ridge in the base. Secure the
stand column to the base with
three M5 x 12 mm screws
(provided).
Stand cover
3 Align the stand cover with the
stand column, then secure the
stand cover to the stand column
with one M5 x 12 mm screw
(provided). Make sure that the
bottom of the stand cover is flush
Stand column
against the top of the stand
column.
Back View
4 Secure the stand cover to
the TV screen using four
M5 x 12 mm screws
(provided).
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and
scratches.
2 Insert four spacers (provided) into the corresponding bracket screw
Warning
holes on the back of your TV, then attach the wall-mount bracket to
your TV using four M6 x 25 screws (provided) or the screws/spacers
This apparatus is intended to be
provided with the wall-mount bracket. See the instructions that
supported by a UL Listed
came with the wall-mount bracket for screw/washer configurations
and information on how to correctly hang your TV. wall-mount bracket.
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Connection type Cable connector
Video quality
HDMI video/audio Best
OR
Better
Component video
and analog audio
OR
Good
Composite video
and analog audio
You can use the HDMI 3/DVI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device's jack.
Connecting a DVD or Blu-ray player, cable box,
MENU satellite receiver, camcorder, or game station
INPUT
Using an HDMI cable (best)
VOLUME +
VOLUME-
CHANNEL V
CHANNEL V
Note: Cable is not provided.
Using component cables (better)
AUDIO/VIDEO
OUT
Note: Cables are not provided.
Using an AV cable (good)
AUDIO/VIDEO
OUT
Note: Cable is not provided.
Connecting an antenna/cable wall jack
Connect a coaxial cable (not included) to the ANT/CABLE jack on the back side
of your TV and to the antenna/cable wall jack.
CABLE
Note: Cable is not provided.
