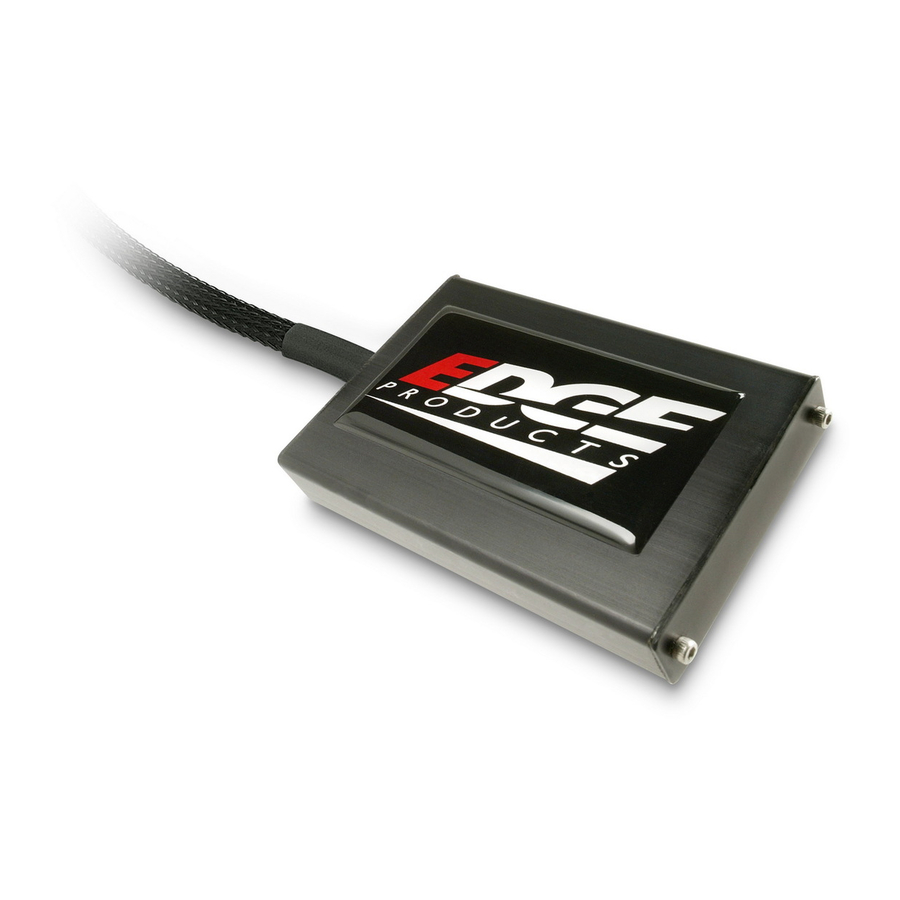

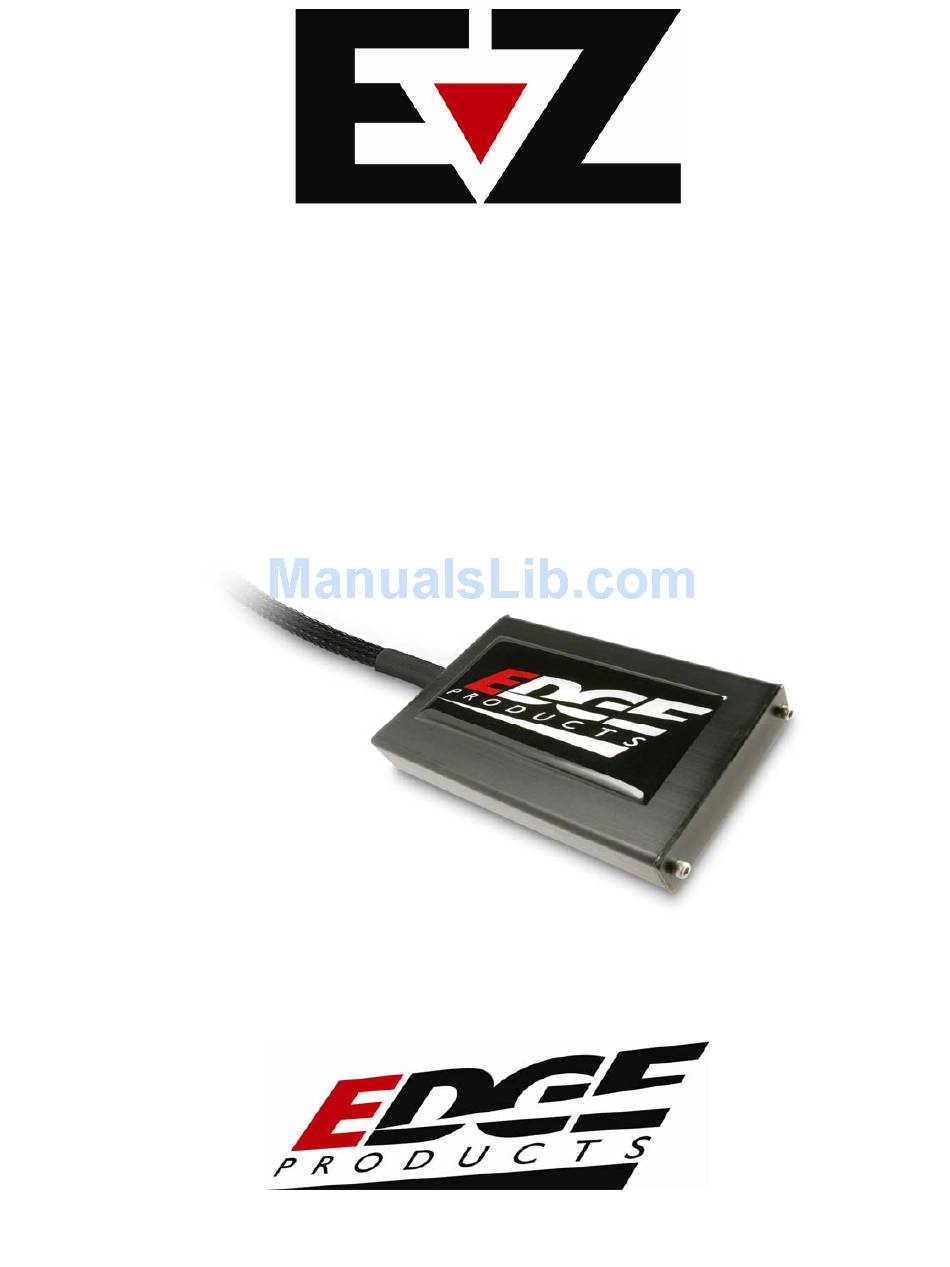

- Page 1 Caterpillar 3126 B & E models Edge EZ Module Installation Instructions & Manual OLD P/N: ECAT1000 NEW P/N: 50200...
-
Page 2: Table Of Contents
DISCLAIMER OF LIABILITY___________________________________________________ 3 LIMITATION OF WARRANTY __________________________________________________ 3 Installation Instructions_________________________________________________________ 5 Supplied Items: ____________________________________________________________________ 5 Items required: ____________________________________________________________________ 5 Module Installation ____________________________________________________________ 6 Harness Connector _________________________________________________________________ 6 Boost Sensor Connection ____________________________________________________________ 7 IAP Sensor Connection ______________________________________________________________ 7 Final Inspection and Operation _______________________________________________________ 7 Boost Elbow Installation (Optional) ___________________________________________________ 7 Fueling Adjustment_________________________________________________________________ 8 Power Gains _______________________________________________________________________ 8... -
Page 3: Disclaimer Of Liability
THIS IS A HIGH PERFORMANCE PRODUCT. USE AT YOUR OWN RISK. Do not use this product until you have carefully read the following agreement. This sets forth the terms and conditions for the use of this product. The installation of this product indicates that the BUYER has read and understands this agreement and accepts its terms and conditions Edge Products Inc. - Page 4 THIS PRODUCT AND THE BOOST ELBOW (if installed) MUST BE REMOVED WHEN TAKING VEHICLE TO VEHICLE DEALERSHIP OR OTHER SERVICE FACILITY!! LEAVING PRODUCT INSTALLED MAY AFFECT DEALER DIAGNOSTIC ANALYSIS AND SCAN TOOL FUNCTIONS!! This warranty is void for any new products purchased through auction websites.
-
Page 5: Installation Instructions
Installation Instructions Please read these instructions through completely and thoroughly understand each step prior to installation IMPORTANT: Read all Disclaimer, Warranty, and Installation Instructions Supplied Items: 1. Power Edge EZ CAT Module 2. Three Wire Ties 3. Two Velcro Strips 4. -
Page 6: Module Installation
Module Installation Harness Connector – Your ECAT1000 module may be equipped with a harness that can be disconnected at the module itself (See figure 1A). It is important to make sure that your ECAT1000 module is always connected to the harness when the wiring harness is connected to the vehicle, otherwise the vehicle may not run properly, or may trip engine “codes.”... -
Page 7: Boost Sensor Connection
Boost Sensor Connection 1. The boost sensor is located on the driver’s side of the engine as shown in the photo. Disconnect the stock connector and plug in the supplied connectors that are located closest to the Power Edge EZ CAT module. -
Page 8: Fueling Adjustment
7. Using the 7/16” wrench, unscrew the stock brass elbow out of the turbocharger housing. Using the 7/16” wrench, install the supplied brass elbow, tighten-be careful not to over-tighten. Slip the supplied hose clamp onto the stock hose, install the stock hose onto the newly installed brass elbow and tighten the hose clamp with the ¼”... -
Page 9: Technical Support
Technical Support: 888-360-3343 To expedite your support call, please have part number (i.e., EAF2100A), version number, and Date of Manufacture ready prior to calling support...
