- Page 1 2004.5-2007 Dodge Cummins 5.9L (325HP) Edge Products EZ Module Installation Instructions and Manual OLD P/N: EZD1000D NEW P/N: 30204...
- Page 2 Edge EZ User Manual Edge Products © 2007 Edge Products All rights reserved. Edge Products 1080 South Depot Dr. Ogden, UT 84404 1-888-360-3343 www.edgeproducts.com Manual Version 5...
-
Page 3: Table Of Contents
Fuel Pressure Sensor Connection ____________________________________________________10 Final Inspection and Operation _____________________________________________________10 Adjusting Power Levels ____________________________________________________________11 Power Levels________________________________________________________________ 12 How to Use Your Edge EZ Module ______________________________________________ 13 Using your Edge EZ Module_____________________________________________________________ 13 Towing__________________________________________________________________________13 Exhaust Gas Temperature _________________________________________________________14 Technical Support ___________________________________________________________ 15... -
Page 4: Disclaimer Of Liability
BUYER has read and understands this agreement and accepts its terms and conditions DISCLAIMER OF LIABILITY Edge Products Inc. and its successors, distributors, jobbers, and dealers (hereafter SELLER) shall in no way be responsible for the product's proper use and service. THE BUYER HEREBY WAIVES ALL LIABILITY CLAIMS. -
Page 5: Aftermarket Products And Your Vehicle's Warranty
Edge EZ User Manual Edge Products AFTERMARKET PRODUCTS AND YOUR VEHICLE’S WARRANTY Many of our customers ask, “Will your product void my vehicle’s manufacturer’s warranty?” While the answer is straightforward from a legal standpoint, we also want to educate our customers (and after-market consumers) on some industry realities and offer some common sense precautions to minimize your risk. - Page 6 Edge EZ User Manual Edge Products This warranty is void for any new products purchased through auction websites. Warranty is valid only for new products purchased through Authorized Dealers (proof of purchase required for all warranty claims). All Edge modules and programmers are built to operate with OEM calibrations. When you take your vehicle to a service center they may, by your request or otherwise, update your vehicles calibrations.
-
Page 7: About The Dodge Ez
About the Dodge EZ Introduction Thank you for purchasing the Edge EZ Module for the Dodge Cummins® 5.9L Diesel. The Edge EZ module has been developed and produced from the highest quality materials available to ensure the best performance for years to come. If you have any questions, please contact Edge Products. -
Page 8: Dodge Cummins 5.9L Ez Installation

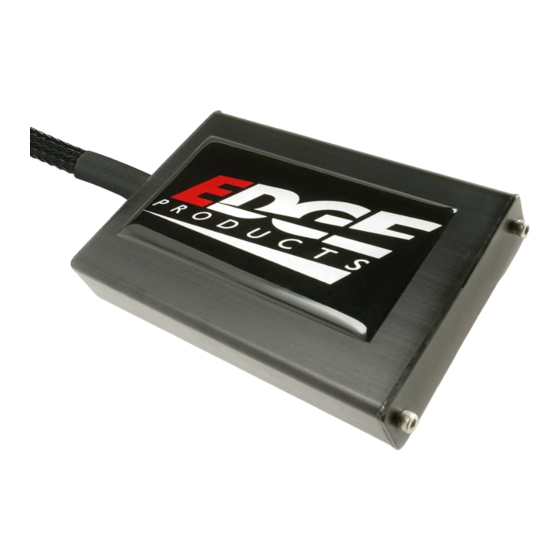

Tools Required: None Please read these instructions completely so that you understand each step prior to installation. The Edge EZ Module This picture shows the Edge EZ Module with the harness cable Fuel Pressure Power Level Connections Selector Switch Connection... - Page 9 Edge Products Module Installation The Edge EZ Module can mount on the flat black plastic fuse box cover located in the engine compartment on the driver’s side fender. Attach the module to the truck using the supplied VELCRO® strips, allowing enough harness movement for removal of the cover.
-
Page 10: Map (Manifold Absolute Pressure) Connection
Edge EZ User Manual Edge Products MAP (Manifold Absolute Pressure) Connection 1. Connect the supplied MAP sensor wiring harness to the main wiring harness in the engine compartment. Disconnect the stock wiring harness at the MAP sensor located on top of the intake manifold. -
Page 11: Adjusting Power Levels
Edge EZ User Manual Edge Products Adjusting Power Levels The Edge EZ Module offers 3 levels of power beyond stock. The power from the Edge EZ Module begins by plugging the module into your truck. The power levels are adjusted by changing the “in cab”... -
Page 12: Power Levels
Edge EZ User Manual Edge Products Power Levels The following power gains are representative of an actual test vehicle. Power gains may vary somewhat on a different vehicle or in different geographic settings. Horsepower Torque Level 1: Level 2: Level 3:... -
Page 13: How To Use Your Edge Ez Module
How to Use Your Edge EZ Module Using your Edge EZ Module This section is to help you use the Edge EZ module effectively and add enjoyment to your diesel truck experience. The first thing you will probably notice especially if this is your first time driving a diesel truck with a performance module is that you will experience more power, quicker take-offs, better passing and acceleration, and even better fuel economy. -
Page 14: Exhaust Gas Temperature
Edge EZ User Manual Edge Products Exhaust Gas Temperature Now let’s talk about the different power levels and the Exhaust Gas Temperature (EGT) readings, and what they mean. As mentioned earlier the EGT tells you how hot the exhaust gases are in the exhaust manifold coming from the engine. This is important because you shouldn’t let them run for long periods above 1350 F. -
Page 15: Technical Support
Edge EZ User Manual Edge Products Technical Support 888-360-3343 To expedite your support call, please have part number (i.e., EZD1000D), version number, and Date of Manufacture ready prior to calling support...
