Summary of Contents for Edge Products GM Duramax 20200

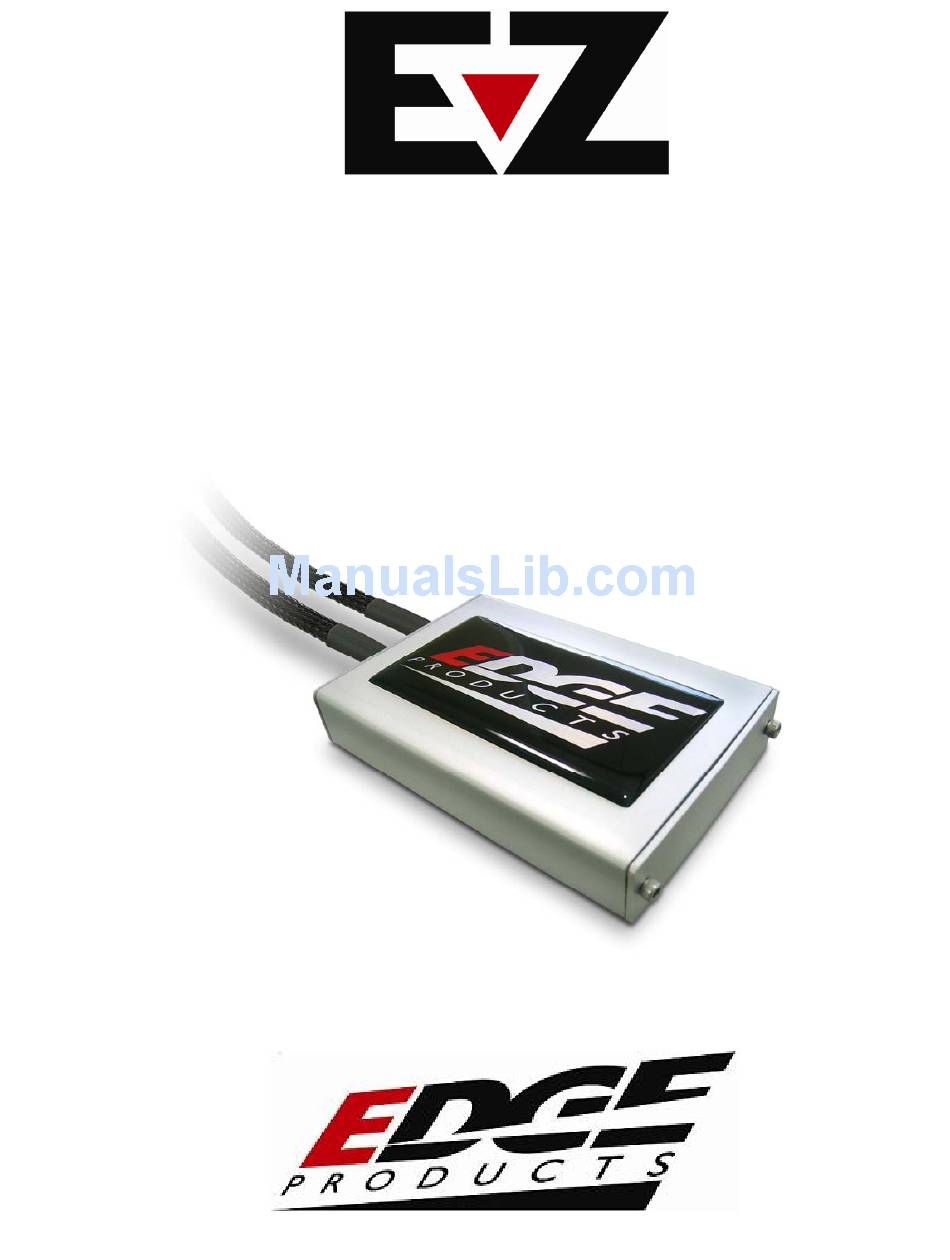

- Page 1 2001-2004 GM Duramax 6.6L LB7 Power Edge LB7 EZ Installation Instructions and Manual OLD P/N: EZC1000 NEW P/N: 20200...
-
Page 2: Table Of Contents
Edge Products, LLC GM LB7 EZ Manual Table of Contents DISCLAIMER OF LIABILITY _________________________________________________ 3 LIMITATION OF WARRANTY _________________________________________________ 3 About the Edge LB7 EZ________________________________________________________ 5 Power Edge LB7 EZ Getting Connected___________________________________________ 7 Using the Power Edge LB7 EZ __________________________________________________ 9 Power Gains ________________________________________________________________ 10 Making Sense of it All ________________________________________________________ 11 Transmission Relearning______________________________________________________ 13... -
Page 3: Disclaimer Of Liability
GM LB7 EZ Manual The EZ Module is a high performance product It is strongly recommended that EGT and boost gauges USE THIS PRODUCT AT YOUR OWN RISK. Do not use this product until you have carefully read the following agreement. This sets forth the terms and conditions for the use of this product. - Page 4 Edge Products, LLC GM LB7 EZ Manual IMPORTANT INFORMATION ABOUT YOUR VEHICLE’S WARRANTY — PLEASE READ! Many of our customers ask, “Will your product void my vehicle’s manufacturer’s warranty?” While the answer is straightforward from a legal standpoint, it’s important to educate our customers (and all after-market consumers) on some industry realities and offer some common sense precautions to minimize your risk.
-
Page 5: About The Edge Lb7 Ez
GM LB7 EZ Manual All Edge modules and programmers are built to operate with OEM calibrations. When you take your vehicle to a service center they may, by your request or otherwise, update your vehicles calibrations. Therefore it is important that you return your vehicle to stock before taking it in for service. - Page 6 Edge Products, LLC GM LB7 EZ Manual Warning: Do not stack the Edge LB7 EZ with the Edge LB7 Juice. It can cause severe damage to the engine.
-
Page 7: Power Edge Lb7 Ez Getting Connected
GM LB7 EZ Manual Power Edge LB7 EZ Getting Connected Supplied Items: 1. Power Edge EZ Module 2. Three Wire Ties Two Velcro Strips Power Adjustment Switch Required Tools: None Please read these instructions completely so that you understand each step prior to installation The Power Edge LB7 EZ Module This picture shows the Power Edge LB7 EZ Module with the harness cable. -
Page 8: Connecting The Harness
Edge Products, LLC Installing the EZ Module 1. The Power Edge LB7 EZ Module can mount on top of or to the side of the black plastic fuse box cover located on the driver’s side fender. Adhere the module using the supplied Velcro, allowing enough harness movement for removal of the cover. -
Page 9: Using The Power Edge Lb7 Ez
GM LB7 EZ Manual Using the Power Edge LB7 EZ Adjusting Power Levels The EZ has three power levels. The EZ module was designed to allow the user to select any of the three power levels on the fly with the supplied three position switch. -
Page 10: Power Gains
Edge Products, LLC Power Gains The following power gains are representative of an actual test vehicle. These gains were measured on a Super Flow Dyno at an altitude of 4400 ft above sea level, and represent power delivered to the rear wheels of the test truck. The only modification made to the test truck was the addition of the Power Edge EZ module. -
Page 11: Making Sense Of It All
GM LB7 EZ Manual Edge Products, LLC Making Sense of it All This section is designed to help you understand how the additional power will change your driving experience as well as help you figure out what power level will best suit your driving style. The first thing you will probably notice is improved performance, especially if this is your first time driving a diesel truck with a performance module, You will experience more power, better throttle response, better passing and... - Page 12 Edge Products, LLC GM LB7 EZ Manual As you drive your truck in the various power settings, keep your eye on the EGTs. Depending on how you drive and where you drive, you may find a particular power level is more suitable to your power needs. The EZ Module and your Transmission The automatic transmission has a fluid-filled clutch-like device called a torque converter.
-
Page 13: Transmission Relearning
GM LB7 EZ Manual Edge Products, LLC Transmission Relearning The Allison transmission is a “Smart” transmission. That means that it pays attention to how smoothly the transmission is changing gears, and modifies the shifting to improve drivability. When the motor delivers more power (by adding the EZ module), the transmission has to ‘re-learn’... -
Page 14: All Rights Reserved
Edge Products, LLC Index About the Juice _____________ 6 Connecting the harness _______ 8 Disclaimer _________________ 4 Horsepower gains __________ 10 Juice Adjusting Power Levels __ 9 Juice features _______________ 6 Juice final inspection _________ 8 Juice getting connected _______ 7 Juice picture ________________ 7 Juice Power Level Confirmation 9 Making Sense of it all ________ 11...
