INSTRUCTION SUPPLEMENT FOR
2004-Later Yamaha Rhino 660
Removing stock carburetor and cables
1. Remove engine cover and tunnel
(center of floor board).
2. Remove throttle cable from throttle
pedal and chassis. See fig 1.
3. Remove choke cable from dash.
See figure 2.

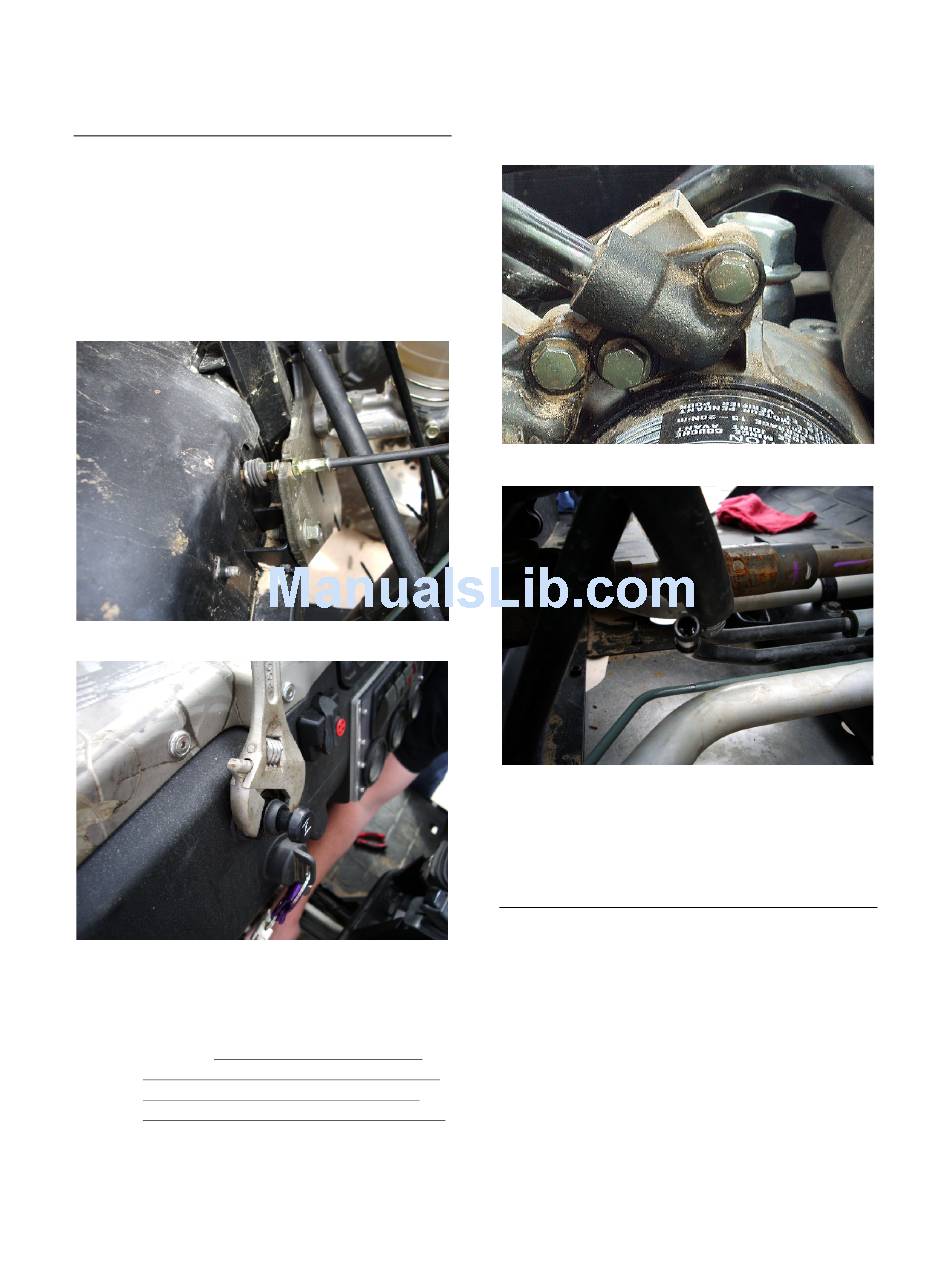

Figure 1. Throttle cable
Figure 2. Choke cable
4. Remove stock carburetor, cables
and all vent hoses attached to
carburetor. NOTE: Carburetor can
be removed without disconnecting
cables. Unplug black and yellow
wires from carb and tape ends with
electrical tape as they will not be
used with the Edelbrock carburetor.
5. Stuff a dry, clean rag into the
intake manifold to keep debris from
entering engine.
6. Remove oil line directly above oil
filter. See fig 3. Disconnect rubber
hose at bottom where it connects
to hard tube. See fig 4.
NOTE: Clean oil and dirt off of flange and
case before removing oil line.
Figure 3.
Figure 4.
7. Remove stock fuel line from fuel
pump. Save insulating material as
it will be reused on new fuel line.
Installing the Edelbrock Carburetor
1. Attach new fuel line to fuel pump
reusing stock clamp and insulating
material.
2. Install new throttle cable into bracket
and throttle pedal. Do not route
throttle cable in stock position. Cable
will need to be routed to passenger
side of vehicle. See figure 5 for cable
routing.
NOTE: Apply a small amount of grease to
O-ring on pedal end of cable for easier
installation into throttle pedal.
Figure 5.

Advertisement

   Also See for Yamaha Yamaha Rhino 660

   Summary of Contents for Yamaha Yamaha Rhino 660

  • Page 1 INSTRUCTION SUPPLEMENT FOR 2004-Later Yamaha Rhino 660 Removing stock carburetor and cables 1. Remove engine cover and tunnel (center of floor board). 2. Remove throttle cable from throttle pedal and chassis. See fig 1. 3. Remove choke cable from dash.
  • Page 2 4. Attach fuel line onto fuel inlet banjo and secure with stock pinch clamp. Fuel line may need to be trimmed to proper length. 5. Place Edelbrock carburetor into manifold. Do not tighten clamp yet. 6. Remove the cable bracket end from cable bracket using #2 phillips.
  • Page 3 Cold starts will require 2-3 pumps of the throttle pedal to activate the accelerator pump. For any questions regarding tuning or installation of Edelbrock products, please call our toll free tech line M-F 8:00am-12: 30pm, 1:30pm-5:00pm PST. 877-888-7504 ext.2.
