Edelbrock Victor Jr. 70067 Instructions

2-STAGE VICTOR JR.
UPGRADE KIT
(P/N 70067-70068)
1st Stage Fuel Jet #1
Front of Engine
2nd Stage
Nitrous
Jet #2
1st Stage Bar
2nd Stage
2nd Stage Bar
Fuel Jet #2
1st Stage Nitrous Jet #2
15
4
Important: The wiring hardware and instructions included with this kit are intended for 12-volt electrical systems only. Before
attempting to wire your Edelbrock Performer nitrous oxide system, examine and follow the wiring diagram on the following page.
Please call the Edelbrock Technical department with any questions concerning electrical wiring.
©2008 Edelbrock Corporation
Brochure #63-70067
HP Gain N2O Jet Fuel Jet Timing Adj.
100hp
35
150hp
50
200hp
59
250hp
68
HP Gain N2O Jet Fuel Jet Timing Adj.
100hp
35
150hp
48
200hp
57
250hp
66
1st Stage Nitrous Jet #1
1st Stage Fuel Jet #2

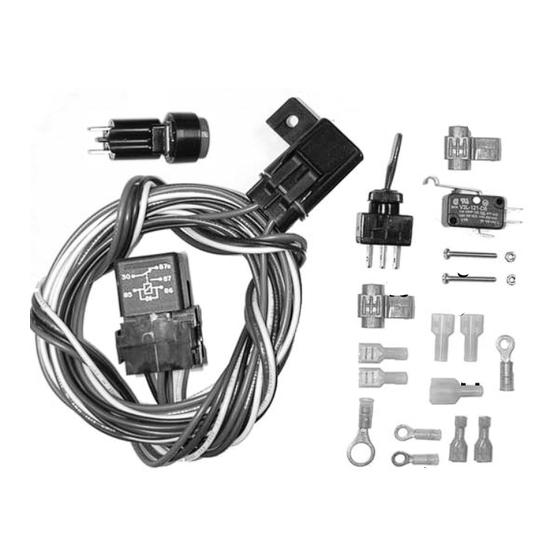

ELECTRICAL COMPONENTS BILL OF MATERIAL
6
10
5
8
11
12
Dominator-Flange 2-Stage Jet Map
1st Stage
HP Gain N2O Jet Fuel Jet
35 3°-5° Retard
50 5°-7° Retard
59 7°-9° Retard
68 9°-11° Retard
Square-Flange 2-Stage Jet Map
1st Stage
HP Gain N2O Jet Fuel Jet
35 3°-5° Retard
48 5°-7° Retard
57 7°-9° Retard
66 9°-11° Retard
Dyno testing was conducted using a mildly modified 500ci engine.
Modifications included an Edelbrock intake manifold, dyno headers and
improved ignition. These tests were conducted using 950 psi of bottle
pressure and 6.5 psi of fuel pressure. Suggested timing is just a guide-
line, engine component modifications may affect final timing set point.
2nd Stage
Edelbrock suggests an NGK spark plug with a heat range between -9 and
Fuel Jet #1
-11 as well as 110 octane or higher race fuel.
The Victor Jr. Series Nitrous Systems are intended for use with
single plain intake manifolds only.
Your upgrade kit comes supplied with longer 6AN lines to split from the
feed line to the solenoids, and longer lines to extend from the solenoids to
2nd Stage
Nitrous the plate.
Jet #1
Note: It is important to route the 3AN to 4AN hoses to jet fittings in such
a manner that the 1st stage jetting feeds a spray bar from opposing ends
of the plate while the 2nd stage jetting feeds from opposing ends of the
plate 90 degrees apart from the 1st stage. See the diagram at left for a
sample recommended installation.
Item # Quantity
1
10
2
3
1
4
5
6
2
3
7
8
9
9
10
13
14
11
12
13
7
14
15
Page 1 of 2
2nd Stage
100hp 35 35
150hp 50 50
200hp 59 59
250hp 68 68
2nd Stage
100hp 35 35
150hp 48 48
200hp 57 57
250hp 66 66
Description
1 Activation Micro Switch
2 Activation Micro Switch Mounting Nut
2 Activation Micro Switch Mounting Bolt
1 30 amp Relay
1 Wire Harness with Integral Relay/Fuse Holder
1 Red Lighted Toggle Switch
2 18/22g Female Spade Connector
2 14/16g Female Spade Connector
2 14/16g Male Spade Connector
2 16/18g Splice Connector
1 3/8" Ring Terminal
2 18/22g Ring Terminal #8 Stud
1 18/22g Ring Terminal #10 Stud
1 14/16g Male Spade Connector
1 Pushbutton
Final Timing
Total Gain Timing Adj.
200hp 7°-9° Retard
300hp 11°-13° Retard
400hp 15°-17° Retard
500hp 19°-21° Retard
Final Timing
Total Gain Timing Adj.
200hp 7°-9° Retard
300hp 11°-13° Retard
400hp 15°-17° Retard
500hp 19°-21° Retard
Catalog #70067 & 70068
