Split-type room air conditioner (cool)
Hide thumbs Also See for AS09P8GB:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Training Manual
Aire acondicionado doméstico sistema Split
Condizionatore d'aria per ambienti ad unità Separate
Aparelho de ar condicionado tipo Split
E S F I P D G DB98-14367A(1)

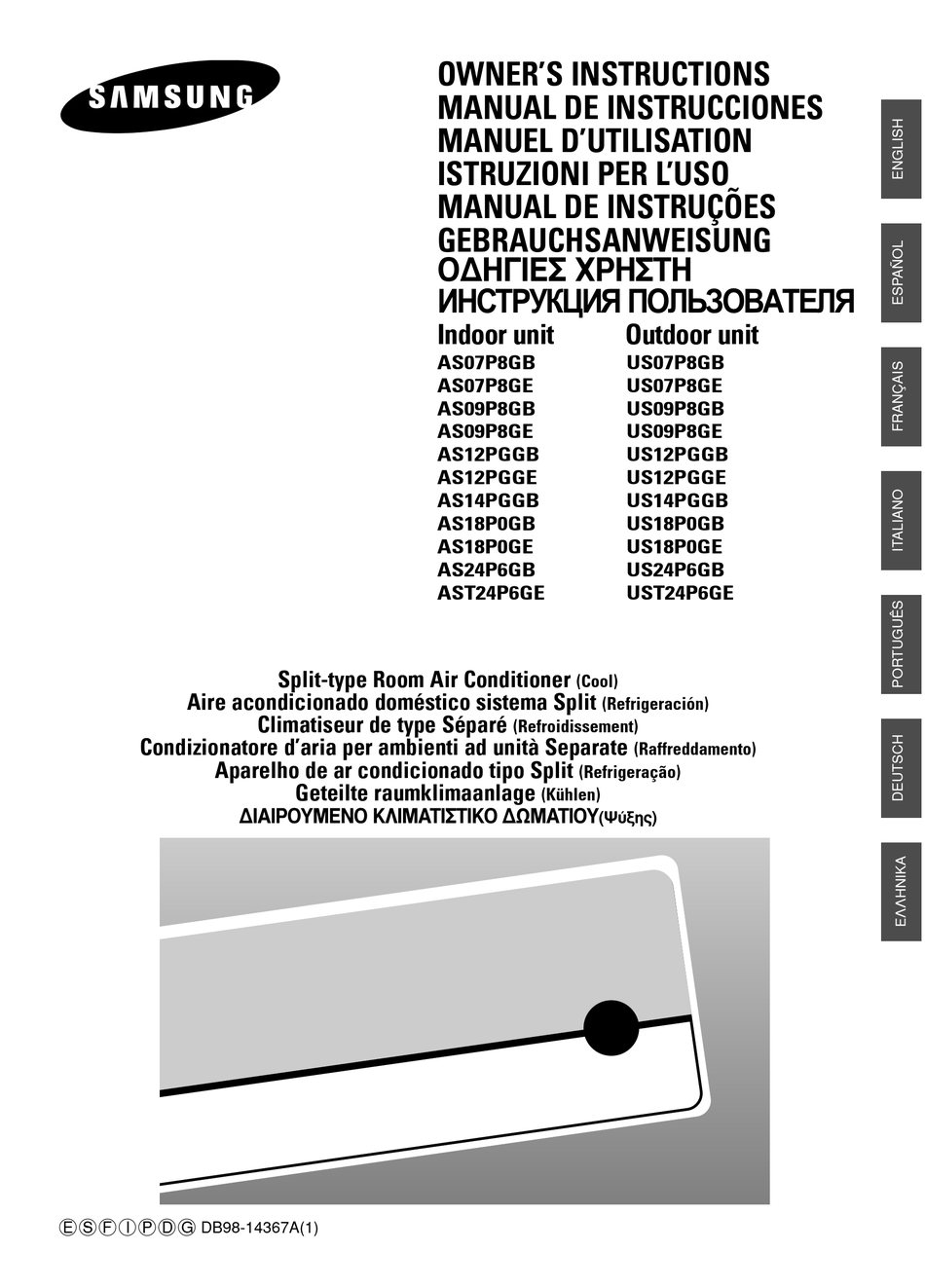

Split-type Room Air Conditioner
Climatiseur de type Séparé
Geteilte raumklimaanlage
OWNER'S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D'UTILISATION
ISTRUZIONI PER L'USO
MANUAL DE INSTRUÇÕES
GEBRAUCHSANWEISUNG
àçëíêìäñàü èéãúáéÇÄíÖãü
Indoor unit
AS07P8GB
AS07P8GE
AS09P8GB
AS09P8GE
AS12PGGB
AS12PGGE
AS14PGGB
AS18P0GB
AS18P0GE
AS24P6GB
AST24P6GE
(Cool)
(Refrigeración)
(Refroidissement)
(Refrigeração)
(Kühlen)
Outdoor unit
US07P8GB
US07P8GE
US09P8GB
US09P8GE
US12PGGB
US12PGGE
US14PGGB
US18P0GB
US18P0GE
US24P6GB
UST24P6GE
(Raffreddamento)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS09P8GB and is the answer not in the manual?

Questions and answers

Related Manuals for Samsung AS09P8GB

Summary of Contents for Samsung AS09P8GB

  • Page 1 OWNER’S INSTRUCTIONS MANUAL DE INSTRUCCIONES MANUEL D’UTILISATION ISTRUZIONI PER L’USO MANUAL DE INSTRUÇÕES GEBRAUCHSANWEISUNG àçëíêìäñàü èéãúáéÇÄíÖãü Indoor unit Outdoor unit AS07P8GB US07P8GB AS07P8GE US07P8GE AS09P8GB US09P8GB AS09P8GE US09P8GE AS12PGGB US12PGGB AS12PGGE US12PGGE AS14PGGB US14PGGB AS18P0GB US18P0GB AS18P0GE US18P0GE AS24P6GB US24P6GB AST24P6GE UST24P6GE Split-type Room Air Conditioner...

  • Page 2: N Preparing Your Air Conditioner I Safety Precautions

    Safety Precautions N If the power supply cord of this air conditioner is damaged, it must WARNING be replaced by the manufacturer or its authorized service personnel only in order to avoid a safety hazard. N Do not attempt to install the air conditioner by yourself. DANGER N This unit contains no user-serviceable parts.

  • Page 3: Table Of Contents

    Contents REPARING YOUR AIR CONDITIONER Safety Precautions ........View of the Unit .

  • Page 4: View Of The Unit

    View of the Unit The design and shape are subject to change according to the model. Indoor Unit Room temperature sensor Air Inlet Auto grille On/Off switch Air filter Remote Control Sensor (under the grille) Air flow blades (outlet) Operation indicator Set temperature &...
  • Page 5 Outdoor Unit US07P8GB US07P8GE US09P8GB US09P8GE Air Inlet(Rear) Air Outlet Connection Valve (inside) Outdoor Unit US12PGGB US12PGGE US14PGGB Air Inlet(Rear) Air Outlet Connection Valve (inside) Outdoor Unit US18P0GB US18P0GE US24P6GB UST24P6GE Air Inlet(Rear) Air Outlet Connection Valve...

  • Page 6: Remote Control-Buttons And Display

    Remote Control - Buttons and Display Operating mode AUTO, COOL, Remote control DRY, FAN) transmission indicator Battery discharge indicator Turbo mode Fan speed Temperature setting Air Cleaning indicator Air flow direction Sleep mode Off Timer setting On Timer setting Energy saving On/Off button Digital On/Off button...

  • Page 7: Getting Started

    etting Started You have just purchased a split type air conditioner and it has been installed by your installation specialist. Your Owner’s Instructions contains valuable information on using your air conditioner. Please take the time to read it as it will help you take full advantage of the unit’s features.

  • Page 8: Inserting The Remote Control Batteries

    Inserting the Remote Control Batteries You must insert or replace the remote control batteries when : N You purchase the air conditioner N The remote control does not work correctly N Use two AAA, LR03 1.5V batteries. N Do not use old batteries or different kinds of batteries together. N Batteries may be completely discharged after 12 months, even if they have not actually been used.

  • Page 9: Selecting The Automatic Operating Mode

    Selecting the Automatic Operating Mode You can start the air conditioner in Automatic mode from your remote control. In the Automatic mode, the optimum temperature and the fan speed is selected automatically. If necessary, press the (On/Off) button. N The operation indicator on the indoor unit lights up. Result: N The air conditioner starts up in the mode selected when the unit was last used.

  • Page 10: Cooling Your Room

    Cooling Your Room You must select the Cool mode if you wish to adjust the: N Cooling temperature N Fan speed when cooling If necessary, press the (On/Off) button. N The operation indicator on the indoor unit lights up. Result: N The air conditioner starts up in the mode selected when the unit was last used.

  • Page 11: Changing The Room Temperature Quickly

    Changing the Room Temperature Quickly The Turbo cooling function is used to cool your room as quickly as possible. You have just come home and find that the room is very hot. You wish to cool it down as quickly as possible. The Turbo function operates for 30 minutes with the maximum settings before returning automatically to the mode and temperature previously selected.

  • Page 12: Removing Excess Humidity

    Removing Excess Humidity If the atmosphere in your room is very humid or damp, you can remove excess humidity without lowering the room temperature too much. If necessary, press the (On/Off) button. N The operation indicator on the indoor unit lights up. Result: N The air conditioner starts up in the mode selected when the unit was last used.

  • Page 13: Airing Your Room

    Airing Your Room If the atmosphere in your room is stale, you can air the room using the Fan feature. If necessary, press the (On/Off) button. N The operation indicator on the indoor unit lights up. Result: N The air conditioner starts up in the mode selected when the unit was last used.

  • Page 14: Selecting Energy Saving Mode

    Selecting Energy Saving Mode If you wish to save energy when using your air conditioner, select the Energy saving mode with the Energy saving button. If necessary, press the (On/Off) button. N The operation indicator on the indoor unit lights up. Result: N The air conditioner starts up in the mode selected when the unit was last used.

  • Page 15: Air Cleaning (Titanium Filter Operating)

    Air Cleaning (Titanium Filter Operating) Titanium Filter removes microscopic dirt and unpleasant odors. Since it is an additional function, you can select it any mode, even when the air conditioner is turned off. Press the button. N The air conditioner run in the air cleaning mode. Result: N The indoor unit beeps.

  • Page 16: Adjusting The Air Flow Direction Vertically

    Adjusting the Air Flow Direction Vertically Depending on the position of the indoor unit on the wall of your room, you can adjust the position of the outer air flow blade on the bottom of the unit, thus increasing the efficiency of the air conditioner. Press the button one or more times as required.

  • Page 17: Adjusting The Air Flow Direction Horizontally

    Adjusting the Air Flow Direction Horizontally There are two sets of inner air flow blades. Just as the outer air flow blade can be adjusted vertically, the inner blades can be adjusted horizontally. Adjust each set of inner blades to the required position, by pushing or pulling them sideways.

  • Page 18: Setting The On Timer

    Setting the On Timer The On Timer enables you to switch on the air conditioner automatically after a given period of time. You can set the period of time from 30 minutes to 24 hours. To set the operating time, press the button one or more times until the required time is displayed.

  • Page 19: Setting The Off Timer

    Setting the Off Timer The Off Timer enables you to switch off the air conditioner automatically after a given period of time. You can set the period of time from 30 minutes to 24 hours. To set the operating time, press the button one or more times until the required time is displayed.

  • Page 20: Setting The Sleep Timer

    Setting the Sleep Timer The Sleep Timer can be used when you are cooling your room to switch the air conditioner off automatically after a period of six hours. If you wish to switch the unit off at a specific time, refer to page 19.

  • Page 21: Operating Recommendations

    Operating Recommendations Here are a few recommendations that you should follow when using your air conditioner. Topic Recommendation Power failure If a power failure occurs when the air conditioner is operating, the unit is switched off. When the power returns, the air conditioner starts up again automatically.

  • Page 22: Temperature And Humidity Ranges

    Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges within which the air conditioner can be used. If the air conditioner is used at... Then... High temperatures The automatic protection feature may be triggered and the air conditioner stopped. Low temperatures A water leak or some other malfunction may occur if the heat exchanger freezes.

  • Page 23: Solving Common Problems

    Solving Common Problems Before contacting the after-sales service, perform the following simple checks. They may save you the time and expense of an unnecessary call. Problem Explanation/Solution N Check that the breaker used for the air conditioner is switched on. The air conditioner does not N Check that the operation indicator on the indoor unit is on;...

  • Page 24: Cleaning Your Air Conditioner

    Cleaning Your Air Conditioner To get the best possible use out of your air conditioner, you must clean it regularly to remove the dust that accumulates on the air filter. Before cleaning your air conditioner, ensure that you IMPORTANT have switched off the breaker used for the unit. Slide the lower front grille down.

  • Page 25: Technical Specifications

    Technical Specifications Model Indoor unit Power Supply AS07P8GB AS09P8GB AS12PGGB 220V~, 60Hz AS14PGGB AS18P0GB AS24P6GB AS07P8GE AS09P8GE AS12PGGE 220-240V~, 50Hz AS18P0GE AST24P6GE...
  • Page 26 THIS AIR CONDITIONER IS MANUFACTURED BY: ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR: CE CLIMATISEUR EST FABRIQUE PAR: QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA: ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR: DIESE KLIMAANLAGE IST FABRIZIERT VON: ùíéí äéçÑàñàéçÖê àáÉéíéÇãÖç îàêåéâ:...

This manual is also suitable for:
