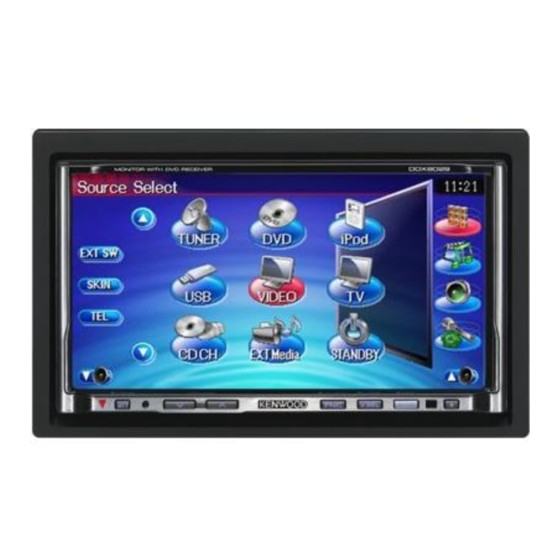

MONITOR WITH DVD RECEIVER
DDX8029

INSTRUCTION MANUAL

VIDEO
AUDIO
/
© B64-3658-00/00 (EV/E2V)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDX8029 and is the answer not in the manual?

Questions and answers

Related Manuals for Kenwood DDX8029

Summary of Contents for Kenwood DDX8029

  • Page 1: Instruction Manual

    MONITOR WITH DVD RECEIVER DDX8029 INSTRUCTION MANUAL VIDEO AUDIO © B64-3658-00/00 (EV/E2V)

  • Page 2: Table Of Contents

    Contents Basic Operations How to read this manual Safety precautions Notes Watching DVD/VCD & iPod Control DVD Audio Listening Connecting an iPod Functions when Displaying Functions During the Playback Screen the Easy Control Panel Functions When Displaying the Easy Control Panel Functions while displaying the Control Screen Functions While Displaying...
  • Page 3 Source Select Screen Control Displaying the Control Screen Screen Control External Device Power Supply Control 54 External Device Power Supply Control Hands Free Unit Control Control Screen Function When Called Muting Audio Volume When Dialing upon Reception of Phone call Quick Dialing Muting Audio Volume upon Reception of Calling by Phone Book...

  • Page 4: How To Read This Manual

    How to read this manual This manual uses illustrations to explain its operations. Seek mode Sets a station selection. The displays and panels shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual displays or panels used, or some display patterns may be different.
  • Page 5 English...

  • Page 6: Safety Precautions

    • To prevent a short circuit, never put or leave any Refer to the catalog or consult your Kenwood dealer metallic objects (such as coins or metal tools) inside for connectable models of disc changers/ CD players.

  • Page 7: Notes

    • When you purchase optional accessories, check mechanical parts. Wiping the faceplate with a hard cloth with your Kenwood dealer to make sure that they or using a volatile liquid such as thinner or alcohol may work with your model and in your area.
  • Page 8 Notes Handling CDs List of playable discs Disc Standard Support Remark • Do not touch the recording surface of the CD. types • Do not stick tape etc. on the CD, or use a CD with ‡ DVD Video tape stuck on it. ‡...

  • Page 9: Region Codes In World

    Region codes in the world The DVD players are given a region code according to the country or area it is marketed, as shown in the following map. DVD disc marks Operation regulatory marks With this DVD, some functions of this unit such as the Symbol Description play function may be restricted depending on the...
  • Page 10 Maximum number of directory levels: 8 • For the supported formats and types of USB device, refer to Maximum number of folders: 254 www.kenwood.com/usb/. Maximum number of files per folder: 255 • Attach the correct extension for the Audio file (AAC: ".M4A", Maximum number of files per playlist: 7000 (USB MP3: ".MP3", WMA: ".WMA")
  • Page 11 • Using an unsupported USB device can result in abnormal prevent you from driving your vehicle properly. playback or display of the audio file. • You cannot connect a USB device via a USB hub. Even if you use the USB device conforming to the above •...

  • Page 12: Basic Operations

    Basic Operations Attenuates the volume Turns power ON/OFF Press the button to turn on the power. Press it again to cancel muting. When the button is pressed and held down for 1 second or more, the power is turned off. Listening the traffic information Press it for more than 1 second to turn the Traffic Information function On or Off.
  • Page 13 Playing a USB device When connecting a USB device, playback starts automatically. Remove the USB device Press on the USB control screen to enter the USB suspend mode, and then remove the USB device. Refer to <USB Device Control> (page 40). ¤...
  • Page 14 Basic Operations Switches the video source The video source switches in the following order each time you press the button. Built-in Disc Player Video iPod Rear View Camera Navigation You can also turn off the video display by pressing the button longer than 1 second. When you press the button again, the previous video display comes back on.
  • Page 15 Switches the audio source The audio source is switched in the following order each time you press the button. Receives FM/AM broadcast. (page 31) TUNER Build-in Disc Player USB device iPod VIDEO iPod Plays back the disc inserted in an external player, such as a CD changer (optional accessory). External Disc Player (page 22) Outputs a sound signal input to the external AUX terminal (optional accessory).

  • Page 16: Watching Dvd/Vcd & Dvd Audio Listening

    Watching DVD/VCD & DVD Audio Listening You can play DVD/VCD using various functions. • For the basic method of how to watch DVD/VCD, refer to <Basic Operations> (page 12). • Set the remote controller mode switch to "DVD" mode before starting operation, refer to <Remote Controller mode switch> (page 90).

  • Page 17: Functions When Displaying The Easy Control Panel

    Functions When Displaying the Easy VCD playback screen Control Panel DVD VCD Scene P 0 : 0 5 Mode:Full AV–OUT:AV–IN1 Displays a floating control panel in the screen. DVD VIDEO Title C h a p T 0 : 0 0 : 0 5 Mode:Full AV–OUT:AV–IN1 DVD VCD...

  • Page 18: Functions While Displaying The Control Screen

    Watching DVD/VCD & DVD Audio Listening Functions While Displaying the Control When playing DVD Audio Screen Switches to control screen to use various playback functions. DVD VIDEO Title C h a p T 0 : 0 0 : 0 5 Mode:Full AV–OUT:AV–IN1 When playing a VCD...

  • Page 19: Dvd Disc Menu

    r Volume Label Display DVD Disc Menu When is appeared, the text display is Selects an option from the DVD Disc Menu. scrolled by pressing it. t Function Indicator Display the Disc Menu Control screen y Appears when a disc is inserted. u Turns the PBC function of VCD On or Off.
  • Page 20 Watching DVD/VCD & DVD Audio Listening Zoom Control H i g h l i g h t M e n u C t r l M e n u C t r l S U B Audio 1 / 2 1 / 2 Z o om Z o om...

  • Page 21: Vcd Zoom Control

    VCD Zoom Control Direct Search Displays an enlarged VCD screen. You can search for a DVD/VCD chapter, scene or track by entering its number. Display the Zoom Control screen Select the Direct Search mode DVD VCD Scene P 0 : 0 5 Mode:Full AV–OUT:AV–IN1 R.VOL...

  • Page 22: Music Disc & Audio File Listening

    Music Disc & Audio File Listening You can recall various control screens during CD/Audio file/Disc Changer playback. • For the basic method of how to play a music disc/audio file, refer to <Basic Operations> (page 12). • Refer to <List of playable discs> (page 8) for playable discs. •...

  • Page 23: Functions While Displaying The Control Screen

    Functions While Displaying the Control 8 Starts or stops Scan Play (that plays the Screen beginning of each music one after the other). Switches to control screen to use various playback 9 Repeats to play (the present track). functions. p Starts or stops Random Play (to play music in random order).
  • Page 24 Music Disc & Audio File Listening , You can search for folders and Audio files During Audio file playback through a hierarchy. See <Folder Select (Function of Audio File)> (page 26). . Displays music information (such as Tag and content property) of Audio file being played.
  • Page 25 During playback on disc changer J Sets a name to the disc being played. (page 26) K Displays a list of discs in the Disc changer and allows you to select the disc to listen. See <Disc Select> (page 27). Q Music information display L Displays the external device control Selects the Disc Name (see <Set Disc...

  • Page 26: Set Disc Name

    Music Disc & Audio File Listening Set Disc Name Folder Select (Function of Audio File) Assigns a name to a CD. Searches folders and Audio files stored in media and devices according to hierarchy. Play a CD you wish to name Start Folder Select Start Name set Selects a song...

  • Page 27: Disc Select (Function Of Disc Changer)

    Disc Select (Function of Disc Changer) Enter a track number Displays a list of discs in the Disc changer and 2 ZONE allows you to select the disc to listen. R.VOL PQRS WXYZ CLEAR DIRECT Start Direct Select Search When searching for a track: DISP V.SEL ZOOM...

  • Page 28: Video File/Picture File Watching

    Video File/Picture File Watching You can recall various control screens during playback of video file (MPEG 1, MPEG 2 and DivX file) and picture file (JPEG file). Functions When Displaying the Easy Function During Playback Screen Control Panel Basic functions are available even when the playback screen is displayed.

  • Page 29: Functions While Displaying The Control Screen

    Functions While Displaying the Control p Repeats to play (the preset files or data). q Starts or stops Random Play (to play files of Screen the present folder in random order). Switches to control screen to use various playback w Switches the number of lines displayed in functions.

  • Page 30: Picture Control

    Video File/Picture File Watching Picture Control Folder Select Adjusting the video display. Searches folders and Video files/Pictures stored in media and devices according to hierarchy. Starts Picture Control Start Folder Select DVD ME D I A 2 5 5 PICTURE Mode : F u l l A V-OUT:...

  • Page 31: Radio Listening

    Radio Listening Various control screens appear in the Tuner Source mode. • For the basic method of receiver button operations, refer to <Basic Operations> (page 12). • Set the remote controller mode switch to "AUD" mode before starting operation, refer to <Remote Controller mode switch> (page 90).

  • Page 32: Seek Mode

    Radio Listening 6 Switches the button display. Seek Mode 7 Selects the Monaural reception mode. (Only Sets a station selection. when receiving the FM broadcast) 8 Selects the Auto Memory mode. (Refer to page 33 for the <Auto Memory>) 9 Switches the Seek Mode. (Refer to page 32 for the <Seek Mode>) p Switches the number of lines displayed in the Information Display.

  • Page 33: Auto Memory

    : Press for # seconds. Auto Memory Manual Memory Stores stations with good reception in memory Stores the current receiving station in memory. automatically. Select a station you wish to store in Select a band you wish to store in memory memory Select the Auto Memory mode Store in memory...

  • Page 34: Preset Select

    Radio Listening Preset Select Radio Text Lists and selects memorized station. You can display the radio text. (Only when receiving the FM broadcast) Start Preset Select Select a station Display the radio text Selects a station 1 Scrolls the list. 2 Memorized stations are displayed.

  • Page 35: Direct Search

    Direct Search Traffic Information Tunes in a station when its frequency is entered. When a traffic bulletin starts, any source is switched to the traffic information and it is Select a band displayed automatically. AV OUT OPEN SUBTITLE VIEW MAP DIR Set the Traffice information mode ANGLE FM +...

  • Page 36: Search For Program Type

    Radio Listening Search for Program Type A program is tuned when you set its program type. (Only when receiving the FM broadcast) Enter Program Type mode Select a Program Type 1 Program Type is displayed. Touch to select a Program Type. 2 Scrolls the Program Type list.

  • Page 37: Ipod Control

    • If the played song is not a video content, "No iPod Video ⁄ Signal" is displayed on the video screen. • While connecting an iPod, "KENWOOD" appears on the • The Easy Control Panel display is hidden when you touch iPod and the iPod's control is disabled.

  • Page 38: Functions While Displaying The Control Screen

    iPod Control Functions while displaying the Control 6 Starts or stops Scan Play (that plays the Screen beginning of each music or video one after the other). Switches to control screen to use various playback 7 Repeats to play (the preset files or data). functions.

  • Page 39: Ipod List

    iPod List Lists and searches music/video contained in the iPod. Display the iPod List Select music/video 1 Switches list page. 2 Categories and music are listed. Touch a category name to move its lower level. If music title is displayed, the music is played by touching it.

  • Page 40: Usb Device Control

    USB Device Control You can control and listen to songs in your USB device by simply connecting it to the USB connector of this unit. • For the connection of a USB device, refer to <Basic Operations> (page 12). Functions when Displaying the Easy Functions while displaying the Control Control Panel Screen...

  • Page 41: Usb List

    5 Plays or pauses. USB List 6 Switches the button display. Lists and searches music contained in the USB 7 Starts or stops Scan Play (that plays the device. beginning of each music one after the other). Display the Category List 8 Repeats to play (the present music).

  • Page 42: Folder Select

    USB Device Control Folder Select Searches folders and Audio files stored in the USB device according to hierarchy. Start Folder Select Selects a song 1 Scrolls the list. 2 Lists folders and Audio files Folder opens when touched, and the Audio file is played.

  • Page 43: Tv Watching

    TV Watching Various control screens appear in the TV Source mode. (You can only operate TV with the optional accessory TV Tuner connected.) Functions When Displaying the Easy Functions During TV Screen Control Panel Basic functions are available even when the TV screen is displayed.

  • Page 44: Functions While Displaying The Control Screen

    TV Watching Functions While Displaying the Control 7 Indicates current Seek Mode. 8 TV Area Group Dispaly Screen Refer to <TV Setup> (page 81). Switches to control screen to use various playback 9 Memory Number Display functions. p Channel Number Display Group 1 Preset 1 2 c h...

  • Page 45: Auto Memory

    : Press for # seconds. Auto Memory Manual memory Stores stations with good reception in memory Stores the current receiving channel in memory. automatically. Select a station you wish to store in Select a band you wish to store in memory memory Select the Auto Memory mode Store in memory...

  • Page 46: Preset Select

    TV Watching Preset Select Set Station Name Lists and selects memorized station. Assigns a name to a station. Start Preset Select Select a station you wish to name Start Name set Selects a station Enter the name See <Character Entry> (page 56) for information on how to enter a name.

  • Page 47: Video Watching

    Video Watching Functions When Displaying the Easy Functions While Displaying the Control Control Panel Screen Displays a floating control panel in the screen. VIDEO VIDEO1 Mode : F u l l AV-OUT: AV - I N 1 VIDEO VIDEO1 Mode : F u l l AV-OUT: AV - I N 1...

  • Page 48: Dab Tuner Control

    DAB Tuner Control Various control screens appear in the DAB Tuner source mode. (with the optional accessory DAB tuner connected only) Functions When Displaying the Easy Functions While Displaying the Control Control Panel Screen Displays a floating control panel in the screen. Switches to control screen to use various functions.

  • Page 49: Seek Mode

    6 Selects the primary or secondary operation. Seek Mode 7 Selects the Auto memory mode. Sets a station selection mode. (page 50 for the <Auto Ensemble memory>) 8 Switches the Seek Mode. (page 49 for the <Seek Mode>) 9 Switches the number of lines displayed in the Information Display.

  • Page 50: Auto Ensemble Memory

    DAB Tuner Control Auto Ensemble Memory Service Preset Memory An ensemble with good reception is stored in The current receiving service is stored in memory. memory automatically. Select a service you wish to store in Select a band you wish to store in memory memory Select the Auto Memory mode Store in memory...

  • Page 51: Service Select

    : Press for # seconds. Service Select Language Filter Setting Listing and selecting service in the current Setting the menu language. ensemble. Start Language Filter Setting Start Service Select Select a language Select a serveice 1 Language display 1 Selects a service. 2 Switches language list.

  • Page 52: Search For Program Type

    DAB Tuner Control Search for Program Type DAB Announcement Specifying program type and searching service. When the Announcement you have turned on starts, any source is switched to the Start Program Type mode Announcement automatically. When the announcement starts... The Announcement screen appears automatically.

  • Page 53: Source Select

    Source Select The source you wish to listen to can be selected quickly. Displaying the Control Screen Display control screen Press several times until the Control Screen appears. Display source select screen Select a source 1 Switches to the selected source. 2 Scrolls the source display.

  • Page 54: External Device Power Supply Control

    External Device Power Supply Control Controlling the external device power supply. External Device Power Supply Control Controlling the external device power supply. Displays the EXT SW Control screen [EXT SW] appears when the control screen of each source or Easy control panel is displayed. Controls the external device power supply 1 You can turn on or off the external device power supply.

  • Page 55: Muting Audio Volume Upon Reception Of Phone Call

    Muting Audio Volume upon Reception of Phone call Muting Audio Volume upon Reception of Phone Call When the telephone is called, the system is paused automatically. When the telephone is called... The Phone Call ("CALL") screen appears, and system is paused. Phone Call ("CALL") screen If you want to continue to listen to the audio source during phone call...

  • Page 56: Character Entry

    Character Entry How To Use the Character Entry Screen When you select the Set Disc Name mode or others, the following screen appears for character entry. Character Entry screen 1 Shifts the cursor. 2 Enters a space. If you erase a character, locate the cursor on it and touch this button.

  • Page 57: Screen Control

    Screen Control ⁄ Screen Control • The Screen Control screen is displayed only when you Setting the monitor screen. have applied the parking brake. • The picture quality can be set for each source. Display Easy control panel • You can set image quality of screens such as menu from <Monitor Setup>...

  • Page 58: Hands Free Unit Control

    Hands Free Unit Control • You need to register your cell-phone to your Bluetooth Hands Free Box beforehand. Make sure to read the instruction manual of the Bluetooth Hands Free Box as well. Control Screen Function Displaying the control screen and using various functions.

  • Page 59: When Called

    ⁄ When Dialing • While your car is moving, some functions are disabled for Make a call by entering a phone number. safety’s sake. The buttons associated with the disabled functions become ineffective if pressed. Enter a phone number • When the Hands-Free Control screen appears, the name of the connected cell-phone is displayed for 5 seconds.

  • Page 60: Quick Dialing

    Hands Free Unit Control Quick Dialing Calling by Phone Book You can register up to 3 phone numbers for quick You can call a person using his/her phone dialing. number that you have registered in the Phone Book. To register a phone number: Display the Phone Book screen Display a phone number you wish to register...
  • Page 61 Phone Book List screen End the call 4 Scrolls the list. The previous screen reappears. ⁄ 5 Enters the destination name. 6 Cancels the operations. • To use the Phone Book, it must have been downloaded 7 Returns to the Hands-Free Control screen. from the cell-phone.

  • Page 62: Redialing

    Hands Free Unit Control Redialing Confirm the destination You can redial, one of the last 10 phone numbers that you have called or received. Display the Search for Out Going Calls or Incoming Calls screen The Hands-Free Control screen appears again. The selected destination data is displayed.

  • Page 63: Setting Up The Hands-Free Phone

    Setting up the Hands-Free Phone Selecting a Hands-Free Phone The Hands-Free system can be set as follows. You can choose the Hands-Free phone from the list. Display the Hands-Free Set Up screen Hands-Free Set Up screen Display the Phone Select list 1 Sets an automatic response time after call termination.

  • Page 64: Deleting The Hands-Free Phone

    Hands Free Unit Control ⁄ Deleting the Hands-Free Phone • The Phone Book, outgoing call list, and incoming call list You can cancel a registration of Hands-Free are deleted together with the deleted Hands-Free phone. phone. Display the Hands-Free Set Up screen Display the Phone Delete list Phone Delete screen 1 Selects the cell-phone to be deleted from...
  • Page 65 English...

  • Page 66: Setup Menu

    Setup Menu You can set up various receiver parameters. Setup Menu Audio Setup Displays the Setup Menu to set various functions. You can setup a speaker network, etc. Display the control screen Display the Audio SETUP screen Touch [Audio SETUP] in the SETUP Menu (page 66).

  • Page 67: Crossover Network Setup

    Crossover Network Setup DVD Setup You can set a crossover frequency of speakers. You can set up the DVD play. Select the speaker to set the crossover Display the DVD SETUP screen Touch [DVD SETUP] in the SETUP Menu (page 66). Setup each item 1 Sets the High Pass Filter of the front speaker.

  • Page 68: Language Setup

    Setup Menu q Switches Group Continuous On or Off. Off ) If "Off" is selected, the group playback is 6 Sets an angle mark display. ( stopped or menu screen is appeared at the 7 Selects the screen display mode.* 16:9) end of the group playback.

  • Page 69: Parental Level Setup

    Parental Level Setup Display the Language Setup screen Sets a parental level. Display the Parental Level code number screen 1 Enters a language code. 2 Cancels the language setup and returns to the DVD SETUP 1screen. 3 Sets the original audio language. Refer to <DVD Setup>...

  • Page 70: Divx Setup

    Setup Menu DivX Setup Display the Parental Level SETUP screen Checks the registration code. This code is needed when making a disc which has DRM (Digital Rights Management). Display the DivX SETUP screen Touch [DivX SETUP] in the SETUP Menu (page 66).

  • Page 71: Ipod Setup

    iPod Setup System Setup Performs setup when using iPod. You can set up the system parameters. Display the iPod SETUP screen Display the System SETUP screen Touch [iPod SETUP] in the SETUP Menu Touch [System SETUP] in the SETUP Menu (page 66).

  • Page 72: Av Interface Setup

    AV INPUT2 port. VIDEO2) 4 Selects a navigation system connection. RGB) "RGB": Allows the Kenwood’s Navigation 9 Selects speakers used for voice guidance of System to connect via its interface the navigation system. ( F-Left) cable.

  • Page 73: User Interface

    q Mutes the volume during voice guidance of User Interface the navigation system. ( You can set up user interface parameters. When turned "On", the volume level drops for voice guidance. Display the User Interface screen w Sets a selecting method of audio source Touch [User Interface] in the SETUP Menu from the Navigation system.( Off )
  • Page 74 Setup Menu "Manual": Information is displayed when you touch on the screen. w Sets an on-screen display of the TV screen. Auto) (with the optional accessory TV tuner connected only) "Auto": Information is displayed for 5 seconds when updated. "Manual": Information is displayed when you touch on the screen.

  • Page 75: Entering Background

    Entering Background Background Delete Loads images for background. Deletes the background image. Connect the device which has the image to Display Delete Image Select screen load Display the User Interface screen Select the image to be deleted Background Delete 10:10 Cancel Select the image to load Background Memory...

  • Page 76: Background Select

    Setup Menu Background Select Touch panel Adjustment Selects a image for background. You can adjust the touch panel operations. Select Background Select screen Display the Touch panel Adjustment screen Touch [Touch] in the SETUP Menu (page 66). Starts Touch panel setup Select a image for background Background Change 10:10...

  • Page 77: Clock Setup

    Clock Setup You can adjust the clock time. Display the Clock Setup screen Touch [Clock] in the SETUP Menu (page 66). Setup the Clock 1 Clock time display 2 Adjusts hours. 3 Adjusts minutes. 4 Sets "00" minute. Setup examples: 3:00~3:29 \ 3:00 3:30~3:59 \ 4:00 5 Sets the clock time in synchronization with the time data sent from the RDS station.

  • Page 78: Monitor Setup

    Setup Menu Monitor Setup You can adjust the position, picture quality and the screen mode of the monitor. Displaying the Monitor SETUP screen Touch [Monitor SETUP] in the SETUP Menu (page 66). Setup each item 8 Selects a screen mode of the iPod Video playback screen.
  • Page 79 r Selects a screen mode of the TV screen. You can select any of the following screen mode. "Full", "Just", "Zoom", "Normal" t Returns to the original screen. ⁄ • When you select the Menu, Easy Control screen, or Navigation, the display is shown in the full-size display mode automatically.

  • Page 80: Security Code Setup

    Setup Menu Security Code Setup Enter a security Code You can set a security code to protect your receiver system against theft. ⁄ • When the Security Code function is activated it cannot be released. Note, your Security Code is the 4 digit number entered in your "Car Audio Passport"...

  • Page 81: Tv Setup

    If you have pressed the Reset button or if TV Setup you have disconnected the Receiver from The TV signal receiving areas can be set. (with the battery... optional accessory TV Tuner connected only) Enter the correct security code Displaying TV SETUP screen Touch [TV SETUP] in the SETUP Menu (page 66).

  • Page 82: Rds Setup

    Setup Menu RDS Setup DAB Setup The related RDS parameters can be set. You can set the DAB reception. (only with the optional accessory DAB Tuner connected) Display RDS SETUP screen Display the DAB Setup screen Touch [RDS SETUP] in the SETUP Menu (page 66).

  • Page 83: Announcement Select

    Announcement Select AMP Control You can set various announcement reception Sets the power amp connected via the LX bus. parameters. (with the optional accessory LX Power Amp connected only) Display the Announcement screen Displaying the Amp Control screen See <DAB Setup> (page 82). Touch [Amp Control] in the SETUP Menu Set the announcement parameters (page 66).

  • Page 84: Setup Memory

    Setup Menu Setup Memory Audio Set Up and AV Interface settings can be memorized. The memorized settings can be recalled at any time. For example, even when the settings are cleared due to replacement of the battery, the settings can be restored. Display the SETUP Memory screen 4 Recalls the memorized settings.

  • Page 85: Ext Sw Setup

    2 Sets the power signal output mode. When clearing the currently memorized settings: EXT SW1: Pulse, EXT SW2: Level) Pulse: Generates a single power signal pulse. Level: Continues output of high power signal. Touching the screen displays a confirmation Sets to turn output on/off each time the message.

  • Page 86: Audio Control

    Audio Control Audio Control Menu Audio Control Displays the Audio Control menu to set the sound You can adjust the front/rear and right/left audio effect function of this unit. balance. Display the control screen Display Audio Control Press several times until the control screen appears.

  • Page 87: Equalizer Control

    Equalizer Control You can set up the equalizer. Display Equalizer Control 6 Adjusts the bass boost of the B.M.S power amplifier (optional accessory). 7 Sets the center frequency of bass boost you Touch [Equalizer] in the Audio Control Menu have set for "AMP Bass". (page 86).

  • Page 88: Tone Setup

    Audio Control Tone Setup Zone Control You can set a Tone curve. You can set the front and rear audio source. Display the Tone screen Display Zone Control See <Equalizer Control> (page 87). Touch [Zone Control] in the Audio Control Menu (page 86).
  • Page 89 ⁄ • When the rear speaker sound is switched, the audio source that is output at the AV OUTPUT terminal is also switched to the same source. However, if you have set the "Area" to "Reverse", the audio source that is output at the AV OUTPUT terminal is switched depending on the front sound source.

  • Page 90: Remote Controller

    Remote Controller This unit can be operated using the Remote Controller supplied with the unit. ¤ • Put the Remote Controller in a place where it will not move during braking or other operations. A dangerous situation could result, if the Remote Controller falls down and gets wedged under the pedals while driving. •...

  • Page 91: Common Operations (Aud Mode)

    Common operations (AUD mode) Display angle Switches the display angle each time it is pressed. Source switching NAVI Switches to the source to be played. MODE/TOP MENU FNC/MENU/PBC AUDIO RETURN ROUTEM VOICE CANCEL AV OUT OPEN SUBTITLE VIEW MAP DIR DISP ANGLE V.SEL...

  • Page 92: Dvd/Dvd Audio/Vcd/Cd/Audio Files (Dvd Mode)

    Remote Controller DVD/DVD Audio/VCD/CD/Audio files DVD Audio (DVD mode) Group number Track number Folder search Item number* Selects the folder to be played. Cancel ANGLE FM + * You may not be able to use this function with some discs ZOOM AM−...

  • Page 93: Tv (Tv Mode)

    TV (TV mode) DVD Top Menu Returns to the DVD top menu. Switching Band/Video ENTER • • Switches between the station of the TV band to NAVI MODE/TOP MENU FNC/MENU/PBC AUDIO RETURN receive and video input. ROUTEM VOICE CANCEL AV OUT OPEN SUBTITLE VIEW...

  • Page 94: Radio (Aud Mode)

    Remote Controller Radio (AUD mode) NAVI (NAVI mode) Band switching Joystick Switches to bands received by the unit. Scrolls the map, or moves the cursor. ZOOM ANGLE MENU POSITION FM + ZOOM • • ENTER AM− • 2 ZONE • NAVI AUDIO RETURN MODE/TOP MENU...
  • Page 95 ROUTEM Displays Route Option menu. • ENTER • • NAVI MODE/TOP MENU FNC/MENU/PBC AUDIO RETURN ROUTEM VOICE CANCEL AV OUT OPEN SUBTITLE VIEW MAP DIR ANGLE VIEW Switches between 2D and 3D map displays. NAVI AUDIO RETURN MODE/TOP MENU FNC/MENU/PBC ROUTEM VOICE CANCEL...

  • Page 96: Help? Troubleshooting

    Help? Troubleshooting Some functions of this unit may be disabled by What might seem to be a malfunction in your unit some settings made on this unit. may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems.

  • Page 97: Help? Error

    The disc player is malfunctioning. Remove the USB device. ➡ Eject the disc and try inserting it again. Contact Authorization Error: the Kenwood dealer if this indicator continues Connection to the iPod has failed. blinking or the disc cannot be ejected. ➡...

  • Page 98: Dvd Language Codes

    DVD language codes Code Language Code Language Code Language Afar Icelandic Singhalese Abkhazian Italian Slovak Afrikaans Japanese Slovenian Amharic Javanese Samoan Arabic Georgian Shona Assamese Kazakh Somali Aymara Greenlandic Albanian Azerbaijani Cambodian Serbian Bashkir Kannada Siswati Byelorussian Korean Sesotho Bulgarian Kashmiri Sundanese Bihari...
  • Page 99 English...

  • Page 100: Specifications

    Specifications Monitor section USB IF section Picture size USB Standard : 6.95 inches (diagonal) wide : USB 1.1 / 2.0 156.2 x 82.4 mm File System Display system : FAT 16/32 : Transparent TN LCD panel Maximum Power Supply Current Drive system : 500mA : TFT active matrix system...
  • Page 101 LW Tuner section Audio section Frequency Range (9 kHz) Maximum Power (Front&Rear) : 153kHz – 281kHz : 50W×4 Usable Sensitivity Full Bandwidth Power (Front&Rear) : 45μV (PWR DIN45324,+B=14.4v) : 30W×4 Preout level (V) MW Tuner section : 5V/10kΩ Preout impedance Frequency Range (9 kHz) : 80Ω...
  • Page 102 About DivX DivX is a popular media technology created by DivX, Inc. DivX media Files contain highly compressed video with high visual quality that maintains a relatively small file size. DivX files can also include advanced media features like menus, subtitles, and alternate audio tracks. Many DivX media files are available for download online, and you can create your own using your personal content and easy-to-use tools from DivX.com.
  • Page 103 The marking of products using lasers (Except for some areas) CLASS 1 LASER PRODUCT The label is attached to the chassis/case and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit.
