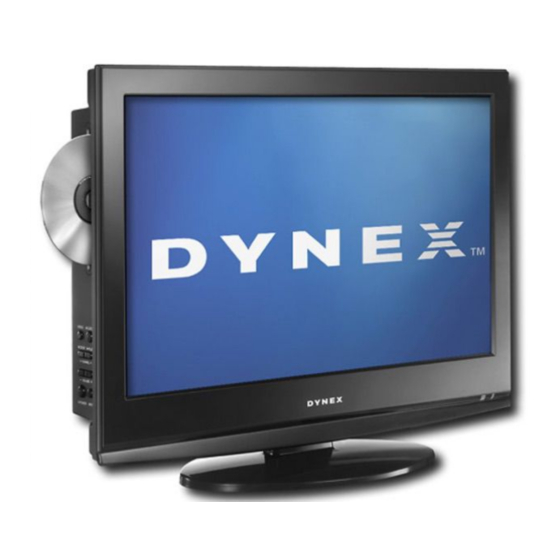

Dynex DX-24LD230A12 Quick Setup Manual

24" 1080p LCD TV/DVD Combo

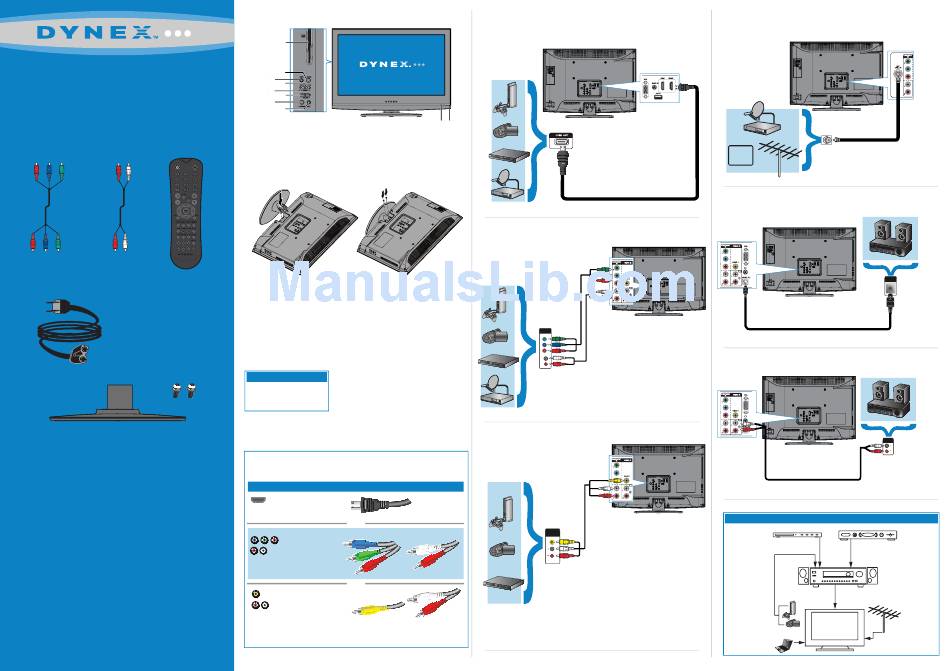

QUICK SETUP GUIDE

DX-24LD230A12
Component video cable Audio cable
Remote control
and
2 AAA batteries
AC power cord
TV stand and two M4 x L18 mm screws
WE ARE GOING GREEN!
A copy of your User Guide is not provided
in the box but is available online.
Go to www.dynexproducts.com, click
Support & Service, enter your model number
in the Product Search field, then click Search.

Front features

Disc slot
Eject
Menu
▲
Play / Channel
Stop / Channel ▼
Volume +/-
Power
Input
Remote control

Installing the stand

1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Secure the stand to the TV with the two provided screws.

Installing a wall-mount bracket

1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the two screws that secure the stand, then remove the stand.
3 Attach the wall-mount bracket to your TV using the mounting holes on the back
of your TV. See the instructions that came with the wall-mount bracket for
information about how to correctly hang your TV.
Warning
This apparatus is intended to
be supported by a UL Listed
wall mount bracket.

Identifying cables

Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Connection type Video quality Cable connector
HDMI video/audio Best
OR
Better
Component video
and analog audio
OR
Good
Composite video
and analog audio
You can use an HDMI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device's jack.
Connecting a DVD or Blu-ray DVD player,
cable box, satellite receiver or game station
Using HDMI (best)
Power
sensor indicator
Using component cables (better)
AUDIO/VIDEO
OUT
Using composite cables
(good)
AUDIO/VIDEO
OUT

Connecting an antenna/cable wall jack

Connect a coaxial cable (not included) to the ANT/CABLE IN jack on the back of
your TV and to the Antenna/Cable wall jack.
PC/DVI
CABLE

Connecting a Home Theater System

Using Digital audio
P B
P R
P
B
P
R
Using Analog audio
P
B
P
R
P B
P R
Connecting a home theater system with multiple devices
Blu-ray player/DVD player/VCR
Game console
or camera
Computer
P B
P R
OPTICAL
AUDIO IN
AUDIO IN
Cable or satellite TV box
AV receiver
Antenna or
cable TV
(no box)
