Dynex DX-19LD150A11 Quick Setup Manual

19"/22" LCD/DVD Combo TV

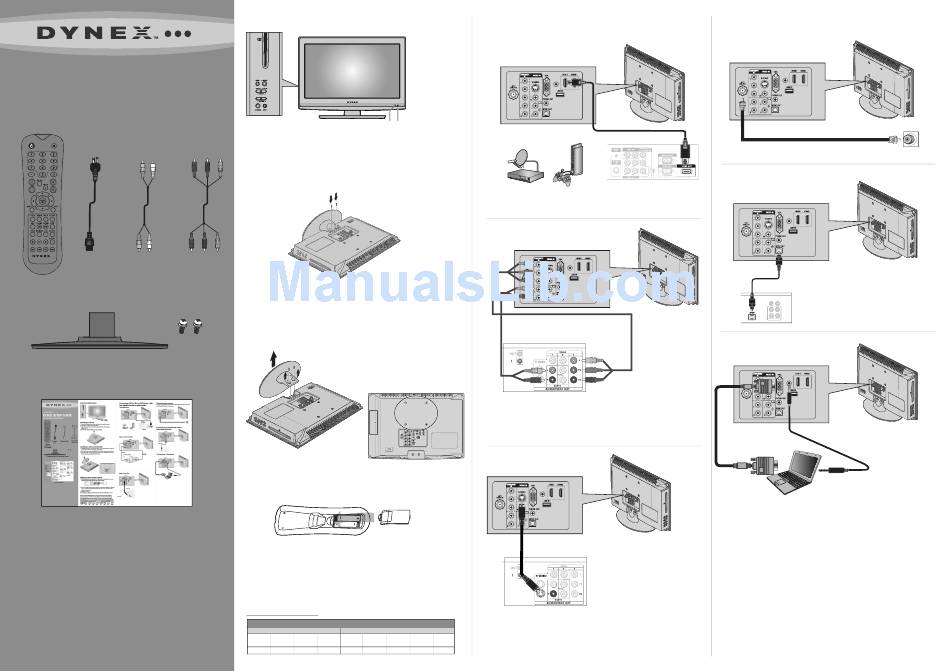

QUICK SETUP GUIDE

DX-19LD150A11/DX-22LD150A11
Component
AC power L/R Audio cable
video cable
cord
Remote control
and 2 AAA
batteries
TV stand and M4 x L18 mm screws
Quick Setup Guide
Front and side features
Remote control Power
sensor indicator
Installing the stand
1 Remove the stand from the box and place it on a table or bench.
2 Lay the TV on a flat, cushioned surface.
3 Align the screw holes on the stand with the holes on the bottom
edge of the TV.
4 Secure the stand with the two screws provided.
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the two screws holding the TV to its base, then remove the base.
3 Secure the wall-mount bracket to the back of your TV/DVD combo using
the four screws provided with the bracket.
Setting up your remote control
1 While pressing the release button on the battery compartment cover on
the back of the remote, lift the cover off the remote.
2 Insert two AAA batteries into the battery compartment. Make sure that the
+ and – symbols on the batteries align with the + and – symbols in the
battery compartment.
3 Replace the cover.
To program your existing universal remote control to work with your new
Dynex TV, see the table below for common codes. If you have problems
programming your remote or need a different remote control code, visit
www.dynexproducts.com for the latest remote control code information.
Universal remote control TV codes
(for all Dynex TVs manufactured after Jan. 1, 2007)
Universal remote control makers and models Set-top box makers and models
Philips
RCA One for All Sony Comcast Dish Network Motorola TIVO
PHDVD5, PH5DSS,
RCU807 URC-6690 RM-VL600 M1057 VIP508, VIP622 DRC800 Series 3, HD
PMDVR8, PDVR8
115 135 0464 8043 0463 720 0463 0091
Connecting a DVD or Blu-ray DVD player, cable
box, satellite receiver or game station
Using HDMI (best)
Back of TV
PC/DVI
AUDIO IN
PB
PR
Using component (better)
Back of TV
PC/DVI
AUDIO IN
PB
PR
Audio Cable
Component video device
Using S-video (fair)
Back of TV
PC/DVI
AUDIO IN
PB
PR
Video device
S-video cable
DirectTV
RC23
10463
Connecting an antenna
Connect a 75 ohm cable (not included) to the RF jack on the back of your TV
and to the RF OUT jack on the antenna.
Back of TV
PC/DVI
AUDIO IN
PB
PR
HDMI cable
(not included)
Connecting a home theater system
Using a digital optical cable:
HDMI device
Back of TV
PC/DVI
AUDIO IN
PB
PR
Digital cable
AUDIO IN
Connecting a Computer
Component
video cable
Back of TV
PC/DVI
AUDIO IN
PB
PR
