Aiphone MY-CU-PH/A Instructions

MK Video Door Answering with Panasonic® Phone System
This monitor allows one or two MK video door stations to be used for video door answering, where the
communication is through a Panasonic® telephone system and the video appears on the Aiphone
monitor(s). The MY-CU-PH/A integrates MK PanTilt door stations with Panasonic's KX-T series
systems. (Works with KX-TA Advanced Hybrid series and KX-TD Digital Super Hybrid series.)

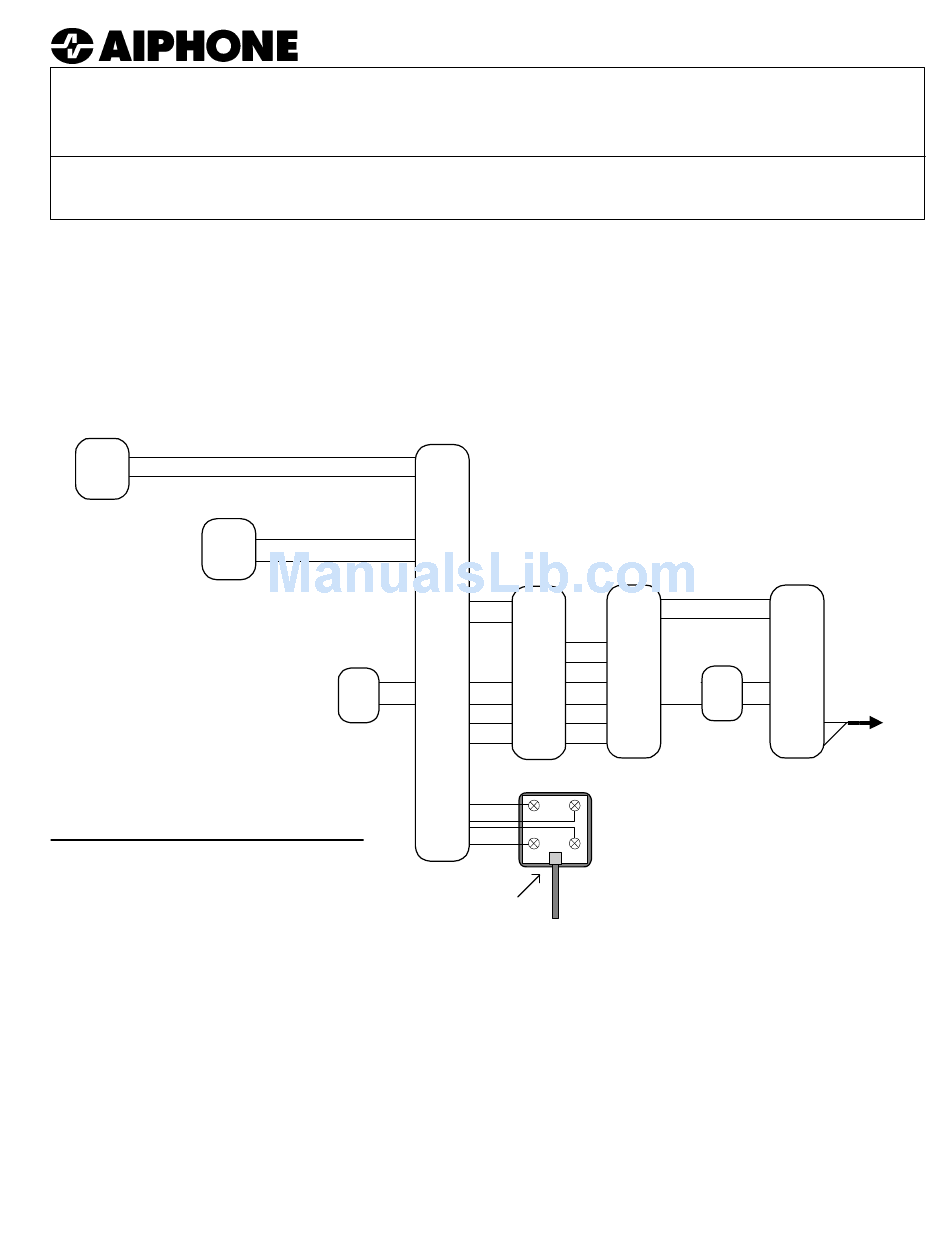

WIRING DIAGRAM:

MK-DBC*
A1
A2
MK-DBC*
A1
A2
*VIDEO DOOR STATIONS:
Any Aiphone MK or MY Series video door
station can be used:
-MK-DAC: Surface mount, black
-MK-DBC: Semi-flush mount, black
-MK-DGC: Semi-flush mount, metal cover
-MK-DGV: Semi-flush mount, vandal
proof, stainless steel cover
-MY-DS: Surface mount, fixed camera,
Brown
MY-CU-PH/A TERMINAL DEFINITIONS:
1A1 2-Wire connection
1A2 for Door Station #1
2A1 2-Wire connection
2A2 for Door Station #2
B1 Video out to
B2 sub monitors
U1 Control wires
U2 Control wires
+ Positive 18V DC
- Negative
To Panasonic Phone System:
D1 Door 1 call-in & audio
D2 Door 2 call-in & audio
E Common audio
MY-CU-PH/A
Video Monitor
- INSTRUCTIONS -
MY-CU-PH/A
1A1
1A2
2A1
2A2
MYH-CU
B1
B2
PS-18C
+
+
- -
U1
U2
(Analog wiring shown)
D1
E
D2
Modular cord from
terminal block to
Door Adaptor in
Panasonic KSU
SPECIFICATIONS:
Power Source:
Consumption:
Communication:
Calling:
Video Monitor:
Scanning lines:
Dimensions (HxWxD): 9" x 7-1/2" x 2-3/4"
Weight:
Updated 05/2001
VIDEO OUTPUT TO CABLE
DISTRIBUTION OR CCTV MONITOR:
Use Aiphone MYW-MD/A Demodulator,
wired with 4 conductor, 18 AWG wire
from the MY-CU-PH/A monitor or last
MYH-CU in the system. Output is a
standard 1V peak-to-peak video signal.
MYH-CU
B1
A1
B2
A2
A1
B1
PS-18YC/A
A2
B2
+
+
-
-
U1
U1
U2
U2
PHONE JACK TERMINAL BLOCK WIRING
With KX-TA62460 Doorphone card (Analog):
1 2
(Used with KX-TA624 System)
D1 = 1 (Green)
3 4
D2 = 3 (Black)
With KX-TD160 Doorphone card (Digital):
(With KX-TD816 and KX-TD1232 systems)
D1 = 2 (Red)
D2 = 4 (Yellow)
18V DC. Use PS-18C for up to three monitors.
Use PS-18YC/A for every additional two monitors.
MY-CU-PH/A Standby: 0.12A; Max. 0.9A
MYH-CU Standby: 0A; Max .4A
Through Panasonic® Telephone system
Hands free at door station
Monitors activate and Panasonic phones ring
4" direct view flat CRT
525 lines
MY-CU-PH/A: 2.2 lbs.
MYH-CU: 1.98 lbs
Special
Order
Products
MYW-MD/A
DA1
DA2
Move jumper to
bottom 2 pins
+
+
DV+ to core of Coax
-
-
DV- to shield of coax
DV+
DV-
Raw video output
E = 2 (Red)
E = 4 (Yellow)
E = 1 (Green)
E = 3 (Black)
Pg. 1
