AT&T E5860 User Manual

AT&T E5860 User Manual

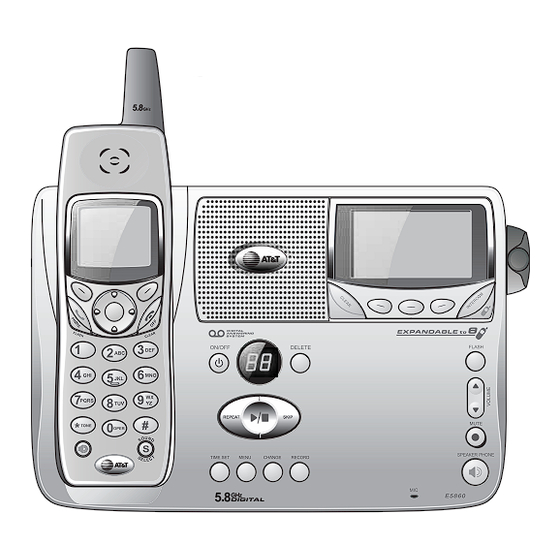

5.8 ghz cordless telephone/answering system with caller id & call waiting
Hide thumbs Also See for E5860:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Reference Manual
ATT-5860CIB-d2.qxd
1/3/2004
11:06 AM
Page 1
User Manual (Part 2)
5.8 GHz Cordless
Telephone/Answering
System E5860
with Caller ID & Call Waiting
