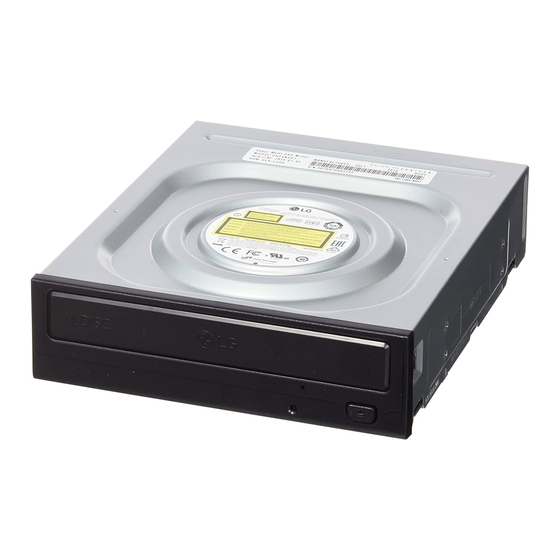

LG GH24NS95 Owner's Manual

Installing the Drive
Before installing the drive, turn off
the system power.
Disconnect the power cord,
and remove the cover.
• Remove a vacant 5.25" drive bay panel from
the computer. Slide the drive into the drive
bay.
Connecting the SATA Power
Cable
• Connect the power cable so the projection of
the cable connector side to come to the left
side. Be careful not to connect upside down.
NOTE:
Improper connection may damage the drive
and void the warranty. Generally, the power
connector can only fit one way.
Connect to the power connector of the PC.
Red
