Dynex DX-PHD25 Quick Setup Manual

2.5" pata hard drive disk enclosure.
Hide thumbs


Advertisement

Package contents
• USB 2.0 2.5" PATA hard drive enclosure
• USB 2.0 Y cable A to Mini B
• Utility CD with User Guide and Roxio BackOnTrack software
• Screwdriver
• Quick Setup Guide
System requirements
• Computer with an available USB 2.0 port
• 2.5" PATA hard drive
• Windows 7, Windows Vista, and Windows XP operating system
• MAC OS X version 10.4 or higher operating system
For highest performance and reliability, install the latest updates and service
pack (SP). For Windows, go to the Start menu, then select Windows Update.
Features
Activity LED
USB 2.0 port
Backup button

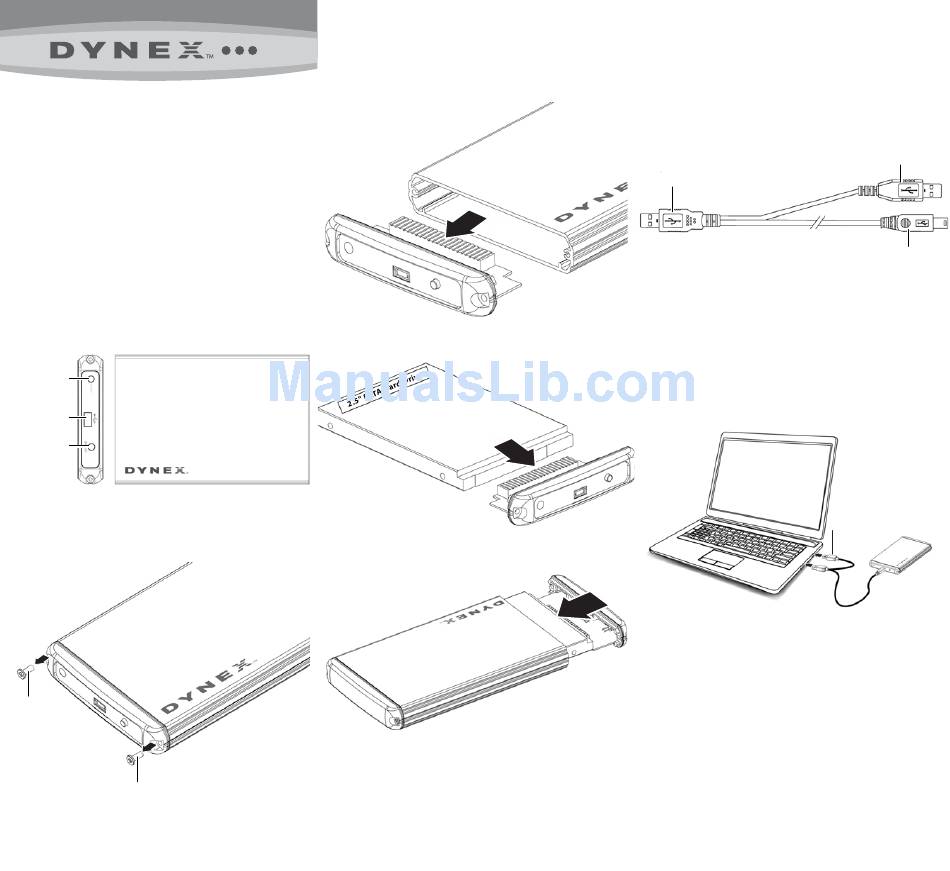

Installing your hard drive in the enclosure
1 Remove two screws on the left side of panel.
Screw
Screw
2 Pull out the plastic end cap with the circuit board.
3 Connect the drive's data connector to the corresponding connector on the
enclosure circuit board.
4 Place the hard drive with the plastic cap back into the aluminum housing, then
secure it with the two screws you previously removed.
DX-PHD25 2.5" PATA Hard Drive Disk Enclosure
Connecting the enclosure to your computer
Note: Make sure you have already installed a hard drive into the enclosure before
you connect the enclosure to your computer.
USB 2.0 A male-type connector
for data and bus power
1 Plug the Mini B type connector into the USB port on enclosure, then plug the
other end of the cable into a USB port on your computer. For additional power,
connect the extra USB connector to the computer, especially for large capacity
hard drives.
Note: A good rule of thumb would be to use one connector initially, then if
your computer does not recognize the drive, plug in the second connector.
2 The operating system automatically detects and sets up the new drive. The
enclosure/hard drive turns on and the LED blinks. If the drive is correctly
detected, a new drive letter is assigned.
• For PCs, the new drive letter appears in My Computer.
• For Macintosh computers, the new drive letter appears on your desktop.
3 If the drive is new and is not formatted, follow the steps below to format the
drive. Otherwise, continue to "Installing the backup software".
Quick Setup Guide
USB 2.0 A male-type connector
for additional power
USB 2.0 Mini B connector
Optional USB 2.0 Y-cable
for extra power
