Important Notices About Safe Burner Operation

Storage
Qualifications
Replacement Parts
Operator Training
1.0 Burner Operating Parameters & Requirements
Applications
Capacities & Supply Pressures See Figure 2.
Burner Environment

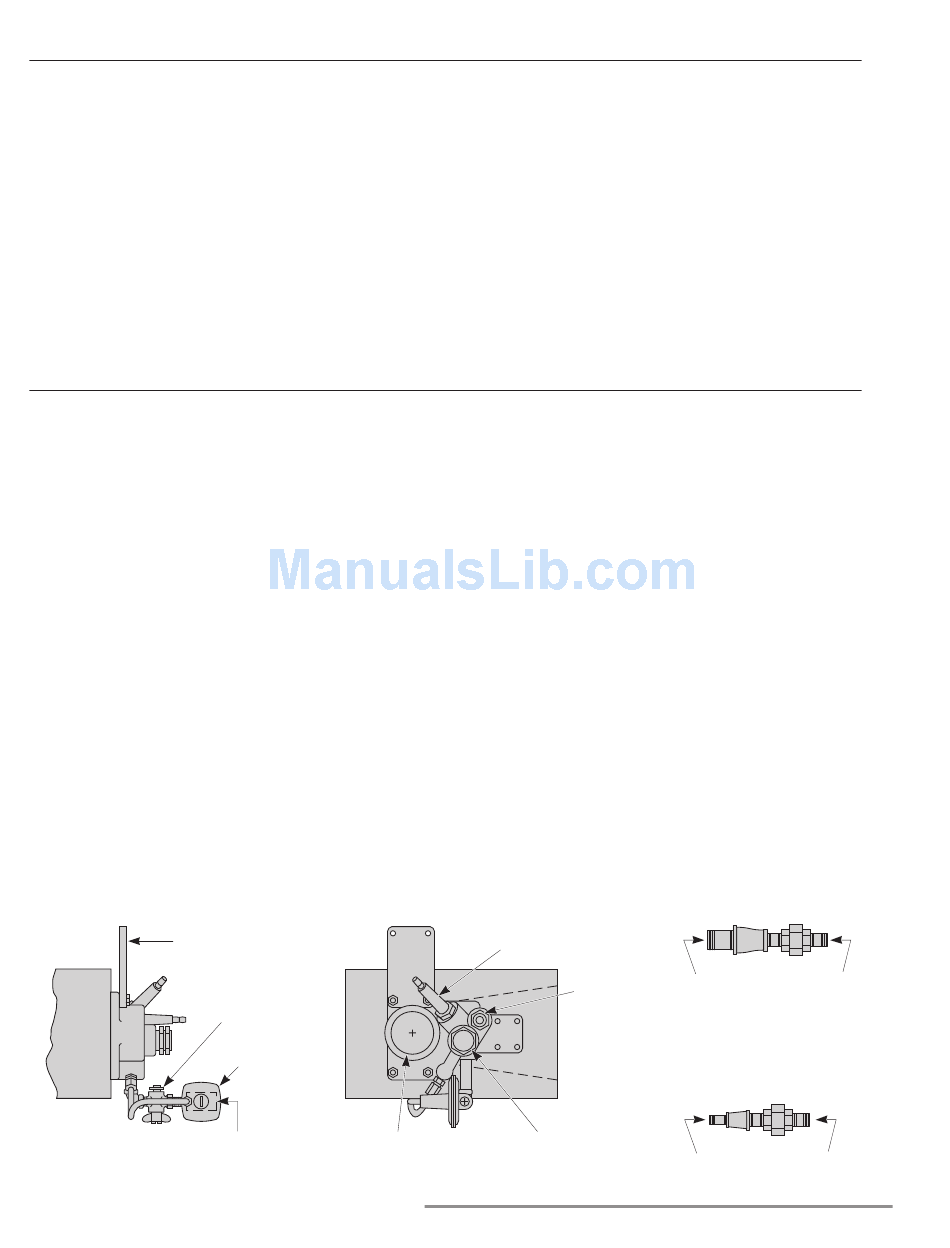

Figure 1–Ignition, Flame Monitoring, and Pilot Components
Mounting
Bracket
Pilot Gas Inlet
2
Store the burner inside. Exposure to the elements can damage the burner.
Adjustment, maintenance, and troubleshooting of the mechanical parts of this
unit should be done by people with good mechanical aptitude and experience
with combustion equipment.
Order replacement parts from Eclipse only. Any customer-supplied valves or
switches should carry UL, FM, CSA, and/or CGA approval where applicable.
The best safety precaution is an alert and competent operator. Thoroughly in-
struct new operators so they demonstrate an adequate understanding of the
equipment and its operation. Regular retraining must be scheduled to maintain a
high degree of proficiency. The operator must have easy access to this Informa-
tion Guide at all times.
Eclipse Air Heat Burners are line type burners ideal for generating large vol-
umes of clean, hot air. Applications include ovens, dryers, fume incinerators, and
similar industrial equipment.
The "AH" models feature an integral combustion air blower mounted on the back
of the burner's steel case. By supplying the correct air volume and pressure to
the burner, the blower allows stable operation over a wide range of duct veloci-
ties without installing a profile plate around the burner.
Weather Protection: Protect burners from the weather.
Combustion Air: Must be free of contaminants. Eclipse strongly recommends
use of a combustion air filter to remove airborne particles. If corrosive fumes or
materials are present in the air, supply the blower with fresh, clean air from an
uncontaminated area of the plant.
Room Openings: If the burner is mounted on the side of the duct, provide at
least one square inch of opening to the outdoors for every 4000 Btu/hr (1.2 kW)
of burner firing rate. This will admit fresh combustion air.
Access: Provide access to the burner for inspection and maintenance.
Pilot Cock
#12659
Pilot
Regulator
#15027
Main Gas Inlet
2" N.P.T.
1/4" N.P.T.
Flame Rod
#13093-3
Spark
Plug
#13047
Peepsight
#10509
3/4" N.P.T.
Eclipse AirHeat v1.0 - Installation Guide No. 140, 11/4/03
Scanner Adaptor 109000
For Sizes through 400 AH
Scanner
Mount In Place
Connection
of Peepsight
1/2" N.P.T.
3/4"N.P.T.
Scanner Adaptor 109559
For Sizes 440 through 800 AH
Scanner
Mount In Place
Connection
of Flame Rod
1/2" N.P.T.
1/4"N.P.T.
