Intel Desktop Board DH55PJ Product Guide
Connecting Chassis Fan and Power Supply
Cables
Connecting Chassis Fan Cables
Connect chassis fan cables to the chassis fan headers on the Desktop Board.
Figure 22 shows the location of the chassis fan headers.
48

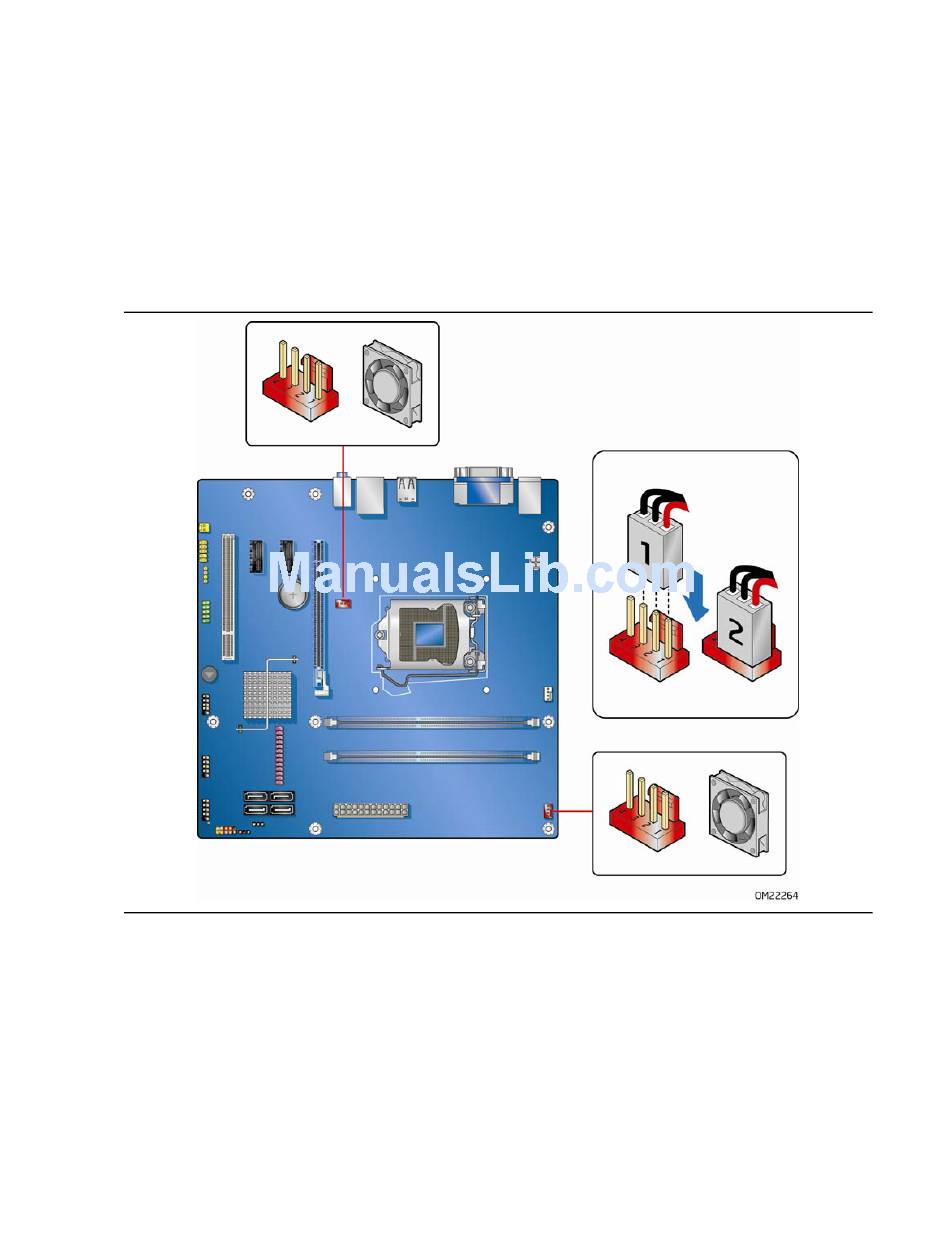

Figure 22. Location of the Chassis Fan Headers
