Intel Desktop Board D410PTL Product Guide
Connecting the Power Supply Cable
CAUTION
Failure to use an appropriate power supply to the Desktop Board may result in damage
to the board or the system may not function properly.
Figure 12 shows the location of the power connector.
1. Observe the precautions in "Before You Begin" on page 23.
2. Connect the main power supply cable (2 x 12) to the 2 x 12 connector (Figure 12).
36

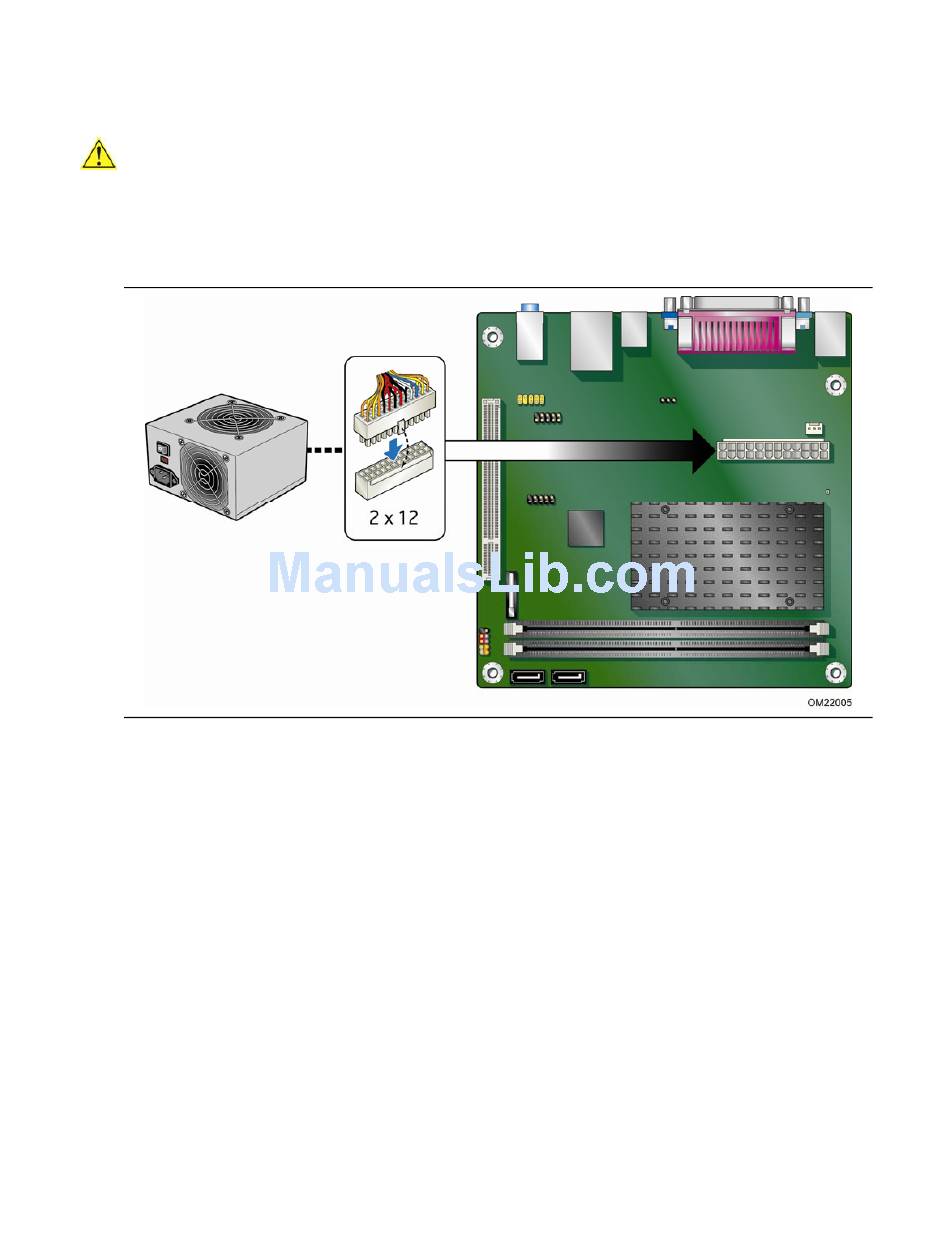

Figure 12. Connecting a Power Supply Cable
