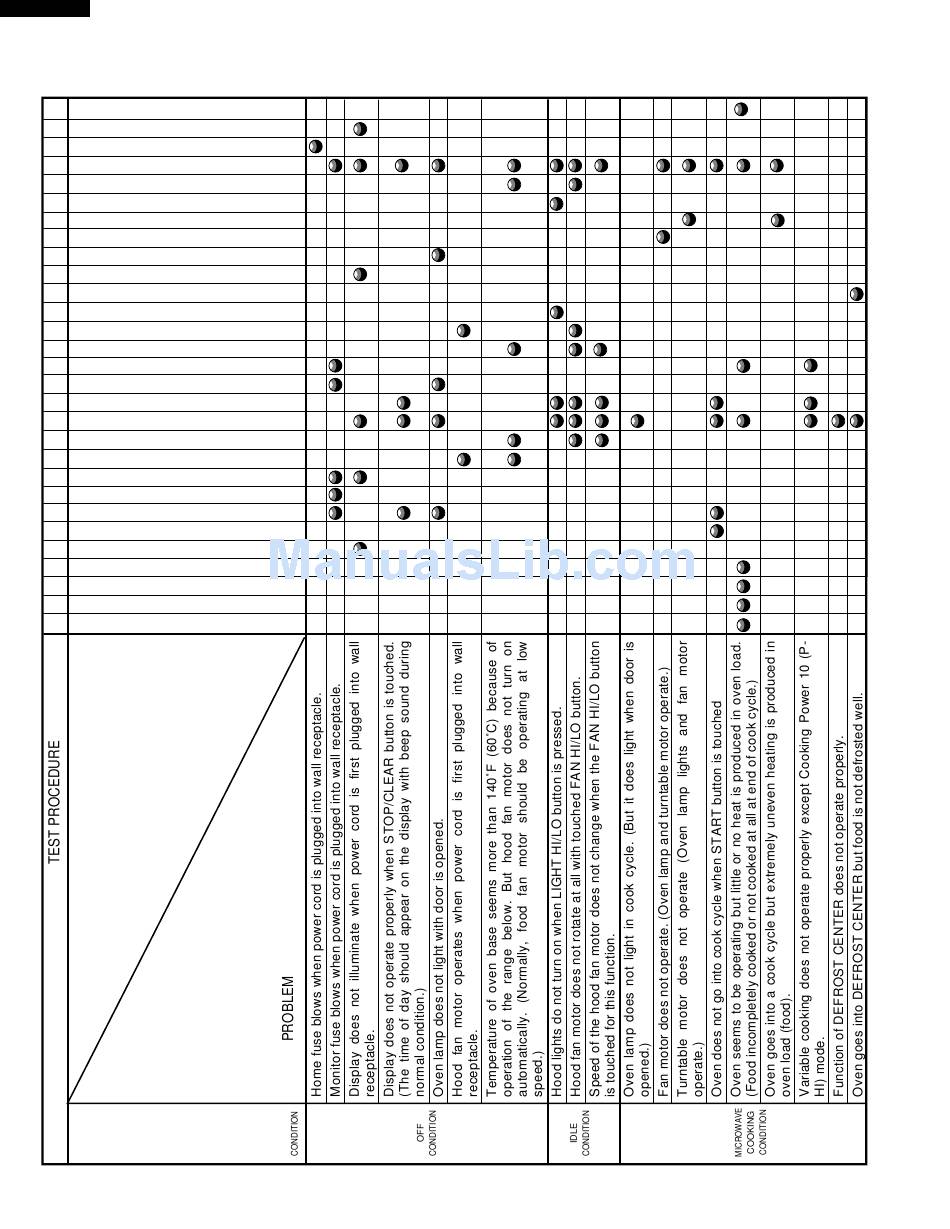

Sharp R-1505F Service Manual page 14

R-1500
R-1501
R-1505
R-1506
CK LOW VOLTAGE
CK NO POWER AT OUTLET
RE SHORT IN POWER CORD
CK OPENED OR SHORTED WIRING
CK HOOD MOTOR CAPACITOR
RE HOOD LAMP OR SOCKET
RE TURNTABLE MOTOR
RE FAN MOTOR
RE OVEN LAMP OR SOCKET
P FOIL PATERN ON P.W.B.
O DEFROST CENTER
N RELAYS (RY-5), (TY6)
N RELAY (RY-4)
N RELAY (RY-3)
N RELAY (RY-2)
N RELAY (RY-1)
M KEY UNIT
L CONTROL UNIT
K HOOD FAN MOTOR
J HOOD HERMAL CUT-OUT
I MONITOR FUSE
H MONITOR SWITCH
G SECONDARY INTERLOCK SYSTEM
F PRIMARY INTERLOCK SWITCH
E TEMPERATURE FUSE OR THERMAL CUT-OUT
D HIGH VOLTAGE CAPACITOR
C H.V. RECTIFIER
B POWER TRANSFORMER
A MAGNETRON
POSSIBLE CASE AND
DEFECTIVE PARTS
12
CK = Check / RE = Replace
