(A) Rotate 90°

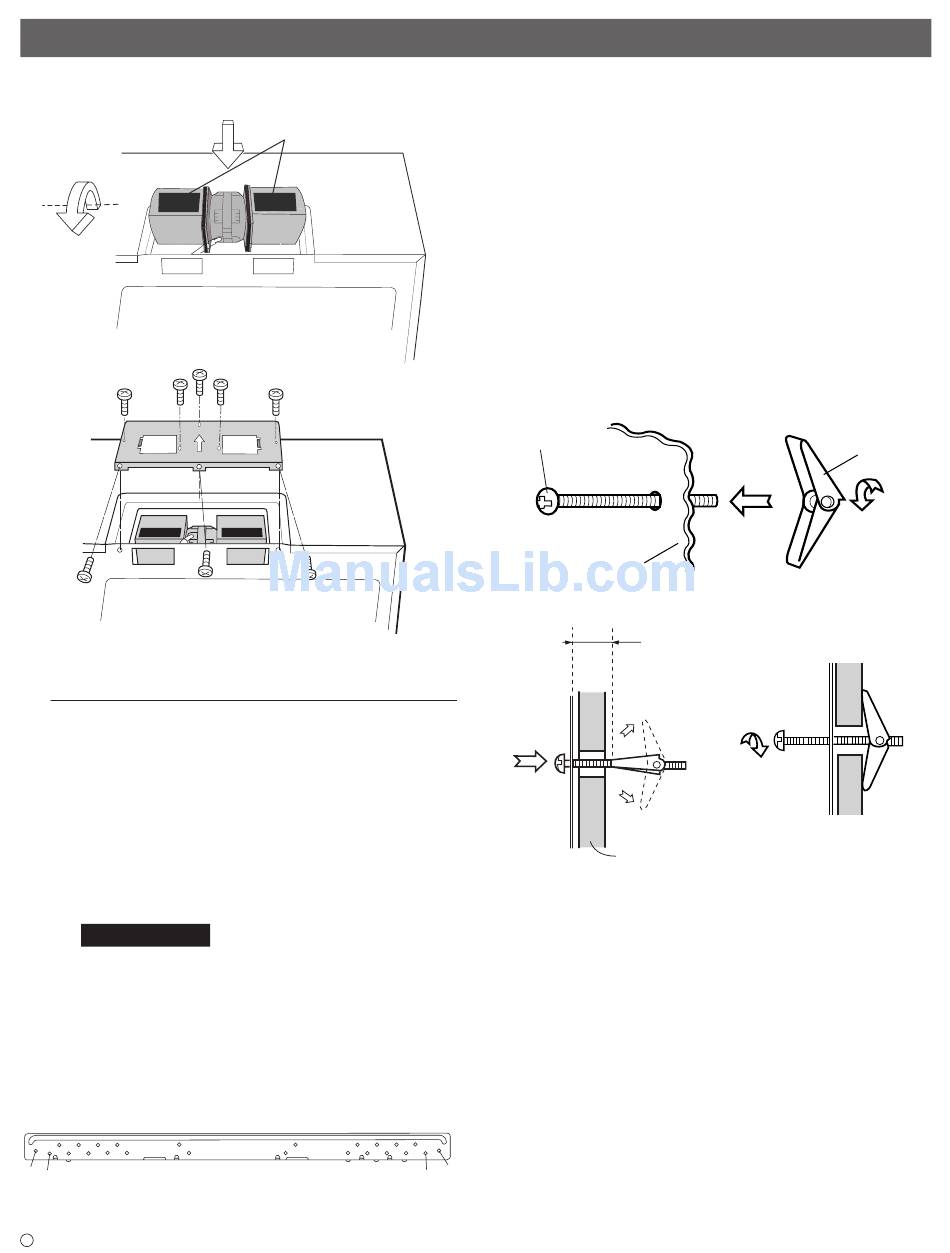

9 OVEN INSTALLATION

THIS OVEN CANNOT BE PROPERLY INSTALLED WITHOUT REFERRING
TO THE MOUNTING INSTRUCTIONS FOUND ON BOTH TEMPLATES.
THE NEXT STEP IS TO READ AND FOLLOW MOUNTING INFORMATION
ON BOTH TOP CABINET AND WALL TEMPLATES.
NOTE: THIS OVEN SHOULD BE ATTACHED TO AT LEAST ONE WALL
STUD.

MOUNTING PLATE

1. Separate Toggle Nuts, packed in the INSTALLATION
HARDWARE, from 4 Toggle Bolts.
IMPORTANT
2.
provided to Use wood screws to attach mounting
plate to the stud or studs. Use Toggle Bolts to
attach mounting plate through the holes at A, B, C
and D UNLESS THOSE HOLES ARE LOCATED ON
THE STUD. Insert one Toggle Bolt into A, B, C and
D where appropriate (these correspond to holes of
the Wall Template) and put the Toggle Nuts onto the
Toggle Bolts. See Figure 15. Refer to instructions in
Wall Template.
SUITABLE FOR USE ABOVE GAS OR ELECTRICAL
COOKING EQUIPMENT 36 INCHES OR LESS WIDE
WARNING TO REDUCE THE RISK OF FIRE AND
ELECTRICAL SHOCK,INSTALL AT LEAST 13-3/16 INCHES
ABOVE A RANGE (OR COOK TOP)
A C
E
INSTALLATION INSTRUCTIONS
(B)
Fan Blade Openings
Figure 13
Figure 14
Use
the
mounting
3. Position the Mounting Plate with the Toggle Bolts
attached at the wall location and insert Toggle Nuts and
Bolts through the holes in the wall with the Toggle Nuts
closed. See Figure 16. Use Wood Screws to attach the
Mounting Plate to studs.
NOTE: Before insertion, be sure you leave a space more
than the thickness of the wall between the Mounting Plate
and the end of each of the Toggle Nuts (in the closed
position). If you do not leave enough space, the Toggle
Nut will not be able to open on the other side of the wall.
Also, once a Toggle Nut opens, it cannot be withdrawn
from the hole; therefore make sure all of the Toggles are
in the correct position before insertion.
4. Align the Mounting Plate carefully and hold in position
while tightening Toggle Bolts. Pull Toggle Bolt toward
you and turn clockwise to tighten. See Figure 17.
Toggle Bolt
Figure 16

MOUNTING OVEN TO THE WALL

template
Two people are recommended to attach the Microwave Oven/
Hood to the Mounting Plate.
1. Thread the power supply cord through the hole made in
the bottom of the top cabinet.
2. Install the oven by tilting it forward and sliding it onto two
tabs of the Mounting Plate. Rotate the oven up so it rests
against the wall. See Figure 18 on page 7.
3. Use the two Top Cabinet Screws and two Flat Washers,
supplied in the INSTALLATION HARDWARE, to attach
the unit to the top cabinet. See Figure 19 on page 7.
4. Secure the bottom of the oven to the Mounting Plate
B
D
by using two Tapping Screws 4 x 8 mm from the
INSTALLATION HARDWARE. See Figure 19 on page 7.
6
Mounting Plate
Figure 15
Space more
than wall
thickness
Wall
Toggle Nut
Figure 17
