Getting Started

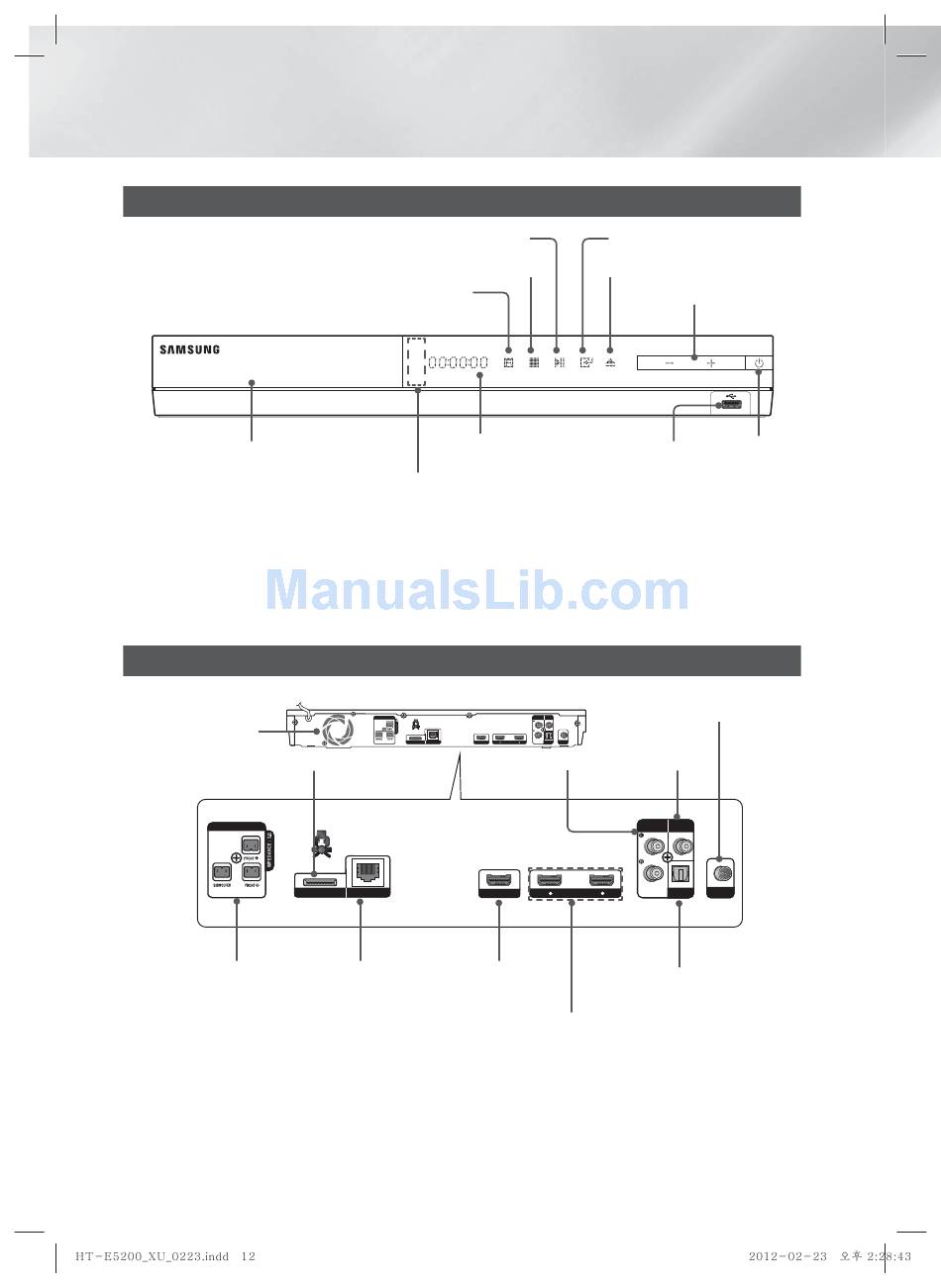

Front Panel

DISC TRAY
| NOTE |
\ To upgrade the product's software through the USB Host jack, you must use a USB memory stick.
\ When the product displays the Blu-ray Disc menu, you cannot start the movie by pressing the 6 button on the product or
the remote. To play the movie, you must select Play Movie or Start in the disc menu, and then press the E button.

Rear Panel

COOLING FAN
iPod
SPEAKERS OUT
SPEAKER OUTPUT
CONNECTORS
| NOTE |
\ Ensure a minimum of 10 cm of clear space on all sides of the home cinema to ensure adequate ventilation. Do not obstruct
the cooling fan or ventilation holes.
12
|
English
PLAY/PAUSE
FUNCTION
DISPLAY

REMOTE CONTROL

SENSOR
SPEAKERS OUT
iPod LAN HDMI OUT
iPod LAN
HDMI OUT
LAN TERMINAL HDMI OUT
ENTER
STOP OPEN/CLOSE
VOLUME CONTROL
USB HOST
AUX VIDEO
IN OUT
OPTICAL
DIGITAL
1 HDMI IN 2 FM ANT
AUDIO IN
AUX IN VIDEO OUT
AUX VIDEO
IN OUT
OPTICAL
DIGITAL
HDMI IN 2
1
AUDIO IN
EXTERNAL DIGITAL
AUDIO IN (OPTICAL)
HDMI IN
5V 500mA
POWER
FM ANTENNA
FM ANT
