HP Fabric Clustering System 24-port 4x Fabric
Copper Switch Installation Guide
Integrity Server Networking: HP-UX 11iv2
ProLiant Server Networking: Linux
Manufacturing Part Number: 393235-001
March 2005
Printed in the US
© Copyright 2004-2005 Hewlett-Packard Development Company, L.P.

Advertising

   Also See for HP 376227-B21 - ProLiant InfiniBand 4x Fabric Copper Switch

   Related Manuals for HP 376227-B21 - ProLiant InfiniBand 4x Fabric Copper Switch

   Summary of Contents for HP 376227-B21 - ProLiant InfiniBand 4x Fabric Copper Switch

  • Page 1

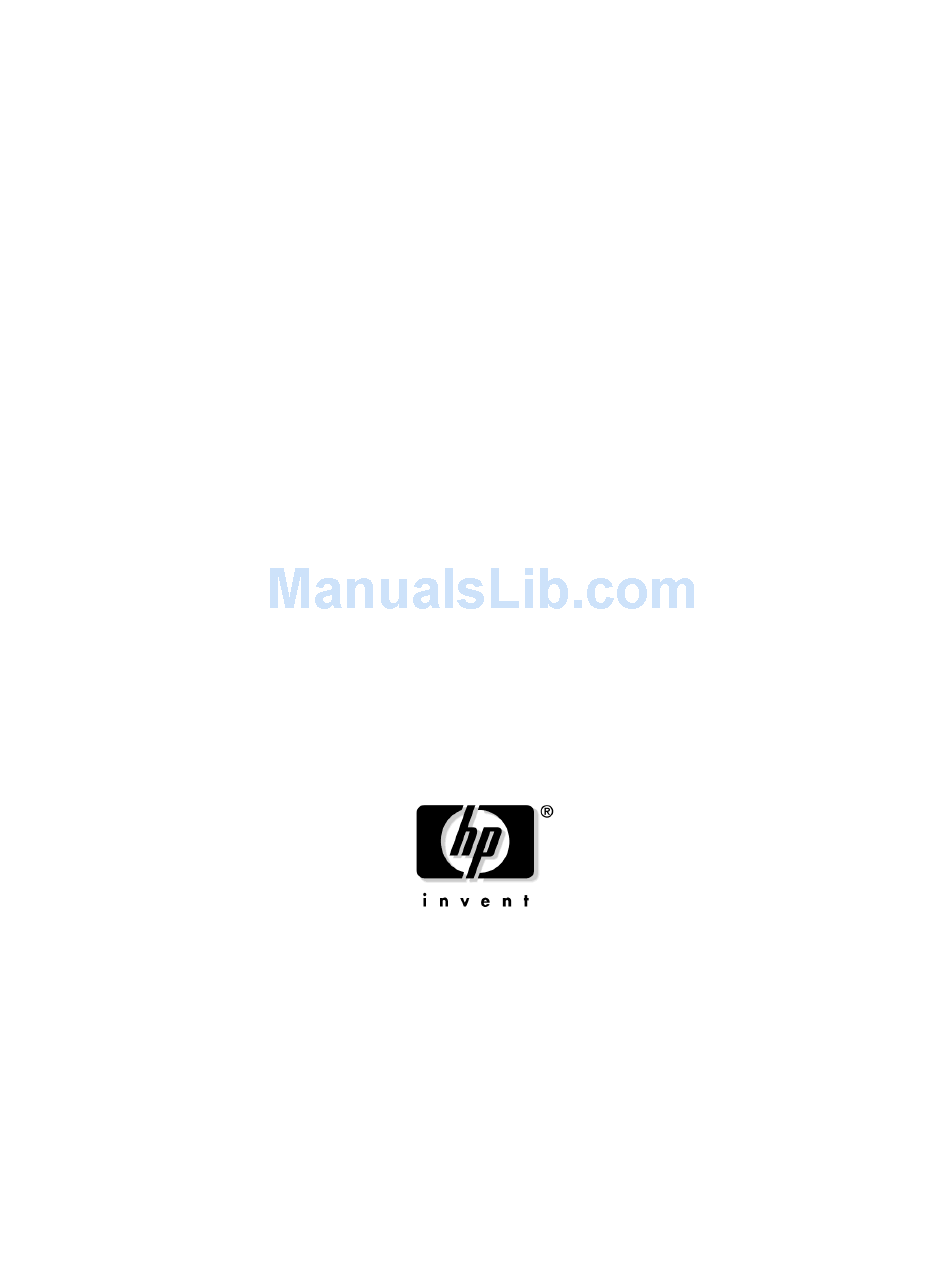

    HP Fabric Clustering System 24-port 4x Fabric Copper Switch Installation Guide Integrity Server Networking: HP-UX 11iv2 ProLiant Server Networking: Linux Manufacturing Part Number: 393235-001 March 2005 Printed in the US © Copyright 2004-2005 Hewlett-Packard Development Company, L.P.

  • Page 2: Legal Notices

    The information in this document is subject to change without notice. Hewlett-Packard makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be held liable for errors contained herein or direct, indirect, special, incidental or consequential damages in connection with the furnishing, performance, or use of this material.

  • Page 3: Table Of Contents

    Contents 1. HP-UX Integrity Installation Overview & Planning About InfiniBand‘..............5 HP Fabric Clustering System Components .

  • Page 4

    Contents...

  • Page 5: About Infiniband, Hp Fabric Clustering System Components

    HP-UX Integrity Installation Overview & Planning This chapter contains HP-UX installation information for the 376227-B21 HP 24-port 4x Fabric Copper Switch and contains the following sections: • “About InfiniBand‘” • “HP Fabric Clustering System Components” • “Installing HP Fabric Clustering System” •...

  • Page 6: Hp Fabric Clustering System Host Channel Adapter (hca), Hp Fabric Clustering System 24-port Switch

    HP-UX Integrity Installation Overview & Planning HP Fabric Clustering System Components HP Fabric Clustering System refers to the following copper-based hardware components: • AB286A HP PCI-X 2-port 4X Fabric (HPC) Adapter • AB345A HP PCI-X 2-port 4X Fabric (DB) Adapter •...

  • Page 7: Other Product Elements, Installing Hp Fabric Clustering System, Hp Fabric Clustering System Installation Prerequisites

    HP-UX Integrity Installation Overview & Planning Installing HP Fabric Clustering System Figure 1-4 Stylized View of Switch Connectors Power Plug Power Plug Management Port Console Port (24) Switch Cluster Connections Other Product Elements Other components of the HP Fabric Clustering System product family: •...

  • Page 8

    HP-UX Integrity Installation Overview & Planning HP Fabric Clustering System Installation Prerequisites The latest switch firmware and is available online at: http://support.hp.com 1. Select Software and Driver downloads. 2. Enter your product name. 3. Click the double arrow. Refer to the section “Configuration, Image, and Log Files” section of the HP Fabric Clustering System HP-UX Administrator's Guide.

  • Page 9: Install Hp Fabric Clustering System Adapters, Installing The Host Channel Adapter

    HP-UX Integrity Installation Overview & Planning Install HP Fabric Clustering System Adapters Install HP Fabric Clustering System Adapters CAUTION Adapters contain electronic components that can easily be damaged by small amounts of electricity. To avoid damage, follow these guidelines: • Store adapters in their anti-static plastic bags until installation.

  • Page 10: On-line Addition And Replacement Operations (ol*), Replacing An Hca, Install Hp Fabric Clustering System Software

    HP-UX Integrity Installation Overview & Planning Install HP Fabric Clustering System Software On-Line Addition and Replacement Operations (OL*) On-Line Addition and Replacement (OL*) of HP Fabric adapters is supported on HP Fabric Clustering System version B.11.23.02 or newer with a couple of limitations related to replacing an HCA, see below. Replacing an HCA CAUTION Do Not use an Attention Button to REPLACE an HP Fabric Clustering System HCA.

  • Page 11

    HP-UX Integrity Installation Overview & Planning Install HP Fabric Clustering System Software • Look for “Download Software” and click on the depot that corresponds to your HP-UX operating system version to download the drivers, utilities, and manpages for your adapter. •...

  • Page 12: Install Hp Fabric Clustering System Switches, Rack Mount Preparation, Installing The Switch

    HP-UX Integrity Installation Overview & Planning Install HP Fabric Clustering System Switches Install HP Fabric Clustering System Switches This section describes how to install the switch in a standard HP rack. If the switch is already installed in a rack, proceed to “Remove Shipping Sleeve” on page 14. Requirements In addition to the accessories provided with the switch, you should have: •...

  • Page 13

    HP-UX Integrity Installation Overview & Planning Install HP Fabric Clustering System Switches Step 2. To install the switch with the bezel to the front of the rack, install with the flange at the front of the switch. You can also mount the flange toward the back if you want to mount the switch backward in the rack such that the service-side is forward.

  • Page 14: Remove Shipping Sleeve

    HP-UX Integrity Installation Overview & Planning Install HP Fabric Clustering System Switches Step 5. Fit the sliding rails over the fixed rails with the flanges facing outward until the flanges meet the rack. Figure 1-10 Fit Sliding Rail over Fixed Rail Step 6.

  • Page 15: Remove Support Bracket (if Installed), Attach Cable Guides & Cables

    HP-UX Integrity Installation Overview & Planning Attach Cable Guides & Cables Remove Support Bracket (if installed) If switches are pre-installed in a rack, there will be a Support Bracket under each switch. This should be removed after the rack is in its final location. The space should be filled with additional equipment or a 1U filler panel.

  • Page 16: Cable Routing And Bend Limits, Attach Cables

    HP-UX Integrity Installation Overview & Planning Attach Cable Guides & Cables Cable Routing and Bend Limits Pre-form the cables to the bent condition prior to installation if possible. This reduces any undue strain at the plug/receptacle connection at the time of installation. Handling or installing an InfiniBand technology cable in a manner that results in a tight bend radius or excessive twisting can result in immediate or latent failure of the cable.

  • Page 17: Attach To Other Hp Fabric Clustering System Devices, Internet Protocol Over Infiniband (ipoib)

    HP-UX Integrity Installation Overview & Planning Internet Protocol over InfiniBand (IPoIB) Attach cables to switches and HCAs assuring that the latch is engaged on each connection. Pull or push evenly across the width of the lanyard to latch or unlatch the plug connector. Pulling abruptly on the lanyard, or pulling on only one side of the lanyard will prevent the latch/unlatch operation from occurring, and could damage or break the lanyard.

  • Page 18

    HP-UX Integrity Installation Overview & Planning Internet Protocol over InfiniBand (IPoIB) Enable the IPoIB Interface To enable the IPoIB interface. Syntax: ifconfig <ipoib_interface> [address] [netmask] up Example: ifconfig lan9000 192.32.32.255 up There is no direct output from this command. To confirm that the interface is UP, run the ifconfig lan9000 command again. Output Example: lan9000: flags=843<UP,BROADCAST,RUNNING,MULTICAST>...

  • Page 19: Kit Contents, About Infiniband

    ProLiant Linux Installation Overview & Planning Thank you for purchasing the HP 24-Port 4x Fabric Copper Switch This guide provides an overview of how to install the HP 24-Port 4x Fabric Copper Switch. For more detailed instructions, refer to the HP 24-Port 4x Fabric Copper Switch Hardware User Guide. The latest switch firmware and user documentation are available online at: http://support.hp.com 1.

  • Page 20: Hp Fabric Clustering System 24-port Switch, Install Hp Fabric Clustering System Switches

    ProLiant Linux Installation Overview & Planning HP Fabric Clustering System 24-Port Switch • Twelve T-25 Torx screws for attaching rails and support bracket to rack • Twelve clip nuts for mounting in a 10000 Series rack • Twelve clip nuts for mounting in a Rack System/E rack •...

  • Page 21: Rack Mount Preparation, Installing The Switch

    ProLiant Linux Installation Overview & Planning Install HP Fabric Clustering System Switches Requirements In addition to the accessories provided with the switch, you should have: • T-10 and T-25 Torx screwdrivers. • A second person for the installation. Installing the switch with only one person is very difficult. Rack Mount Preparation Prior to mounting the switch in a rack: 1.

  • Page 22

    ProLiant Linux Installation Overview & Planning Install HP Fabric Clustering System Switches Figure 2-5Rail-to-Switch Attachment Locations Attach rail to switch in Bezel end the (6) locations highlighted in black. Figure 2-6 Attach Rail to Switch Step 3. Repeat steps Steps 1 and 2 on the other side of the switch. The two sliding rails should still be unattached.

  • Page 23

    ProLiant Linux Installation Overview & Planning Install HP Fabric Clustering System Switches Step 5. Fit the sliding rails over the fixed rails with the flanges facing outward until the flanges meet the rack. Figure 2-8 Fit Sliding Rail over Fixed Rail Step 6.

  • Page 24: Installing The Rack Support Bracket (if Required), Configuring Basic Connectivity

    ProLiant Linux Installation Overview & Planning Configuring Basic Connectivity Installing the Rack Support Bracket (if required) The HP 24-port 4x Fabric Copper Switch ships with a rack support bracket kit. Installation of the bracket is required when the switch is mounted in a rack without any equipment mounted directly below it, and the rack will be transported.

  • Page 25: Attach Cables

    ProLiant Linux Installation Overview & Planning Attach Cables 3. Configure an IP address for the Ethernet management port. It is necessary to configure connectivity to the out-of-box Ethernet management port in order to use Telnet or the GUI. The switch Ethernet management port is not pre-configured when it ships from the factory.

  • Page 26

    ProLiant Linux Installation Overview & Planning Attach Cables Bundles of cables should not be “tie-wrapped” with a tie-gun. These fasteners create pinch points on the cables that can crush the dielectric material and create impedance discontinuities. Rather, cables should be bundled using velcro strapping or other less compressive bundling techniques.

  • Page 27: Declaration Of Conformity

    Declaration of Conformity Appendix A...

  • Page 28

    Declaration of Conformity Appendix A...
