Sharp LC-20SH6U Operation Manual
Operation manual
Hide thumbs
Also See for LC-20SH6U:
- Service manual (74 pages) ,
- Operation manual (33 pages) ,
- User manual (32 pages)
Table of Contents
Advertisement

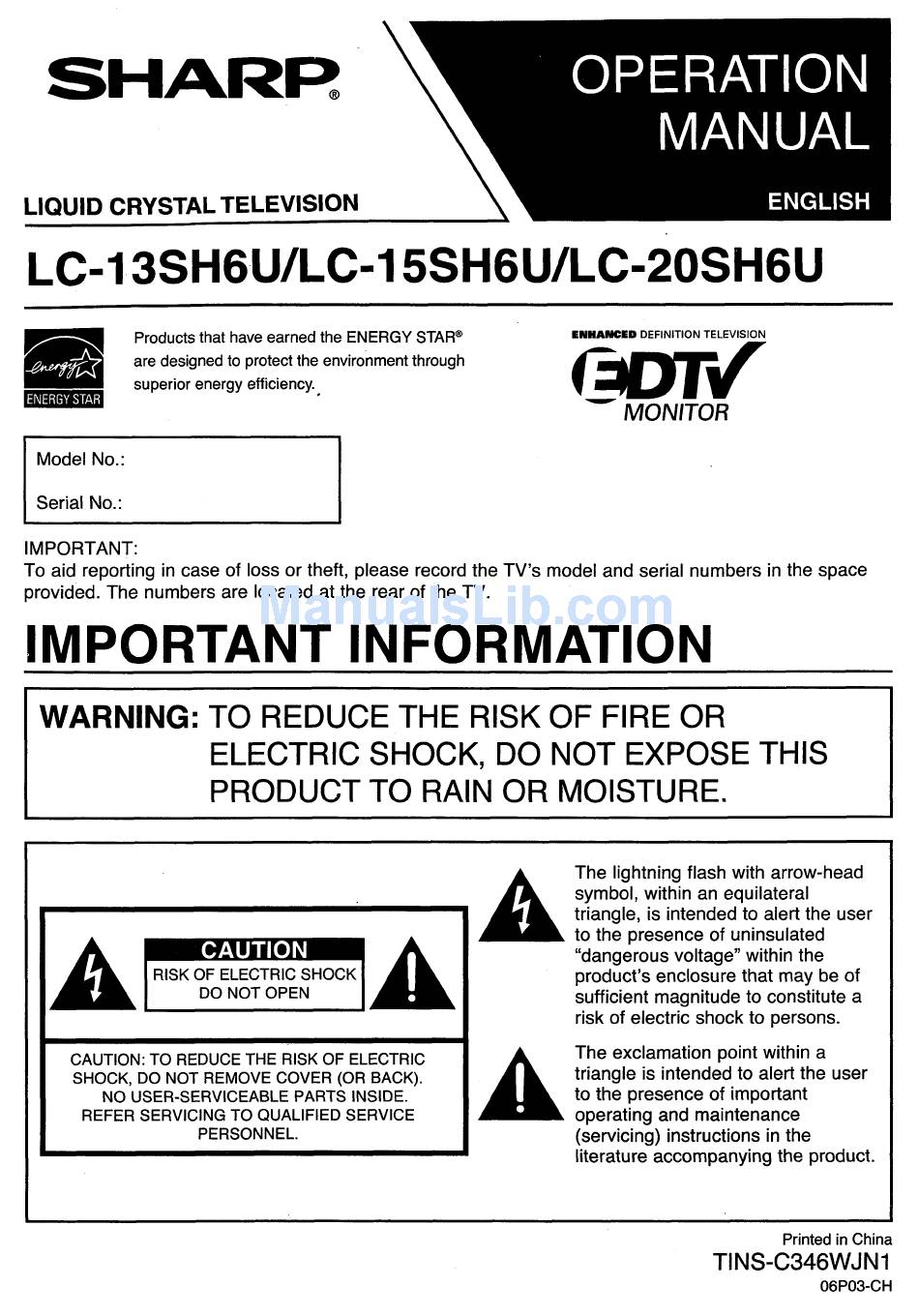

SHARR
LIQUID CRYSTAL TELEVISION
OPERATION
MANUAL
ENGLISH
LC-13SH6U/LC-15SH6U/LC-20SH6U
Model No.:
Serial No.:
Products that have earned the ENERGY STAR®
are designed to protect the environment through
superior energy efficiency.
ENHANCED
DEFINITION TELEVISION
r:or,r
-MONITOR
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
IMPORTANT:
To aid reporting in case of loss or theft, please record the TV's model and serial numbers in the space
provided. The numbers are located at the rear of the TV.
IMPORTANT INFORMATION
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
A
The lightning flash with arrow-head
symbol, within an equilateral
...- - - - - - - - - - - - - - - - .
triangle, is intended to alert the user
to the presence of uninsulated
"dangerous voltage" within the
product's enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
A
The exclamation point within a
triangle is intended to alert the user
to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the product.
Printed in China
TINS-C346WJN1
06P03-CH
Advertisement
Table of Contents
Related Manuals for Sharp LC-20SH6U
Summary of Contents for Sharp LC-20SH6U
- Page 1 SHARR OPERATION MANUAL ENGLISH LIQUID CRYSTAL TELEVISION LC-13SH6U/LC-15SH6U/LC-20SH6U ENHANCED DEFINITION TELEVISION Products that have earned the ENERGY STAR® r:or,r are designed to protect the environment through superior energy efficiency. -MONITOR Model No.: Serial No.: IMPORTANT: To aid reporting in case of loss or theft, please record the TV's model and serial numbers in the space provided.
-
Page 2: U.s.a. Only
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. CAUTION: DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRACKET, OR TABLE. THE PRODUCT MAY FALL CAUSING SERIOUS PERSONAL INJURY AND SERIOUS DAMAGE TO THE PRODUCT. -
Page 3: Dear Sharp Customer
DEAR SHARP CUSTOMER Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years • When relocating the product placed on a cart, it must be moved with utmost care. Sudden of trouble-free operation of your product, please read the Important Safety Precautions carefully before stops, excessive force and uneven floor surface can cause the product to fall from the cart. -
Page 4: Supplied Accessories
Supplied Accessories Make sure the following accessories are provided with the TV set. •. nIl3Mn·~j • The antenna requirements for good color television reception are more important than those for black & white television reception. For this reason, a good quality outdoor antenna is strongly recommended. The following is a brief explanation of the type of connections that are provided with the various antenna systems. -
Page 5: Part Names Of Main Unit
Speaker TV set can be watched most comfortably. • Consult your SHARP Dealer or Service Center for the type of splitter, RF switch, or combiner that might be required. POWER SLEEP Connect to the POWER INPUT terminal of the LCD TV set using the AC cord (supplied). -
Page 6: Part Names Of Remote Control
Be sure to secure the cables and AC cord with the supplied cable clamp. ~-=- screen. I""" I (Cursor control) ' - - - - - - - - : - - - - A SHARP PIC. FLIP Selects a desired item on the LCDTV~ screen. Sets the orientation ,of the \..~... -
Page 7: Basic Operation
EZ SETUP Basic Operation Turning On and Off the Main Power EZ SETUP during the First Power On Press ENTER to access START EZ SETUP mode. SWitching the Input Modes Press AI"" to select "YES", and press ENTER. (INPUT1/INPUT2IINPUT3lTV) • When you turn on the TV for the first time, it will automati- >... - Page 8 Basic Operation (Continued) • Menu setting screens Sound Volume Changing Channels Selecting Menu Items INOTE You can select channels using Channel Select or The menus can be used to adjust the various settings of your • To adjust the volume •...
-
Page 9: Basic Adjustment Settings
Basic Adjustment Settings AV MODE COLOR TEMPERATURE BACKLIGHT PICTURE Adjustments AV MODE gives you preset options to choose from, to best You can adjust the color temperature to give a better white You can adjust the brightness of the picture. You can adjust the picture to your preference with the match the image based on room-brightness and playback balance. -
Page 10: Useful Features
Useful Features Basic Adjustment Settings (Continued) --- --- • Saving broadcast TV channels in the memory CH-SETTING AUDIO Adjustments SETUP o • • EZ SETUP You can adjust the sound quality to your preference with the o • BACKUGHT When you move to an area with different broadcasting _ _ 'II following settings. - Page 11 Canadian Rating Systems V-CHIP Settings • The TV rating systems in Canada are based on the Canadian Radio-Television and Telecommunications Commission (CRTC) policy on violence in television programming . • V-CHIP • While violence is the most important content element to be rated, the structure developed takes into consideration This function allows TV programs to be restricted and TV usage to be controlled based on FCC data.
- Page 12 Useful. Features (Continued) • Setting BLOCK CONTENT (TV GUIDELINES) • Activating V-CHIP BLOCK • Changing V-CHIP BLOCK settings V-CHIP Settings .(Continued) • Setting STATUS __ el Repeat steps 1 to 4 of Setting V-CHIP. V-CHIP settings allow you to set MPAA rating, TV Repeat steps of Setting V-CHIP, then "INPUT GUIDELINES, Canadian English ratings and Canadian French...
- Page 13 • If no TEXT broadcast is being received while viewing in the Displays the image in a 4:3 size. AVMODE TEXT mode, the screen may become blank for some programs. SHARP 16:9 Stretches the image horizontally to display it in a SLEEP I Should this occur, switch the CLOSED CAPTION mode to OFF.
- Page 14 Useful Features (Continued) BLUE SCREEN SLEEP TIMER NO SIGNAL OFF PICTURE FLIP This function automatically turns the screen blue if no You can set the SLEEP TIMER to automatically turn off the Power control setting allows you to save energy. You can set the orientation of the picture.
-
Page 15: Connecting External Devices
Troubleshooting Connecting External Devices You can enjoy picture and sound by connecting a VCR or a home video game system to the terminals located on the rear of • Before calling for repair services, make the following checks for possible remedies to the encountered symptoms. the main unit. -
Page 16: Dimensional Drawings
77°F/25°C • As a part of policy of continuous improvement, SHARP reserves the right to make design and specification Changes for product improve- ment without prior notice. The performance specification figures indicated are nominal values of production units. There may be some... -
Page 17: Calling For Service
Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. - Page 18 If you have comments or suggestions about our product, please write to: Post Office will SHARP ELECTRONIC CORPORATION not deliver TV Marketing Department without proper Sharp Plaza, Mahwah, NJ 07430-2135 U.S.A. postage. Visit our website at http://www.sharpusa.com MLH01-01 SHAR~ POBOX 171098 DENVER CO 80217-1098 11 ••...
