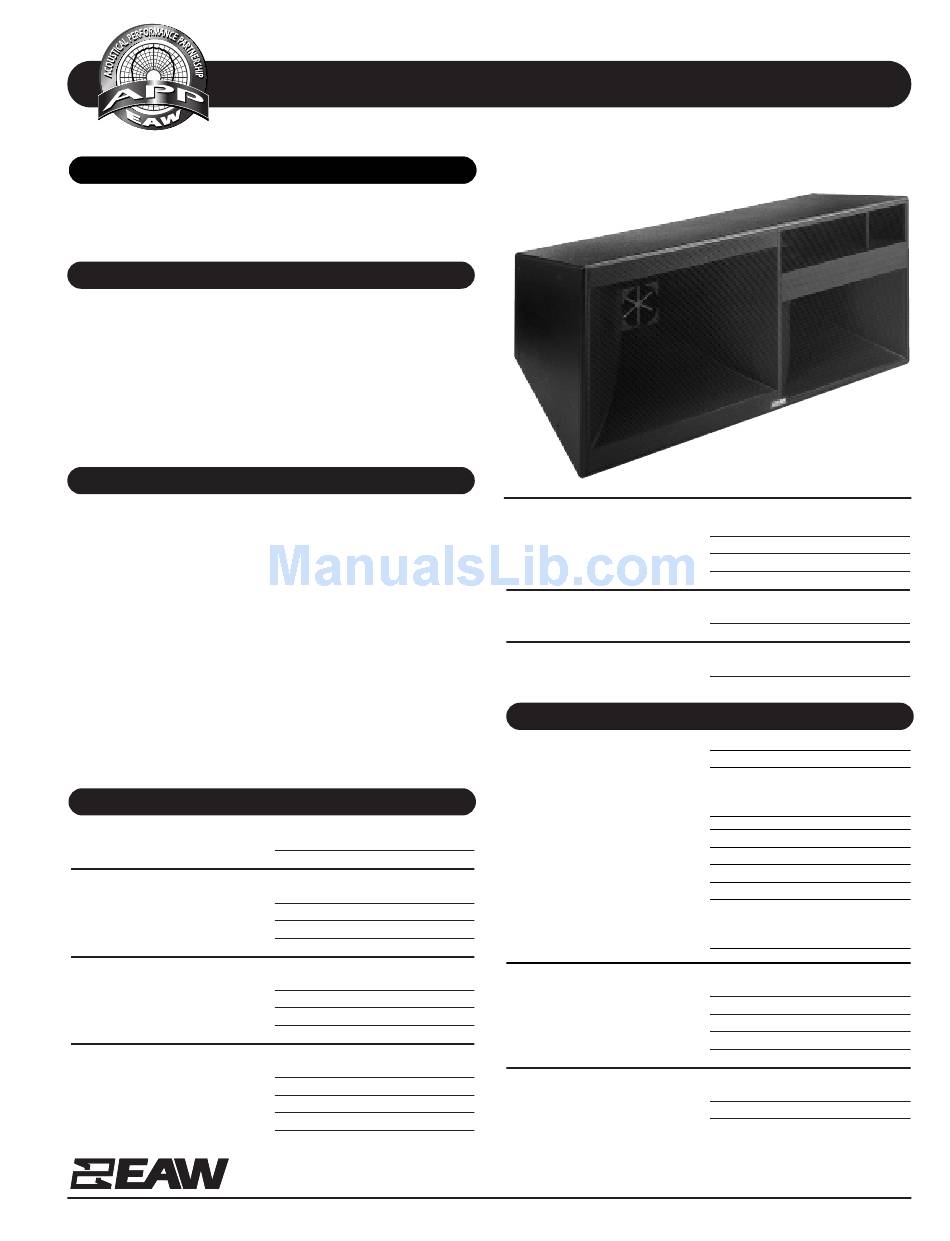

EAW MQV1366e Specifications

FEATURES FEATURES
• Full-range, 3-way system
• 15-in LF; 10-in horn-loaded MF; 2-in exit Neodymium HF
• 60° x 60° beamwidth
• Horizontally configured to create vertical arrays
DESCRIPTION
A 3-way, full-range system in a vented trapezoidal enclosure.
Includes a slot-loaded 15-in woofer, a horn-loaded 10-in MF
cone with Radial Phase Plug™, and a 2-in exit/3-in diaphragm
Neodymium compression driver. The MF and HF horns provide
a nominal 60° x 60° beamwidth. An internal passive crossover
with jumpers on the input panel allows user selection of
either bi-amplified or passive operation. In either case digi-
tal signal processing is required to achieve specified perform-
ance. The enclosure features a comprehensive system of 3/8"-
16 threaded suspension points.
APPLICATION
The MQV1366e combines the MQ Series LF/MF/HF components
into a full-range, single-enclosure loudspeaker. It is horizon-
tally configured for arraying in vertical columns. This arrange-
ment is typically used in sports arenas and other venues where
the array must address wide, vertical audience angles. The
MF/HF horns in the MQV1366e feature a rigid but well-damped
construction using wood veneer backed by structural foam. A
no-compromise design means the mid and high frequency
horns are truly large enough to provide optimal pattern con-
trol throughout each passband.
Application Usage: Install
Houses of Worship
Theatres
Performing Arts Centers
PERFORMANCE
Frequency Response
±3 dB 70 Hz to 15 kHz
-10 dB 50 Hz
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
MF/HF 108
Impedance (Ohms)
MF/HF 8
Power Handling, AES Standard (Watts)
MF/HF 400
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
Auditoriums
Arenas
Stadiums
LF 95
MF 109
HF 106
LF 8
MF 8
HF 8
LF 550
MF 400
HF 150
508 234 6158
SPECIFICATIONS MQV1366e
Calculated Maximum Output (dB SPL @ 1m)
LF Peak/Long Term 128/122
MF/HF Peak/Long Term 140/134
MF Peak/Long Term 141/135
HF Peak/Long Term 134/128
Nominal Coverage Angle, -6 dB Points (degrees)
Recommended High-Pass Frequency
PHYSICAL
Enclosure Materials Exterior grade Baltic birch plywood
Suspension Hardware 16x 3/8"-16 threaded mounting
Dimensions
Trapezoid Angle 12.5 Degrees per Side
Weights
Shipping Weight 240
Toll Free 800 992 5013 FAX 508 234 8251
MQV1366e/0002690/002/2 pp October 2003
Horizontal 60
Vertical 60
24 dB/Octave 50 Hz
LF Subsystem 1x 15-in woofer
MF Subsystem 1x 10-in horn loaded cone
HF Subsystem 2-in exit/3-in diaphragm com-
pression driver on constant
directivity horn
Configuration Three-way, full range
Powering Bi- or Tri-amplified
Finish Wear-resistant textured black paint
Connectors Terminal barrier strip
points (4 each on top, bottom
and sides
Grille Powder coated perforated steel
inches millimeters
Height (front) 26.65 677
Height (rear) 15.3 389
Width 56.25 1429
Depth 25.59 650
pounds kilograms
Net Weight 215 97.7
109.1
