1.

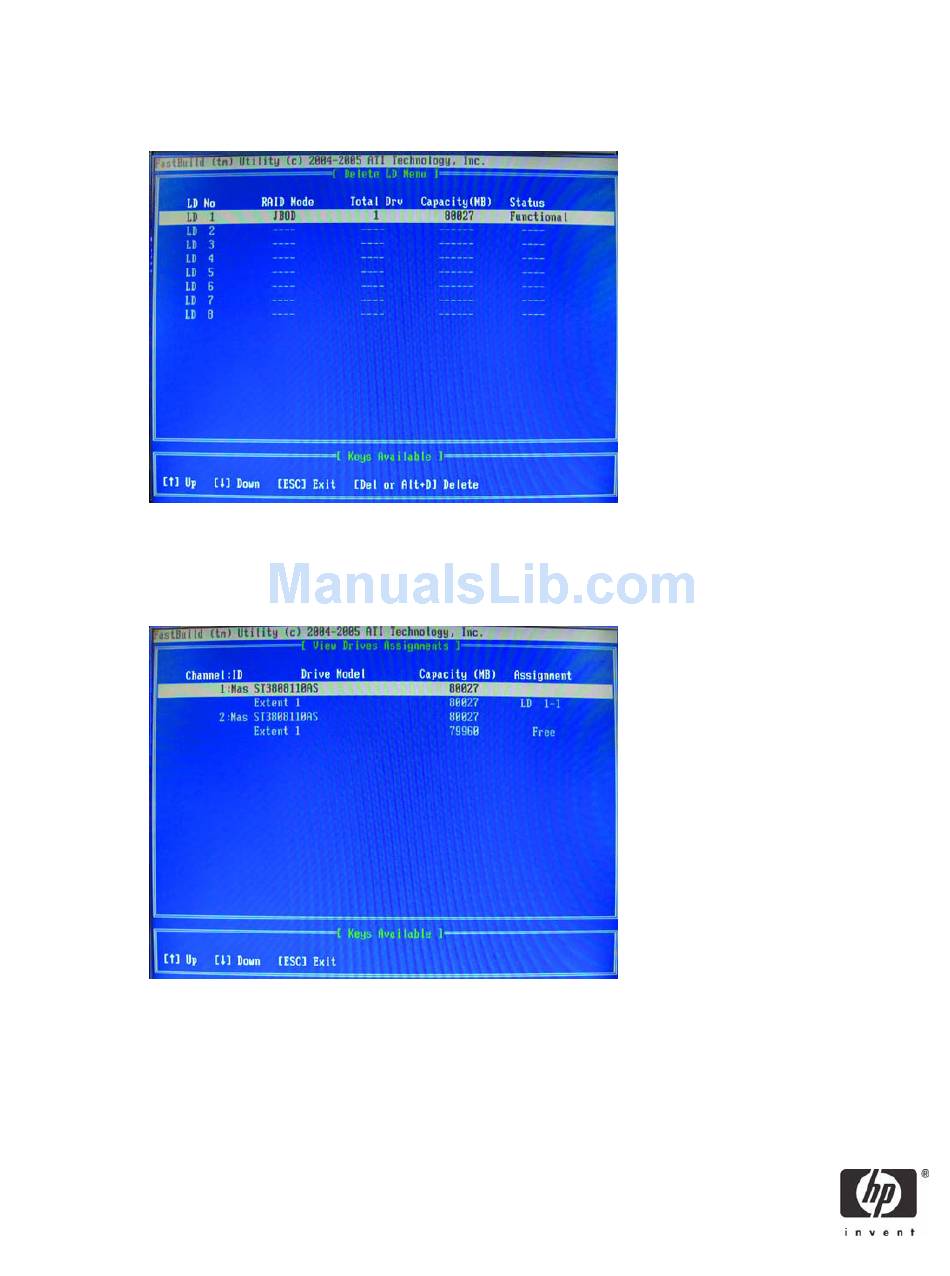

From the Main Menu press 3 to access the Delete LD screen. Use the arrow keys to select the drives.
Press Del or Alt + D to delete the drives. At the prompt, press Ctrl + Y to delete or any other key to
abort. Repeat until all drives are deleted. Press Esc to return to the main menu.
2.
Press 1 to access the View Drive Assignments screen. The screen displays a detailed description of
available physical drives, including channel, size and status. Press Esc to exit and return to the main
menu.
13
