TA B L E O F C O N T E N T S Important Safety Instructions ......2-4 Solutions to Common Problems ....... 18-19 Features ...............5 Warranty ............20 Operating Instructions ........6-16 Español .............. 21 Care and Cleaning ..........17 www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352...
IMPORTANT SAFETY INSTRUCTIONS WARNING WARNING For your safety the following information in this manual Please read all instructions before using this dryer. must be followed to minimize the risk of ﬁ re or explosion or to prevent property damage, personal injury or death. Recognize safety symbols, words and Do not store or use gasoline or other ﬂ...
IMPORTANT SAFETY INSTRUCTIONS 240 v Electric Dryer 240 v Electric Dryer 120 v Gas Dryer 120 v Gas Dryer Grounding type Grounding type wall receptacl ll receptacle 10-30R 10-30R UL-approved service UL-approved service 3-wire 3-wire Do not, Do not, under under cord must be installed cord must be installed...
IMPORTANT SAFETY INSTRUCTIONS PROTECT CHILDREN • ALWAYS disconnect the dryer from the electrical supply • Do not allow children to play on or in the dryer. Close before attempting any service or cleaning. Failure to do so supervision of children is necessary when the dryer is can result in electrical shock or injury.

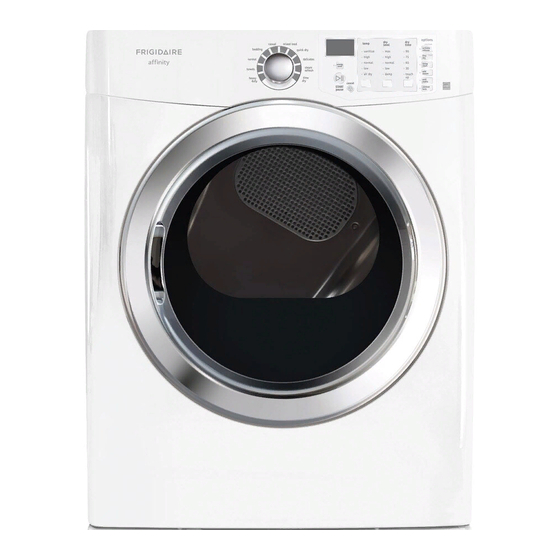

FEATURES Cycle Selector LCD Display Control Lock Reversible Door Drum Light Large Surface Moisture Sensor Door Latch Exhaust Channel Outlet Door Strike Adjustable Leveling Legs Heavy Duty Drying Rack* Lint Filter Stacking Kit for Mounting on Matching Washer* *Not all models come with drying rack and stacking kit from the factory.
OPERATING INSTRUCTIONS Normal Operating Sounds You may or may not hear the following sounds from your new dryer: A. WATER VALVE (Steam models only.) The ﬂ ow of water is controlled by electric solenoids. During operation there may be a clicking sound as the valve opens and closes to control the water ﬂ...
OPERATING INSTRUCTIONS Operating Your Dryer, continued • Adjustments made to a cycle will be remembered and Check that the lint ﬁ lter is recalled each time that cycle is selected in the future. clean and in place. To return to factory settings, press these CAUTION two buttons at the...
OPERATING INSTRUCTIONS Specialty Cycles may include, but not limited to: • jeans • pet beds • kids wear • stuffed toys • bedding • warm up This manual covers many models and not all cycles, options, or features listed are available on every model. Consoles shown above for reference only.
OPERATING INSTRUCTIONS Cycle Selection, continued Auto Dry Cycles Timed Dry Cycles Auto Dry cycles take the guesswork out of selecting the correct drying time for each load. Moisture sensing bars WARNING at the back of the dryer drum sense the moisture level of the load as it tumbles through the heated air.
OPERATING INSTRUCTIONS Specialty Cycle Selection Specialty Cycles (on select models) Turn the cycle selector to specialty cycles to access stuffed toys additional custom cycles. Scroll through the cycles by Select this specialty cycle for drying stuffed animals and pressing the outer buttons under the LCD screen. soft toys that can be tumble dried.
OPERATING INSTRUCTIONS Cycle Settings high For best results Recommended for most cotton fabrics. Follow the fabric care label instructions normal on items to be dried. Recommended for wrinkle free, easy care, lightweight Appropriate drying Temperature, Dryness Level and fabrics and bulky loads. Options will automatically be displayed for each cycle.
OPERATING INSTRUCTIONS Cycle Options To add options, press the corresponding options buttons line dry to illuminate the selections desired. To delete options, Select this option to simulate hanging your laundry in press the options buttons again and the indicator lights a summer breeze combined with the wrinkle-releasing will turn off.
OPERATING INSTRUCTIONS Other Features Drying Rack (on select models) rear Use the drying rack for items which should not be tumble front support legs dried. Insert the rack into the dryer drum, resting the back support on the moisture sensor bars and the front legs on the air grill.
OPERATING INSTRUCTIONS Dryer Settings Chart These Temperatures, Dryness Levels and Options are available with the following cycles: temp sanitize high normal air dry dry level high normal damp options energy saver add steam wrinkle release line dry delay start press & hold chime anti static control lock = Available selections.
OPERATING INSTRUCTIONS Dryer Settings Chart These Temperatures, Dryness Levels and Options are available with the following cycles: specialty cycles temp sanitize high normal air dry dry level high normal damp options allergy energy saver add steam wrinkle release line dry delay start shrink guard anti static...
CARE AND CLEANING WARNING WARNING FIRE HAZARD To reduce risk of ﬁ re or serious injury to persons or property, A clothes dryer produces combustible lint. The comply with the basic warnings listed in the Important dryer must be connected to an outdoors exhaust. Safety Instructions and those listed below.
SOLUTIONS TO COMMON PROBLEMS Common Drying Problems Many drying problems involve poor cleaning results, poor soil and stain removal, residues of lint and scum, and fabric damage. For satisfactory drying results, follow these suggestions provided by The Soap and Detergent Association. PROBLEM POSSIBLE CAUSES SOLUTIONS...
SOLUTIONS TO COMMON PROBLEMS Avoid Service Checklist Before calling for service, review this list. It may save both time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this dryer. OCCURRENCE POSSIBLE CAUSE SOLUTION Dryer does not start.
MAJOR APPLIANCE WARRANTY INFORMATION For the applicable warranty period as set forth below, as measured from your original date of purchase, Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
