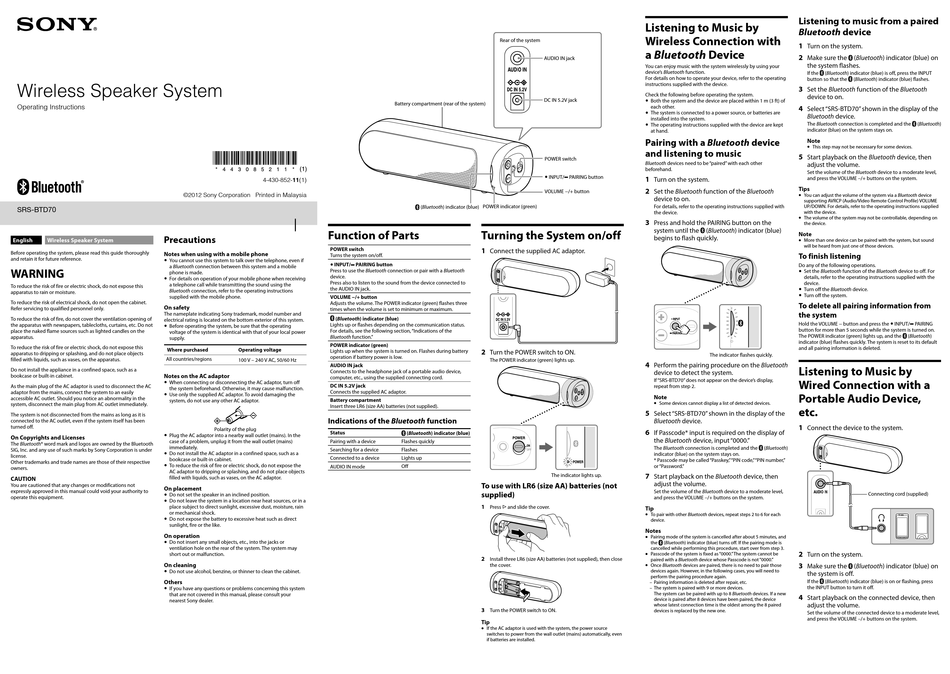

Wireless Speaker System
Operating Instructions
©2012 Sony Corporation Printed in Malaysia
SRS-BTD70
Precautions
English
Wireless Speaker System
Before operating the system, please read this guide thoroughly
Notes when using with a mobile phone
and retain it for future reference.
You cannot use this system to talk over the telephone, even if
a Bluetooth connection between this system and a mobile
WARNING
phone is made.
For details on operation of your mobile phone when receiving
a telephone call while transmitting the sound using the
To reduce the risk of fire or electric shock, do not expose this
Bluetooth connection, refer to the operating instructions
apparatus to rain or moisture.
supplied with the mobile phone.
To reduce the risk of electrical shock, do not open the cabinet.
On safety
Refer servicing to qualified personnel only.
The nameplate indicating Sony trademark, model number and
To reduce the risk of fire, do not cover the ventilation opening of
electrical rating is located on the bottom exterior of this system.
the apparatus with newspapers, tablecloths, curtains, etc. Do not
Before operating the system, be sure that the operating
place the naked flame sources such as lighted candles on the
voltage of the system is identical with that of your local power
apparatus.
supply.
To reduce the risk of fire or electric shock, do not expose this
Where purchased
apparatus to dripping or splashing, and do not place objects
filled with liquids, such as vases, on the apparatus.
All countries/regions
Do not install the appliance in a confined space, such as a
Notes on the AC adaptor
bookcase or built-in cabinet.
When connecting or disconnecting the AC adaptor, turn off
As the main plug of the AC adaptor is used to disconnect the AC
the system beforehand. Otherwise, it may cause malfunction.
adaptor from the mains, connect the system to an easily
Use only the supplied AC adaptor. To avoid damaging the
accessible AC outlet. Should you notice an abnormality in the
system, do not use any other AC adaptor.
system, disconnect the main plug from AC outlet immediately.
The system is not disconnected from the mains as long as it is
connected to the AC outlet, even if the system itself has been
turned off.
Plug the AC adaptor into a nearby wall outlet (mains). In the
On Copyrights and Licenses
case of a problem, unplug it from the wall outlet (mains)
The Bluetooth® word mark and logos are owned by the Bluetooth
immediately.
SIG, Inc. and any use of such marks by Sony Corporation is under
Do not install the AC adaptor in a confined space, such as a
license.
bookcase or built-in cabinet.
Other trademarks and trade names are those of their respective
To reduce the risk of fire or electric shock, do not expose the
owners.
AC adaptor to dripping or splashing, and do not place objects
filled with liquids, such as vases, on the AC adaptor.
CAUTION
You are cautioned that any changes or modifications not
On placement
expressly approved in this manual could void your authority to
Do not set the speaker in an inclined position.
operate this equipment.
Do not leave the system in a location near heat sources, or in a
place subject to direct sunlight, excessive dust, moisture, rain
or mechanical shock.
Do not expose the battery to excessive heat such as direct
sunlight, fire or the like.
On operation
Do not insert any small objects, etc., into the jacks or
ventilation hole on the rear of the system. The system may
short out or malfunction.
On cleaning
Do not use alcohol, benzine, or thinner to clean the cabinet.
Others
If you have any questions or problems concerning this system
that are not covered in this manual, please consult your
nearest Sony dealer.
4-430-852-11(1)
Function of Parts
POWER switch
Turns the system on/off.
INPUT/ PAIRING button
Press to use the Bluetooth connection or pair with a Bluetooth
device.
Press also to listen to the sound from the device connected to
the AUDIO IN jack.
VOLUME −/+ button
Adjusts the volume. The POWER indicator (green) flashes three
times when the volume is set to minimum or maximum.
(Bluetooth) indicator (blue)
Lights up or flashes depending on the communication status.
For details, see the following section, "Indications of the
Bluetooth function. "
POWER indicator (green)
Operating voltage
Lights up when the system is turned on. Flashes during battery
operation if battery power is low.
100 V – 240 V AC, 50/60 Hz
AUDIO IN jack
Connects to the headphone jack of a portable audio device,
computer, etc., using the supplied connecting cord.
DC IN 5.2V jack
Connects the supplied AC adaptor.
Battery compartment
Insert three LR6 (size AA) batteries (not supplied).
Indications of the Bluetooth function
Polarity of the plug
Status
Pairing with a device
Searching for a device
Connected to a device
AUDIO IN mode
Rear of the system
AUDIO IN jack
DC IN 5.2V jack
Battery compartment (rear of the system)
POWER switch
INPUT/ PAIRING button
VOLUME −/+ button
(Bluetooth) indicator (blue) POWER indicator (green)
Turning the System on/off
1
Connect the supplied AC adaptor.
2
Turn the POWER switch to ON.
The POWER indicator (green) lights up.
(Bluetooth) indicator (blue)
Flashes quickly
Flashes
Lights up
Off
The indicator lights up.
To use with LR6 (size AA) batteries (not
supplied)
1
Press and slide the cover.
2
Install three LR6 (size AA) batteries (not supplied), then close
the cover.
3
Turn the POWER switch to ON.
Tip
If the AC adaptor is used with the system, the power source
switches to power from the wall outlet (mains) automatically, even
if batteries are installed.
Listening to music from a paired
Listening to Music by
Bluetooth device
Wireless Connection with
1
Turn on the system.
a Bluetooth Device
2
Make sure the (Bluetooth) indicator (blue) on
the system flashes.
You can enjoy music with the system wirelessly by using your
device's Bluetooth function.
If the
(Bluetooth) indicator (blue) is off, press the INPUT
For details on how to operate your device, refer to the operating
button so that the
instructions supplied with the device.
3
Set the Bluetooth function of the Bluetooth
Check the following before operating the system.
device to on.
Both the system and the device are placed within 1 m (3 ft) of
each other.
4
Select "SRS-BTD70" shown in the display of the
The system is connected to a power source, or batteries are
Bluetooth device.
installed into the system.
The Bluetooth connection is completed and the
The operating instructions supplied with the device are kept
indicator (blue) on the system stays on.
at hand.
Pairing with a Bluetooth device
Note
This step may not be necessary for some devices.
and listening to music
5
Start playback on the Bluetooth device, then
Bluetooth devices need to be "paired" with each other
adjust the volume.
beforehand.
Set the volume of the Bluetooth device to a moderate level,
1
and press the VOLUME –/+ buttons on the system.
Turn on the system.
Tips
2
Set the Bluetooth function of the Bluetooth
You can adjust the volume of the system via a Bluetooth device
device to on.
supporting AVRCP (Audio/Video Remote Control Profile) VOLUME
For details, refer to the operating instructions supplied with
UP/DOWN. For details, refer to the operating instructions supplied
with the device.
the device.
The volume of the system may not be controllable, depending on
3
Press and hold the PAIRING button on the
the device.
system until the (Bluetooth) indicator (blue)
Note
begins to flash quickly.
More than one device can be paired with the system, but sound
will be heard from just one of those devices.
To finish listening
Do any of the following operations.
Set the Bluetooth function of the Bluetooth device to off. For
details, refer to the operating instructions supplied with the
device.
Turn off the Bluetooth device.
Turn off the system.
To delete all pairing information from
the system
Hold the VOLUME − button and press the INPUT/ PAIRING
button for more than 5 seconds while the system is turned on.
The POWER indicator (green) lights up, and the
indicator (blue) flashes quickly. The system is reset to its default
and all pairing information is deleted.
The indicator flashes quickly.
4
Perform the pairing procedure on the Bluetooth
Listening to Music by
device to detect the system.
If "SRS-BTD70" does not appear on the device's display,
Wired Connection with a
repeat from step 2.
Portable Audio Device,
Note
Some devices cannot display a list of detected devices.
etc.
5
Select "SRS-BTD70" shown in the display of the
Bluetooth device.
1
Connect the device to the system.
6
If Passcode* input is required on the display of
the Bluetooth device, input "0000. "
The Bluetooth connection is completed and the
(Bluetooth)
indicator (blue) on the system stays on.
* Passcode may be called "Passkey, " "PIN code, " "PIN number, "
or "Password. "
7
Start playback on the Bluetooth device, then
adjust the volume.
Set the volume of the Bluetooth device to a moderate level,
and press the VOLUME –/+ buttons on the system.
Tip
To pair with other Bluetooth devices, repeat steps 2 to 6 for each
device.
Notes
Pairing mode of the system is cancelled after about 5 minutes, and
the
(Bluetooth) indicator (blue) turns off. If the pairing mode is
cancelled while performing this procedure, start over from step 3.
2
Turn on the system.
Passcode of the system is fixed as "0000. " The system cannot be
paired with a Bluetooth device whose Passcode is not "0000. "
3
Once Bluetooth devices are paired, there is no need to pair those
Make sure the (Bluetooth) indicator (blue) on
devices again. However, in the following cases, you will need to
the system is off.
perform the pairing procedure again.
If the
(Bluetooth) indicator (blue) is on or flashing, press
–
Pairing information is deleted after repair, etc.
–
the INPUT button to turn it off.
The system is paired with 9 or more devices.
The system can be paired with up to 8 Bluetooth devices. If a new
4
Start playback on the connected device, then
device is paired after 8 devices have been paired, the device
adjust the volume.
whose latest connection time is the oldest among the 8 paired
devices is replaced by the new one.
Set the volume of the connected device to a moderate level,
and press the VOLUME –/+ buttons on the system.
(Bluetooth) indicator (blue) flashes.
(Bluetooth)
(Bluetooth)
Connecting cord (supplied)
