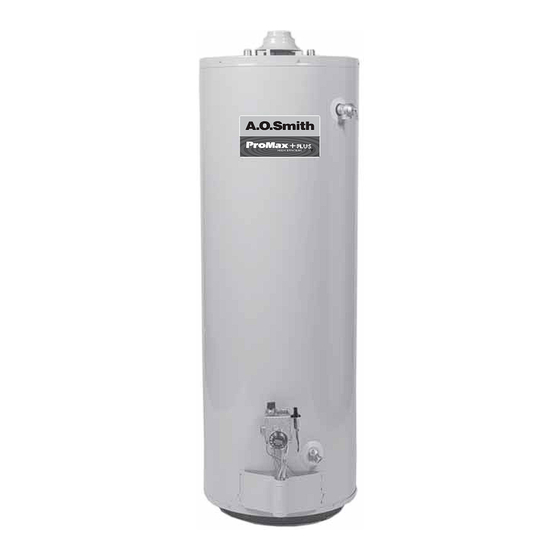

A.O. Smith Series 200 Specification Sheet

FEATURES
MEETS ENERGY-EFFICIENCY REQUIREMENTS
FOR MOST GAS UTILITY REBATE PROGRAMS
2" Thick CFC-free foam insulation, external heat traps and other energy-saving
features produce minimum .62 Energy Factor, which meet ENERGY STAR
DYNACLEAN™ DIFFUSER DIP TUBE
Helps reduce lime and sediment buildup, maximizes hot water output. Made from
long-lasting PEX cross-linked polymer.
GREEN CHOICE® GAS BURNER
Patented "Eco-Friendly" design reduces NOx emissions by up to 33% and meets less
than 40 ng/j requirements for low NOx.
COREGARD™ ANODE ROD
An A. O. Smith exclusive. Aluminum anode has stainless steel core, protects tank
against corrosion longer than ordinary steel anodes.
PUSH-BUTTON PIEZO IGNITOR
Makes lighting pilot fast and easy with one-hand push-button spark ignition.
DURABLE TAMPER-RESISTANT BRASS DRAIN VALVE
BLUE DIAMOND ® GLASS COATING
Provides superior corrosion resistance to industry-standard glass lining.
CSA CERTIFIED AND ASME RATED T&P RELIEF VALVE
Top-mounted T&P relief valve available as option on all models.
CODE COMPLIANCE
UBC, CEC, SBCC, HUD and BOCA National Codes. Meets or exceeds the thermal
efficiency and standby loss requirements of the U.S. Department of Energy and
current edition of ASHRAE/IESNA 90.1. Meets or exceeds the Federal Energy Efficiency
Standards effective January 20, 2004, according to the National Appliance Energy
Conservation Act (NAECA) of 1992.
DESIGN-CERTIFIED BY CSA INTERNATIONAL
According to ANSI Z21.10.1 - 4.1 CSA Standards governing storage-type water heaters.
FLAMMABLE VAPOR IGNITION RESISTANT COMPLIANT
See other side.
6-YEAR LIMITED TANK AND PARTS WARRANTY
For complete information, consult written warranty or A. O. Smith Water
Products Company.
June 2010R
Residential Gas Water Heaters
®
® requirements.
HIGH EFFICIENCY
MODELS
ARE ENERGY STAR
QUALIFIED
SERIES 200/201
®
HIGH EFFICIENC HIGH EFFICIENC
PLUS PLUS
Y Y
HIGH EFFICIENC HIGH EFFICIENC
+
PLUS PLUS
®
HIGH EFFICIENC Y Y Y
®
Page 1 of 2
AOSRG45350
