Profiler
User Manual

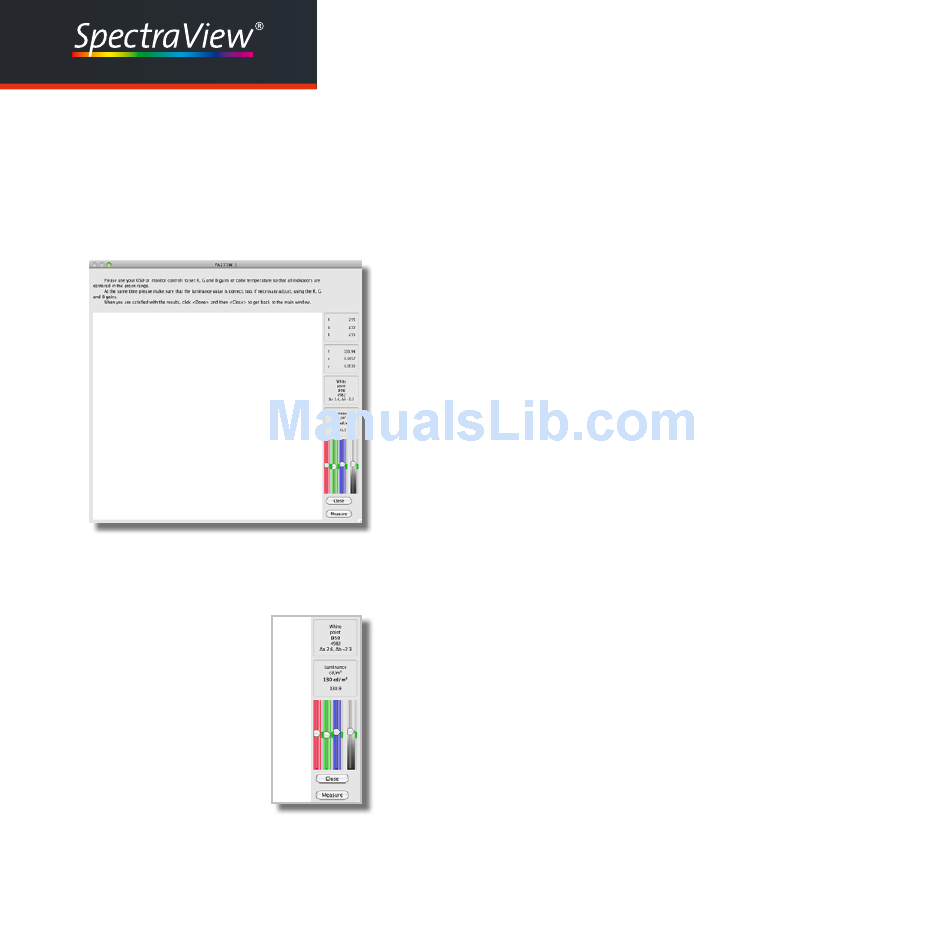

Measurement window for presetting the color tempera-
ture and the luminance of the monitor.
Color temperature of a LCD. This
monitor needs some corrections on
the brightness via the monitors OSD.
First a few color patches will be measured. Do not adjust anything
in the OSD during this process.
Then (after a few measurements) the software will toggle between two
white patches (RGB = 255 and RGB = 242).
Now you can adjust the color temperature via the OSD until the correct
color temperature has been achieved.
All the indicators in the diagram on the right have to be on the same
level in the green area of the diagram.
The measurement value has to be as close as possible to the desired
value.
If this is not possible, set the color temperature to a value which is
slightly higher than the desired value (about 50 - 500 K).
This measurement will not stop until you cancel it manually by clicking
the <Done> button. Before you do this, please check, if the luminance
is set to the desired value.
