X401S Installation Guide
40" LCD Display

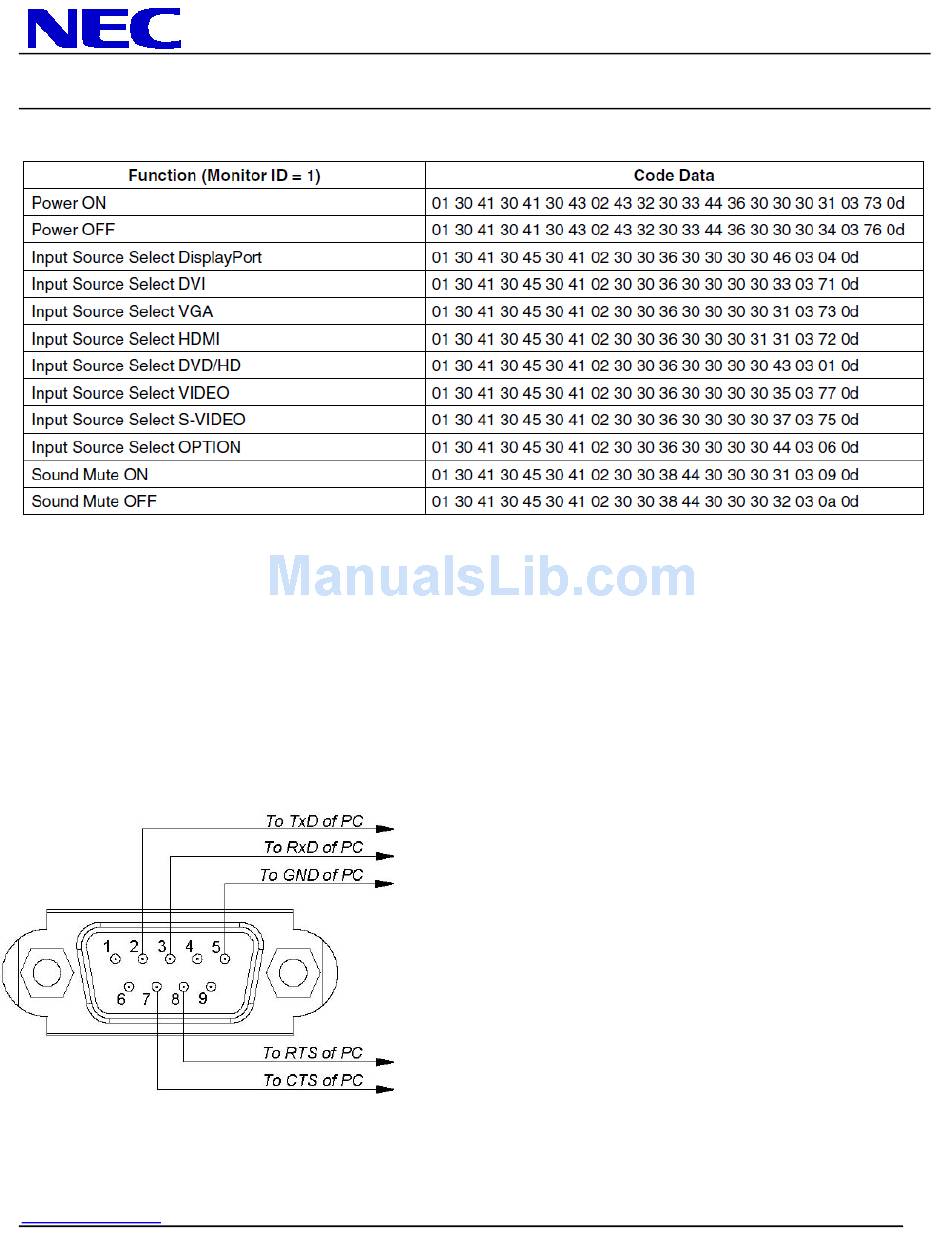

Control Codes:

NOTE: Contact your NEC rep for codes not listed.
NOTE: Use a cross/reverse/null modem cable.

Cable Connection:

Communication Protocol:
Interface:
RS-232C
Communication: Asynchronous
Baud Rate:
9600 bps
Data Length:
8 bits
PC Control Connector (D-Sub 9P)
NOTE: If so desired, jumper "Request to send" and "Clear to Send" together on both ends of the cable to simplify cable connection.
These connections are not required. The only connections required are pins 2 (TxD), 3 (RxD) and 5 (GND).
www.necdisplay.com
Parity:
None
Stop Bit: 1 bit
Communication Code: Hex
NEC Display Solutions of America, Inc.
X401S
Rev 1.0
Page 9 of 9
