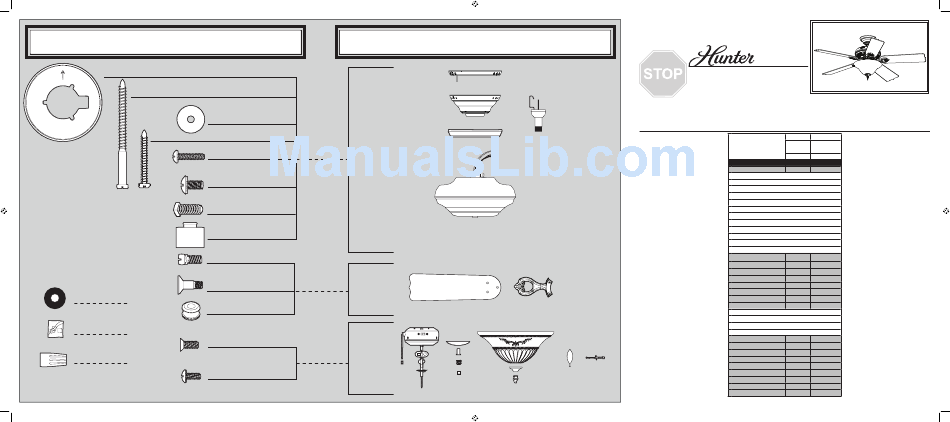

Hunter 21575 Parts Manual

Hardware
(Drawn to Scale)
Low Profile
x 1
Washer
x 2
x 4
Flat Washer
x 2
Screw, Low
x 3
Profile
x 4
Canopy Screw
x 1
Setscrew
x 4
Screw, Blade
x 11
Iron Armature
Screw, Blade
x 16
Assembly
Black
Neoprene
x 2
Washers
Blade
x 16
Grommet
Balancing
x 1
Kit
Screw, Switch
x 3
Housing Assembly
Wire
x 4
Connector
Screw,
x 3
Machine, 6-32
3" Wood Screw
Hanger
Bracket
Assembly
1.5" Wood Screw
Mounting Isolator
Blade
Assembly
Switch
Housing
Assembly
Fan Parts
(Not Drawn to Scale)
PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all Using this Parts Guide, make sure all Using this Parts Guide, make sure all
parts are included in the box. parts are included in the box. parts are included in the box.
If parts are missing, DO NOT RETURN If parts are missing, DO NOT RETURN If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance. THIS ITEM TO THE STORE, call 888-830-1326 for assistance. THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY. THIS PARTS GUIDE IS FOR REFERENCE ONLY. THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS. REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS. REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model # 21575
Parts List
Asm. Dwg. # 94353-01
Finish Antique Pewter
Item Name Qnty Part #
* Hanging System Kit 1 94422-14
Ceiling Plate
Canopy
Setscrew
Canopy Trim Ring
Low Profile Washer
Canopy Screw
Wood Screw 1.5"
Wood Screw 3"
Flat Washer
Mounting Isolator
Black Neoprene Washer
Screw, Low Profile
* 1 74290-02
Hanger Ball / Downrod Assembly
Switch Housing Assembly 1 99036-14
Blade Iron Set 1 92586-05
Blade Set 1 75006-34
Screw, Blade Iron Armature 11 63755-05
Light Kit Assembly 1 96942-02
Light bulb / Bulb 2 77646-04
Hardware Kit 1 94353-00-860
Blade Grommet
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Balancing Kit 1 07570-01
Pull Chain 1 63756-18
Globe/Shade 1 74809-01
Bottom Cap 1 64349-02
Finial 1 74833-01
Cap, Switch Housing 1 73853-01
Plug Button 1 73854-01
Dummy Terminal, Male 1 08200-01
Dummy Terminal, Female 1 08198-01
Hunter Fan Company • 7130 Goodlett Farms Pkwy. #400 • Memphis, TN 38016 • www.hunterfan.com • 98000-01-605 11-19-2010 • 2010
©
