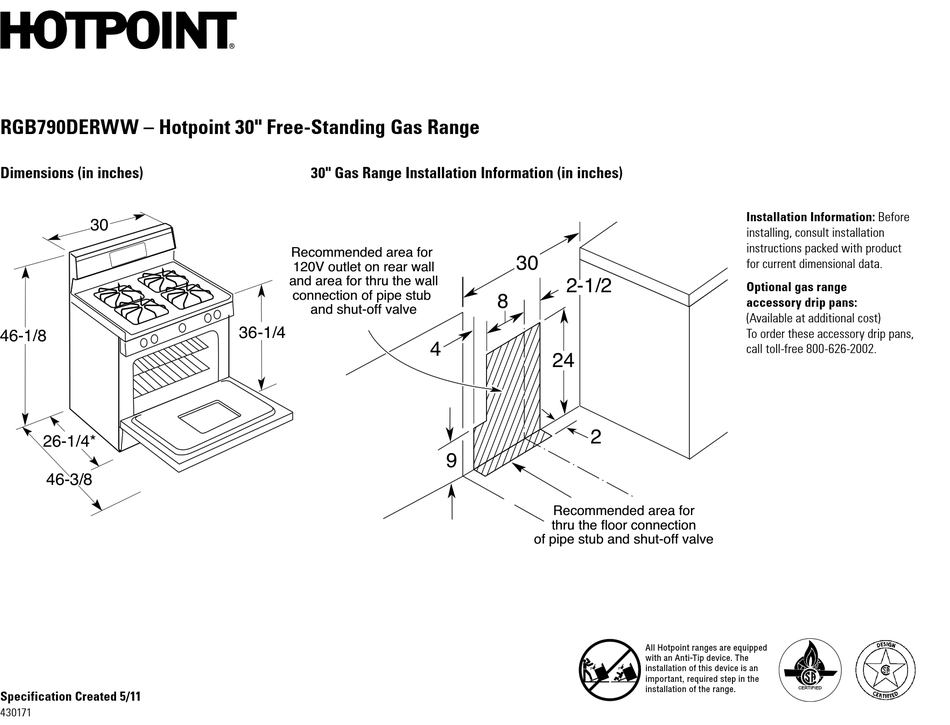

RGB790DERWW – Hotpoint 30" Free-Standing Gas Range
Dimensions (in inches)
30
46-1/8
26-1/4*
46-3/8
30
2-1/2
Specification Created 5/11
8
430171
*Depth from wall
to front of closed
oven door.
30" Gas Range Installation Information (in inches)
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
36-1/4
Recommended common area
for gas outlet and electrical outlet
26-1/4*
46-3/8
30
2-1/2
8
4
24
2
9
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended common area
for gas outlet and electrical outlet
Installation Information: Before
installing, consult installation
instructions packed with product
for current dimensional data.
Optional gas range
accessory drip pans:
(Available at additional cost)
To order these accessory drip pans,
call toll-free 800-626-2002.
All Hotpoint ranges are equipped
with an Anti-Tip device. The
installation of this device is an
important, required step in the
installation of the range.
CERTIFIED
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hotpoint RGB790DERWW
Summary of Contents for Hotpoint RGB790DERWW
- Page 1 26-1/4* 46-3/8 *Depth from wall to front of closed RGB790DERWW – Hotpoint 30" Free-Standing Gas Range oven door. Dimensions (in inches) 30" Gas Range Installation Information (in inches) Recommended common area for gas outlet and electrical outlet Installation Information: Before...
- Page 2 RGB790DERWW – Hotpoint 30" Free-Standing Gas Range Features and Benefits • S elf-clean oven - Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior • E xtra-large oven capacity - Enough room to cook an entire meal at once • S ealed cooktop burners - Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless • P erformance plus burner - This 13,000 BTU burner element provides the high heat ideal for frying or sautéing and fast heat-up • S immer setting - Simmer setting allows for low, even heat distribution for delicate foods...
