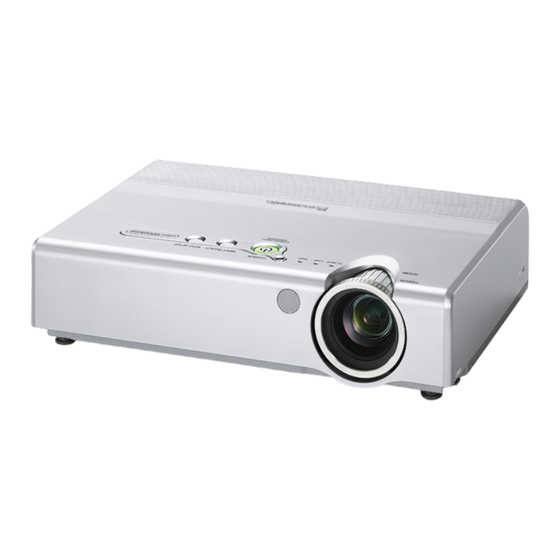

Panasonic PT-LB55NTE Operating Instructions Manual
Lcd projector commercial use
Hide thumbs
Also See for PT-LB55NTE:
- Operating instructions manual (72 pages) ,
- Function manual (70 pages) ,
- Operating instructions manual (72 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Function Manual
Advertisement
Table of Contents
Related Manuals for Panasonic PT-LB55NTE
Summary of Contents for Panasonic PT-LB55NTE
-
Page 1: Lcd Projector
LCD Projector Commercial Use Operating Instructions PT-LB60NTE Model No. PT-LB55NTE Before operating this product, please read the instructions carefully and save this manual for future use. TQBJ 0195... - Page 3 WARNING: B For permanently connected equipment, a readily accessible disconnect device shall be incorporated in the building installation wiring; B For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. CAUTION: To assure continued compliance, follow the attached installation instructions, which includes using the provided power cord and shielded interface cables when connecting to computer or peripheral device.
-
Page 4: Table Of Contents
Contents Preparation DAYLIGHT VIEW, AI, DETAILED SETUP IMPORTANT SAFETY NOTICE ...2 Adjusting the position....44 Precautions with regard to REALTIME KEYSTONE, safety .........5 KEYSTONE, POSITION, DOT Accessories .........9 CLOCK, CLOCK PHASE, ASPECT, Before use ........10 RESIZING, FRAME LOCK Location and function of each Changing the display part...........12 language........48... -
Page 5: Precautions With Regard To Safety
Precautions with regard to safety WARNING If you notice smoke, strange smells or noise coming from the projector, disconnect the mains plug from the mains socket. B Do not continue to use the projector in such cases, otherwise fire or electric shocks could result. - Page 6 B If the mains lead is used while damaged, electric shocks, short-circuits or fire may result. B Ask an Authorised Service Centre to carry out any repairs to the mains lead that might be necessary. Do not handle the mains plug with wet hands. B Failure to observe this may result in electric shocks.
- Page 7 Do not look into the lens while the projector is being used. B Strong light is emitted from the projector’s lens. If you look directly into this light, it can hurt and damage your eyes. B Be especially careful not to let young children look into the lens. In addition, disconnect the mains plug when you are away from the projector.
- Page 8 Always disconnect all cables before moving the projector. B Moving the projector with cables still attached can damage the cables, which could cause fire or electric shocks to occur. Do not place any heavy objects on top of the projector. B Failure to observe this may cause the projector to become unbalanced and fall, which could result in damage or injury.
-
Page 9: Accessories
Ask an Authorised Service Centre to clean inside the projector at least once a year. B If dust is left to build up inside the projector without being cleaned out, it can result in fire or problems with operation. B It is a good idea to clean the inside of the projector before the season for humid weather arrives. -
Page 10: Before Use
Before use Caution when moving the projector Be sure to attach the lens cover before moving the projector. The projection lens is extremely susceptible to vibration and shocks. When moving the projector, use the accessory carrying bag. When placing the projector inside the carrying bag, position it so that the lens is facing upward. -
Page 11: Notes On Use
Notes on use In order to get the best picture quality Draw curtains or blinds over any windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen. Do not touch the surfaces of the lens with your bare hands. -
Page 12: Location And Function Of Each Part
Location and function of each part Projector <Top, right and front> & # Projector control panel (page 14) $ Zoom ring (page 27) % Focus ring (page 27) & Security lock This can be used to connect a commercially-available theft-prevention cable (manufactured by Kensington). - Page 13 Projector <Back and bottom> & # Connector panel (page 16) $ Air outlet port Do not cover this port. % Speaker & Front adjustable legs (L/R) (page 27) ' Air inlet port, Air filter (page 59) Do not cover this port. ( Lamp unit cover (page 60) NOTE: B During projection of an image, the cooling fan will operate, emitting a...
-
Page 14: Projector Control Panel
Projector control panel Menu operation # $ % & <on connector panel:page 16> Remote control unit # PC INPUT indicator This indicator illuminates when a signal is being input to the connector (PC 1 IN or PC 2 IN) selected using the input select buttons. 14-E NGLISH... - Page 15 $ LAMP indicator (page 58) This indicator illuminates when it is time to replace the lamp unit. It flashes if a circuit abnormality is detected. % TEMP indicator (page 57) This indicator illuminates if an abnormally high temperature is detected inside the projector or around it.
-
Page 16: Connector Panel
(continued from previous page) 1 DIRECT INPUT SELECT buttons (pages 27 and 30) You can select the input signal directly by pushing these buttons. 2 SHUTTER button (page 32) This button is used to momentarily turn off the picture and sound. You can also select this function from the on-screen menu (refer to page 53). - Page 17 % PC 2 IN/PC 1 OUT connector (pages 21, 22 and 50) This connector is used to input or output RGB signals and YP signals. Adjust “PC2 SELECT” in the “OPTION” menu to select whether you want input or output with this connector. &...
-
Page 18: Setting-Up
Setting-up Projection methods In way of installing projector, any one of the following four projection methods are used. Select whichever projection method matches the setting-up method. (The projection method can be set from the “OPTION” menu. Refer to page 52 for details.) BFront-desk projection BFront-ceiling projection Menu item... -
Page 19: Projector Position
Projector position Top edge of screen Projection distance Screen SH: Image height SW:Image width H1: Distance from centre Bottom edge of screen of lens to bottom edge of projected image Screen NGLISH... -
Page 20: Projection Distances
7.2 m(23´7˝) 0.42 m(16-17/32˝) 6.35 m(250˝) 7.6 m(24´11˝) 9.0 m(29´6˝) 0.53 m(20-27/32˝) 7.62 m(300˝) 9.1 m(29´10˝) 10.8 m(35´5˝) 0.63 m(24-25/32˝) PT-LB55NTE 4:3 Screen size Projection distance (L) Height position (diagonal) (H1) Wide (LW) Telephoto (LT) 0.84 m(33˝) — 1.2 m(3´11˝) 0.05 m(1-15/16˝) -
Page 21: Connections
Connections Notes on connections B Read the instruction manual for each peripheral device carefully before connecting it. B Turn off the power supply for all peripheral devices before making any connections. B If the cables necessary for connection are not included with the peripheral device or available as an option, you may need to prepare a proper cable for the device concerned. -
Page 22: Connecting To Video Equipment
Connecting to video equipment (1) D-sub15-pin (male) - BNCx5 (male) adapter cable Red (connect to P signal connector) Blue (connect to P signal connector) Green (connect to Y signal connector) Computer for control use DVD player (with component video connectors) BNC/RCA adapter DIN 8-pin (male) - Page 23 Connecting to video equipment (2) Computer for control use DVD player Serial adapter (ET-ADSER : sold separately) DIN 8-pin (male) Audio system Video deck NGLISH...
-
Page 24: Preparation For The Remote Control Unit
Preparation for the remote control unit #While pressing the tab, lift the battery cover to remove it. $ Insert the batteries into the battery holder so that the polarities are correct. AAA batteries (two) % Replace the battery cover (a click will be heard). NOTE: B Do not drop the remote control unit. - Page 25 NGLISH...
-
Page 26: Turning On The Power
Turning on the power Before turning on the power 1. Ensure that all peripheral devices are connected properly. 2. Remove the lens cover. AC IN socket Connector & & & Connect the accessory mains lead to the AC IN socket. BInsert the connector into the AC IN socket so that the shape of the connector matches the shape of the socket. -
Page 27: Adjusting The Angle
Select the input signal by pressing the INPUT & SELECT button or the DIRECT INPUT SELECT buttons. BA picture will be projected in accordance with the selected input signal. (page 30) BWhen “SIGNAL SEARCH” is set to “ON”, the projector detects which signals are being input, and uses these signals for projection. -
Page 28: Turning Off The Power
Turning off the power AC IN socket Connector Press the POWER button. BThe “POWER OFF” confirmation screen will be displayed. Press the POWER button again. BThe lamp unit will switch off and the picture will stop being projected. (The POWER button on the projector will illuminate orange while the cooling fan is still operating.) NOTE: BPress any button other than the POWER button to cancel the “POWER... -
Page 29: Direct Power Off Function
Direct power off function You can disconnect the mains lead during projection or immediately after use and move the projector. The cooling fan will operate by the internal power supply to cool down the lamp. B When this function is used, it may take more time for the lamp to turn back on again compared to when the lamp cools down with the mains lead connected. -
Page 30: Selecting The Input Signal
Selecting the input signal (INPUT SELECT/ DIRECT INPUT SELECT) You can select the input signal by pressing the INPUT SELECT button or the DIRECT INPUT SELECT buttons. Press the INPUT SELECT button. BThe input signal selected will change as shown below each time the INPUT SELECT button is pressed. -
Page 31: Correcting The Image Position Automatically
Correcting the image position automatically (AUTO SETUP) This projector can adjust the position of the image and the settings for “DOT CLOCK” and “CLOCK PHASE” when RGB signals are being input. Press the AUTO SETUP button while RGB signals are being projected. Screen Projected image... -
Page 32: Turning Off The Picture And Sound Momentarily
Turning off the picture and sound momentarily (SHUTTER) The “SHUTTER” function can be used to momentarily turn off the picture and sound from the projector when the projector is not being used for short periods of time, such as during breaks in meetings or when carrying out preparation. -
Page 33: Enlarging The Picture
Enlarging the picture (DIGITAL ZOOM) You can enlarge the projected image and move the enlarged area. Press the DIGITAL ZOOM +/- button. B The picture will then be enlarged to 1.5 times the normal size. BPress the MENU button to return to the normal screen. -
Page 34: Displaying Two Screens
Displaying two screens (INDEX WINDOW) This function lets you store a picture which is being projected into memory, so that you can display a still picture and a moving picture on the screen. Press the INDEX WINDOW button. B The current moving picture will be captured in a still window. -
Page 35: Displaying The Pointer
Displaying the pointer (POINTER) You can display the pointer on the projected images. Press the POINTER button. B A pointer will be displayed in the middle of the projected image. B Press the POINTER button to cancel the pointer display. Moving the pointer Press the FGIH buttons to move the pointer. -
Page 36: On-Screen Menus
On-screen menus Menu screens The various settings and adjustments for this projector can be carried out by selecting the operations from on-screen menus. The general arrangement of these menus is shown below. Menu Screen (When a VIDEO signal is being input) B Press the MENU button to display the menu screen. - Page 37 LANGUAGE menu (page 48) SECURITY menu (page 54) WIRELESS menu (page 56) OPTION menu (page 49) NGLISH...
-
Page 38: Menu Operation Guide
Menu operation guide # Press the MENU button. The menu screen will be displayed. $ Press the F F or G G button to select an item from the main menu on the left side. Menu operation (on connector panel) The selected item will be displayed in orange. -
Page 39: Factory Default
& Press the F F or G G button to select an Unavailable on- item, and then press the I I or H H screen menu items button to adjust the value or change This projector has the setting. unadjustable items and If adjusting the items in the “PICTURE”... -
Page 40: Adjusting The Picture
Adjusting the picture # Press the MENU button to display the menu screen. $ Select the “PICTURE” menu from the main menu, and then press the ENTER button. % Press the F or G button to select an item. & Press the I or H button to adjust the value or change the setting. For items with selective setting or a bar scale, the individual adjustment screen will be displayed. -
Page 41: Compatible Pictures
The mode best used in dark rooms COLOR TEMPERATURE is “NATURAL”. For rooms having regular lighting conditions in use, select “STANDARD”. For exceptionally bright rooms, use “DYNAMIC”. “BLACKBOARD” is available only This is used to adjust the white when “BLACKBOARD” in the areas of the picture if they appear “OPTION”... -
Page 42: Daylight View, Ai, Detailed
NOTE: B sRGB is only enabled when RGB signals are being input (when “LAMP POWER” is set to “STANDARD”, “AI” is set to The lamp is controlled according to “OFF”, and “DAYLIGHT VIEW” the input signals to project images is set to “OFF”). with the best quality. -
Page 43: Noise Reduction
TV-SYSTEM NOISE REDUCTION (S-VIDEO/VIDEO only) (S-VIDEO/VIDEO only) If the signal is of such poor quality that picture interference appears, set “NOISE REDUCTION” to “ON”. To turn off the “NOISE REDUCTION” feature, set to “OFF”. This should normally be set to “AUTO”. -
Page 44: Adjusting The Position
Adjusting the position # Press the MENU button to display the menu screen. $ Select the “POSITION” menu from the main menu, and then press the ENTER button. % Press the F or G button to select an item. (When RGB signals are being input, first press the AUTO SETUP button to initiate automatic positioning. -
Page 45: Realtime Keystone
will be stored by the projector Picture even after the power is turned off. condition POSITION Operation Press the F or Hbutton. (S-VIDEO/VIDEO/RGB/YP only) Picture condition Moves the picture position. Press the ENTER button to display the Operation Press the G or Ibutton. “POSITION”... - Page 46 S4:3 CLOCK” and “CLOCK PHASE” The size of the input signal is adjustments are carried out. compressed to 75% and projected. (This is useful for projecting a ASPECT picture with a 4:3 aspect ratio onto a 16:9 screen.) (S-VIDEO/VIDEO/480i, 576i, 480p and 576p YP only) When a 4:3 signal...
- Page 47 RESIZING NOTE: (S-VIDEO/VIDEO/RGB/YP only) B If using this projector in places such as cafes or hotels to display programmes for a commercial purpose or for This should normally be set to “ON”. public presentation, note that if (This setting is only for signals the aspect ratio (16:9) which have lower resolutions than selection function is used to...
-
Page 48: Changing The Display Language
Changing the display language # Press the MENU button to display the menu screen. $ Select the “LANGUAGE” menu from the main menu, and then press the ENTER button. % Press the F F or G G button to select a language, and then press the ENTER button. -
Page 49: Option Settings
You can select the level of the input signal The “Panasonic” logo will not be information. displayed when the power is turned NGLISH... -
Page 50: Lamp Power
POINTER SELECT LAMP POWER This setting changes the lamp brightness. When set to “ECO- If you press the POINTER button on MODE”, the luminance of the lamp the remote control unit, the pointer is reduced, but the projector uses will be displayed. You can select the less power, and the operating noise pointer from 3 types as shown is also reduced. -
Page 51: Power Off Timer, Direct
POWER OFF TIMER AUTO SETUP If no signal is input to the projector for the duration of the period you set, the projector will return to standby mode. The period can be This should normally be set to set from 15 minutes to 60 minutes in “AUTO”. -
Page 52: B P R
INSTALLATION RGB/YP (480i, 576i, 480p, 576p, 1 080/60i, 1 080/50i, 720/60p and VGA480 signals only) This setting should be changed in accordance with the projector setting-up method. (Refer to page This sets the signal that is input to 18.) the PC 1 IN and PC 2 IN/PC 1 OUT connector. -
Page 53: Setup
DETAILED SETUP image are not visible, select this item. Press the ENTER button to display the “DETAILED SETUP” menu. XGA MODE INDEX WINDOW [RGB(XGA) only] This functions in the same way as the “INDEX WINDOW” button on the remote control unit. Refer to Adjust this item if the projected page 34 for details. -
Page 54: Setting Up The Security Function
Setting up the security function This projector is equipped with a security function. A password input screen can be displayed, or a company URL can be set up and displayed at the bottom of the projected image. change the setting. # Press the MENU button to For “PASSWORD CHANGE”... -
Page 55: Change
TEXT DISPLAY NOTE: B The entered password will appear as . It will not be displayed on the screen. You can set text to be displayed at B If you enter the wrong the bottom of the projected image at password, an error message all times. -
Page 56: Wireless Setup
Wireless setup You need to make adjustments on some items when controlling the projector with a personal computer by means of the wireless network. Refer to the accessory CD-ROM for details. INPUT PASSWORD Set to “ON” if you want password confirmation to be used when controlling the projector with a personal computer by means of the... -
Page 57: When The Temp Indicator And The Lamp Indicator Are Illuminated
When the TEMP indicator and the LAMP indicator are illuminated There are two indicators on the control panel of the projector which give information about the operating condition of the projector. These indicators illuminate or flash to warn you about problems that have occurred inside the projector, so if you notice that one of the indicators is on, turn off the power and check the table below for the cause of the problem. - Page 58 LAMP indicator Indicator Illuminated (red) Flashing (red) display It is nearly time to An abnormality has been detected in the lamp replace the lamp circuit. Problem unit. B Does “REPLACE B The power may B There may be an LAMP” appear on have been turned abnormality in the Possible...
-
Page 59: Cleaning And Replacing The Air Filter
Cleaning and replacing the air filter If the air filter becomes clogged with dust, the internal temperature of the projector will rise, the TEMP indicator will illuminate and the projector’s power will turn off (the TEMP indicator will flash after the power is turned off). The air filter should be cleaned every 100 hours of use. -
Page 60: Replacing The Lamp Unit
Replacing the lamp unit Warning Lamp unit replacement period When replacing the lamp, allow it The lamp is a consumable product. to cool for at least one hour Even when the full life of the bulb before handling it. has not been exhausted, the B The lamp cover gets very hot, brightness of the light will gradually and touching it can cause burns. -
Page 61: Lamp Unit Replacement Procedure
On-screen display LAMP indicator Displayed for 30 seconds. Pressing any More than 1 800 hours button will clear the Illuminates red during display. image projection and standby mode. Remains displayed until More than 2 000 hours any button is pressed. Lamp unit replacement procedure NOTE: B If the lamp usage time has passed 2 000 hours (when “LAMP POWER”... - Page 62 ' Install the lamp unit cover, and + Press the ENTER button, and then press the F or G button then use a Phillips screwdriver to securely tighten the lamp to select “LAMP RUNTIME”. unit cover fixing screws. , Press and hold the ENTER button for approximately 3 NOTE: seconds.
-
Page 63: Before Calling For Service
Before calling for service Before calling for service, check the following points. Problem Possible cause Page Power does not – B The mains lead may not be connected. turn on. – B The main power supply is not being supplied to the mains socket. -
Page 64: Cleaning And Maintenance
Problem Possible cause Page The picture does B The signal format (“TV-SYSTEM”) may not be set not display correctly. correctly. – B There may be a problem with the video tape or other signal source. B A signal which is not compatible with the projector may be being input. -
Page 65: Specifications
Approx. 3 W] Amps: 3.5 A - 1.8 A LCD panel: Panel size (diagonal): PT-LB60NTE: 0.8 type (20.32 mm) PT-LB55NTE: 0.7 type (17.78 mm) Aspect ratio: Micro lens array: Available Display method: 3 transparent LCD panels (RGB) Drive method:... - Page 66 (One line is available for input and output, selectable using an on-screen menu) During RGB input/output: 0.7 V [p-p], 75 Ω R.G.B.: 1.0 V [p-p], 75 Ω G.SYNC: HD, VD: TTL, automatic positive/negative polarity compatible During YP input/output: 1.0 V [p-p] (Including sync), 75 Ω 0.7 V [p-p], 75 Ω...
-
Page 67: Appendix
(LW) and the projection distance for the telephoto lens position (LT). LW/LT LW=0.0303xSD/0.0254-0.044 PT-LB60NTE LT=0.0364xSD/0.0254-0.044 LW=0.0337xSD/0.0254-0.044 PT-LB55NTE LT=0.0405xSD/0.0254-0.044 For 16:9 aspect ratios, the following formula can be used to calculate the projection distance. LW=0.0331xSD/0.0254-0.044 PT-LB60NTE LT=0.0397xSD/0.0254-0.044 LW=0.0369xSD/0.0254-0.044... -
Page 68: List Of Compatible Signals
List of compatible signals Scanning Display Dot clock frequency Picture resolution frequency Resizing* Format Mode quality* (dots)* (MHz) (kHz) (Hz) NTSC/NTSC4.43/ 720 x 480i 15.7 59.9 S-Video/Video PAL-M/PAL60 PAL/PAL-N/SECAM 720 x 576i 15.6 50.0 S-Video/Video 480i 720 x 480i 15.7 59.9 13.5 /RGB... -
Page 69: Guide Screen For Computer
Guide screen for computer connection Refer to the list below for details on the keyboard commands to change the output setting. Keyboard Keyboard Manufacturer Manufacturer command command Panasonic EPSON DELL TOSHIBA SONY SHARP Apple FUJITSU Other NOTE: B The actual method varies depending on the type of computer, so refer to the documentation provided with your computer for further details. -
Page 70: Connector
Using the SERIAL connector The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connector. Connection Communications settings Computer SERIAL(female) -
Page 71: Control Commands
Control commands The commands which the personal computer can use to control the projector are shown in the following table. Command Control Contents Remarks In standby mode, all commands other than the PON command are ignored. Power ON B The PON command is ignored during lamp ON control. -
Page 72: Dimensions
Dimensions <Units: mm (inch)> 96.2(3-25/32) 327(12-27/32) 211.4(8-5/16) Trademark acknowledgements B VGA and XGA are trademarks of International Business Machines Corporation. B Macintosh is a registered trademark of Apple Computer, Inc. B S-VGA is a registered trademark of the Video Electronics Standards Association.
