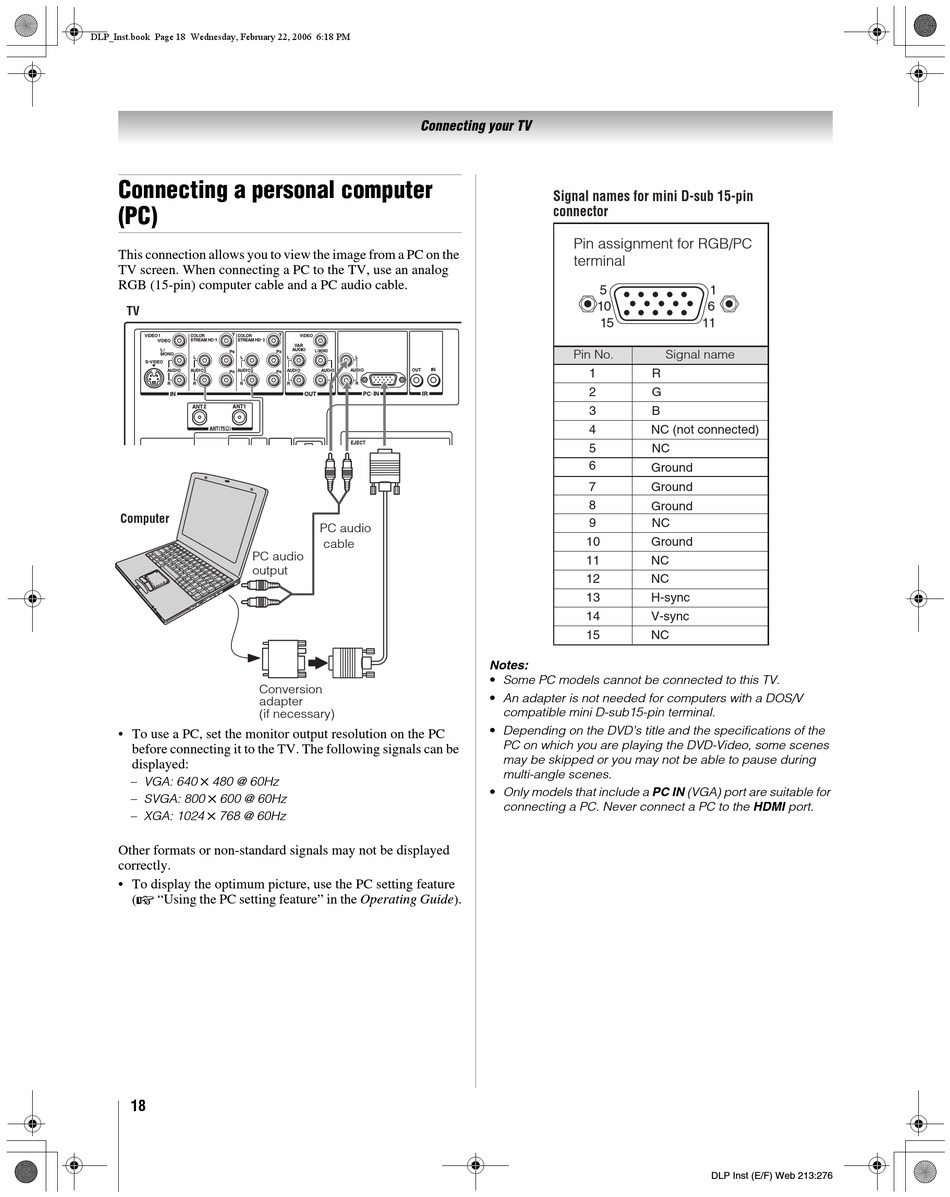

Connecting a personal computer
(PC)
This connection allows you to view the image from a PC on the
TV screen. When connecting a PC to the TV, use an analog
RGB (15-pin) computer cable and a PC audio cable.
TV
Computer
PC audio
output
Conversion
adapter
(if necessary)
• To use a PC, set the monitor output resolution on the PC
before connecting it to the TV. The following signals can be
displayed:
– VGA: 640 5 480 @ 60Hz
– SVGA: 800 5 600 @ 60Hz
– XGA: 1024 5 768 @ 60Hz
Other formats or non-standard signals may not be displayed
correctly.
• To display the optimum picture, use the PC setting feature
-
( "Using the PC setting feature" in the Operating Guide).
18
Connecting your TV
PC audio
cable
Notes:
• Some PC models cannot be connected to this TV.
• An adapter is not needed for computers with a DOS/V
• Depending on the DVD's title and the specifications of the
• Only models that include a PC IN (VGA) port are suitable for
Signal names for mini D-sub 15-pin
connector
Pin assignment for RGB/PC
terminal
5
10
15
Pin No. Signal name
1 R
2 G
3 B
4 NC (not connected)
5 NC
6
Ground
7 Ground
8
Ground
9 NC
10 Ground
11 NC
12 NC
13 H-sync
14 V-sync
15 NC
compatible mini D-sub15-pin terminal.
PC on which you are playing the DVD-Video, some scenes
may be skipped or you may not be able to pause during
multi-angle scenes.
connecting a PC. Never connect a PC to the HDMI port.
1
6
11
