Hayward Universal ColorLogic Replacement Manual page 2

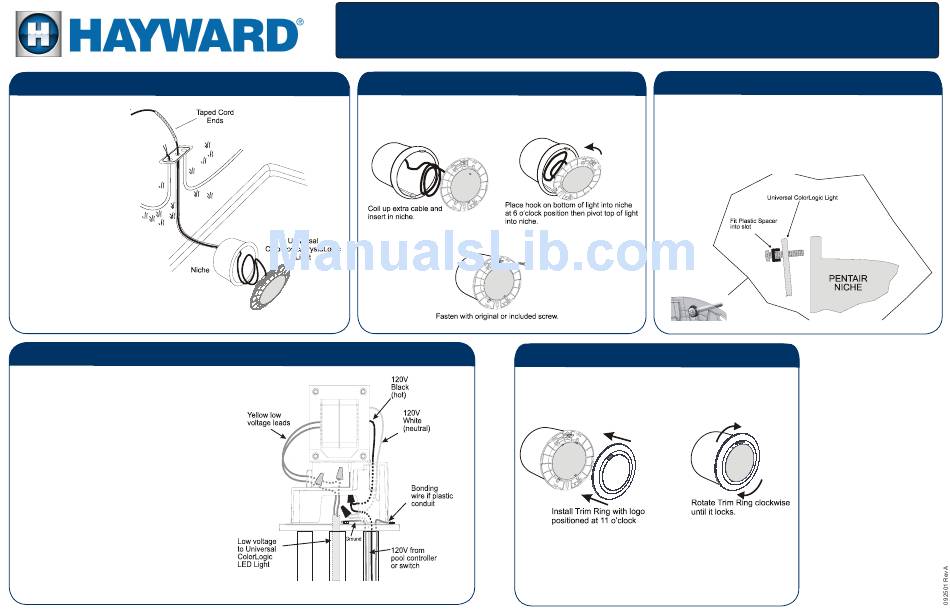

STEP 5:
Snake Cord through Conduit
Pull at the junction box
or transformer end to
snake the Universal
ColorLogic/CrystaLogic
cord through the con-
duit. Leave slack at
the light end for coiling
cord in the niche. The
coil length should be
adequate for placing the
light on the deck if pool
servicing ever requires
light removal.
Some niches may have an
8AWG connection from the
junction box to the niche. If so,
ensure that this connection is
not interrupted when installing
the new light.
STEP 6:
Install and wire Junction Box Transformer
The junction box retrofit kit transformer must now
be installed and wired. Cut excess cord and refer
to the diagram for wiring instructions.
If the new Universal ColorLogic/CrystaLogic light
will be controlled by network communications
using a Hayward Pro Logic controller, an
LKBUN1000 coupler must also be installed.
Refer to the LKBUN1000 instructions for
installation and wiring information.
After wiring the Universal ColorLogic/CrystaLogic
light to the junction box transformer, install the
new cover making sure that the included gasket is
in place.
Replacing 120 volt pool or spa lights
with Universal ColorLogic
STEP 6a:
Install Light to most Niches
To fasten the Universal ColorLogic/CrystaLogic light to most
niches refer to the diagram below.
STEP 9:
Install the Trim Ring as shown.
READ SAFETY INSTRUCTIONS AND COMPLETE SAFETY
CHECKLIST INSIDE FRONT COVER OF MANUAL
or CrystaLogic
TM
STEP 6b:
STEP 5:
Install Light to Pentair Niche
Insert Cell
For Pentair ® niches, use the included spacer according to the
diagram below. Failure to install the plastic spacer properly may
result in the light being inadequately fastened. Plastic gunite
type niches will not require the spacer.
Refer to the manual for instructions when using a Swimquip
niche.
Install Trim Ring
TM
