Clamp Nut

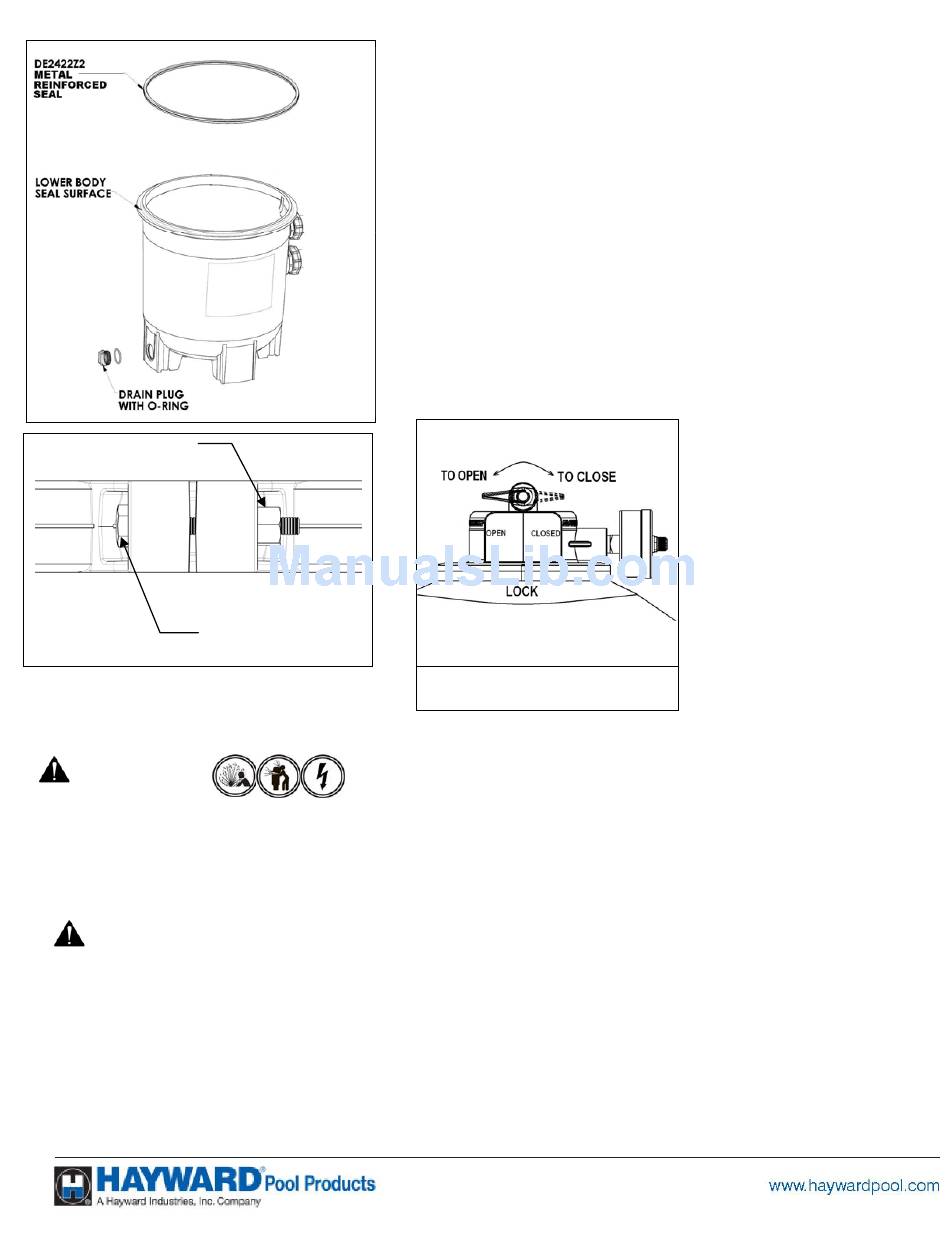

Figure 5
Clamp Bolt

FILTER RE-ASSEMBLY INSTRUCTIONS

WARNING

CLEAN SEAL RING AND SEAL SURFACE

1. Remove filter tank seal.
2. With a clean cloth wipe the lower filter body seal surface. (Fig 4) Do not use a solvent.
3. With a clean cloth wipe the upper filter body seal surface.
Notice: •Do not use any petroleum solvents to clean filter components.
•Do not lubricate DEX2422Z2 Seal.
RE-INSTALLING ELEMENT CLUSTER
1. Lubricate outlet elbow O-rings with Jack's Formula 327 Multilube.
2. Replace filter element cluster into filter tank, carefully fitting top collector manifold outlet over outlet elbow O-ring.
TM
Pro-Grid VERTICAL D.E. SERIES FILTER

INITIAL CLEANING OF ELEMENT CLUSTER ASSEMBLY

Before removing the element cluster assembly we recommend hosing it
down with a strong stream from a garden hose or preferably with the
Hayward cleaning wand (EC2024). Be sure the drain plug is not in place
or the drain valve is open. Remove as much of the dirty D.E. and
accumulated debris by flushing it out of the drain opening. This will
allow for easier removal of the element cluster assembly.
REMOVING ELEMENT CLUSTER
Rock the element cluster assembly slightly from side to side to free the
manifold from the vertical outlet elbow. The element cluster assembly
may now be removed by lifting it straight up using the lift handles.
CLEANING ELEMENT CLUSTER
The filter element cluster can be cleaned by washing inside and outside
with a garden hose. After hosing filter element cluster, for best results,
carefully brush the surface to remove fine particles. Do Not Pressure
Wash as it can damage the filter element cluster.
You may find some debris on the filter element cluster, which may not
Figure 4
have been removed with hosing.
Manual Air Relief Shown in Open
Figure 6
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
ISDE2423 REV C
