Biostar NF61S-M2 TE Setup Manual page 19

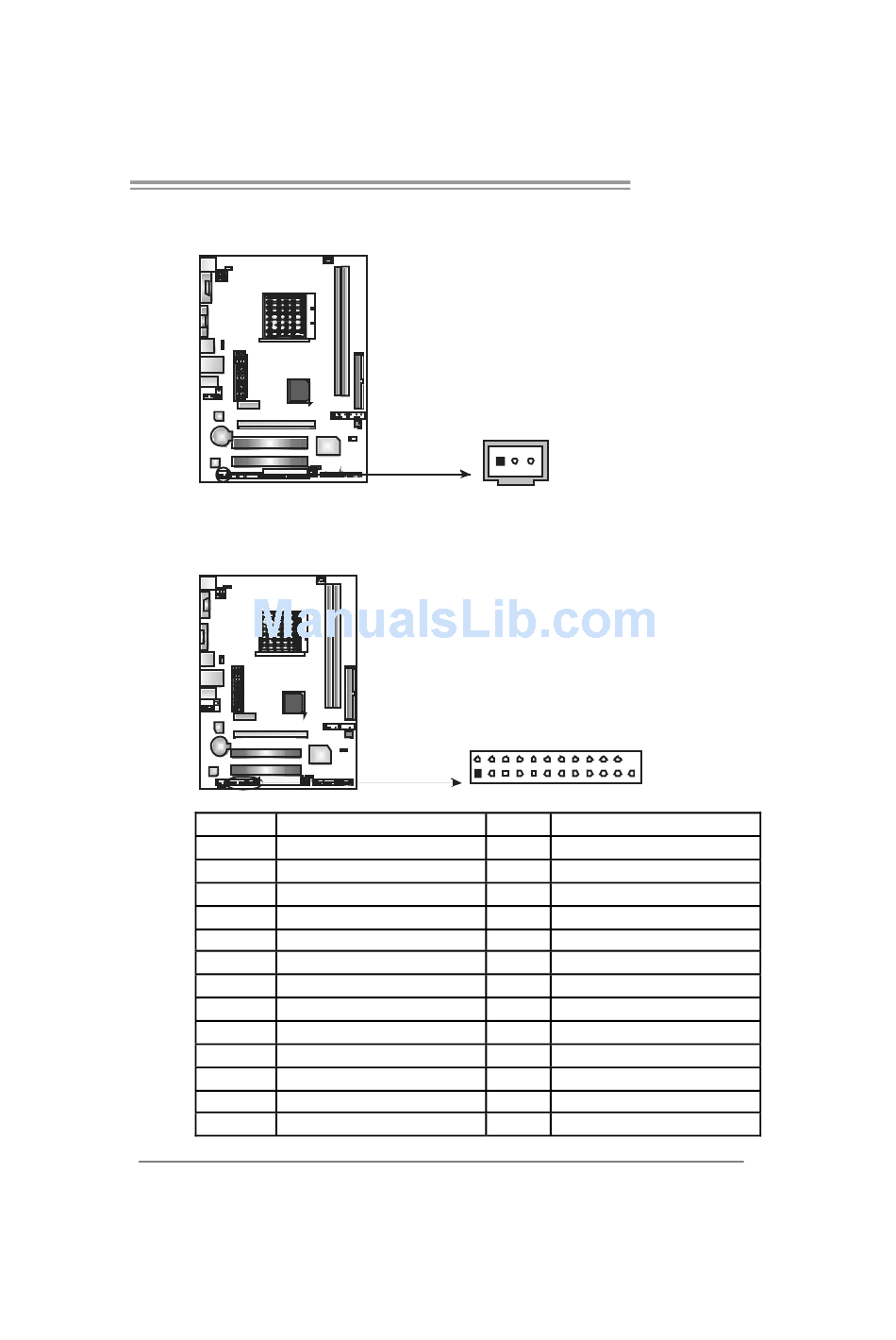

JSPDIF_O UT1: Digital Audio-out Conne ctor
This connector allows user to connect the PCI bracket SPDIF output header.
JPRNT1: Printe r Port Connector
This header allows you to connector printer on the PC.
Pin Assignment
1 -Strobe
2 -ALF
3 Data 0
4 -Error
5 Data 1
6 -Init
7 Data 2
8 -Scltin
9 Data 3
10 Ground
11 Data 4
12 Ground
13 Data 5
NF61S-M2 TE
Pin
1
2
3
1 3
2
1
25
Pin Assignment
14 Ground
15 Data 6
16 Ground
17 Data 7
18 Ground
19 -ACK
20 Ground
21 Busy
22 Ground
23 PE
24 Ground
25 SCLT
26 Key
Assignment
+5V
SPDIF_OUT
Ground
17
