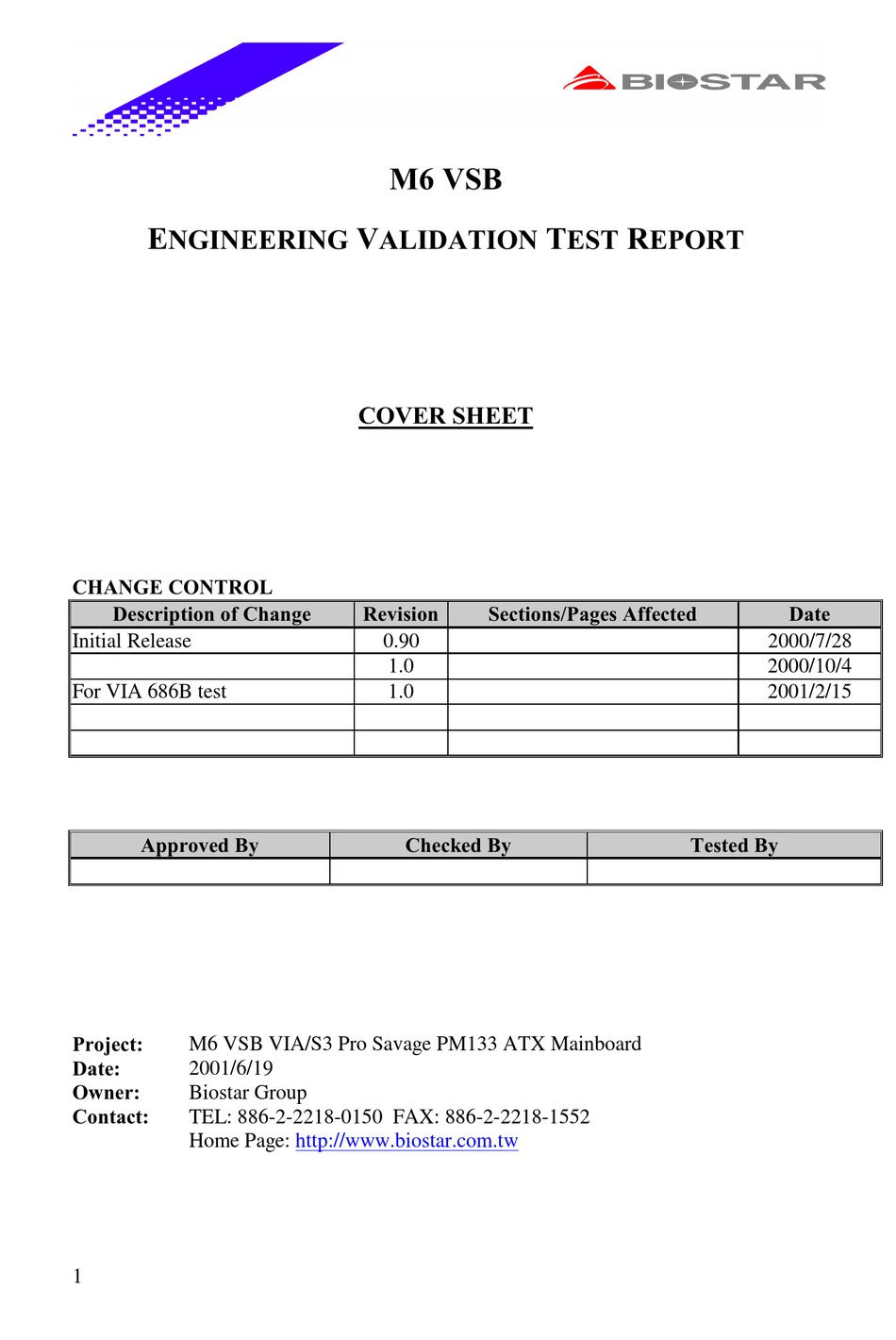

Engineering validation test report
Hide thumbs Also See for M6VSB:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual


Initial Release
For VIA 686B test
M6 VSB VIA/S3 Pro Savage PM133 ATX Mainboard
2001/6/19
Biostar Group
TEL: 886-2-2218-0150 FAX: 886-2-2218-1552
Home Page:
1



0.90
1.0
1.0
http://www.biostar.com.tw





2000/7/28
2000/10/4
2001/2/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M6VSB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Biostar M6VSB

Summary of Contents for Biostar M6VSB

  • Page 1        Initial Release 0.90 2000/7/28 2000/10/4 For VIA 686B test 2001/2/15 M6 VSB VIA/S3 Pro Savage PM133 ATX Mainboard 2001/6/19 Biostar Group TEL: 886-2-2218-0150 FAX: 886-2-2218-1552 Home Page: http://www.biostar.com.tw...
  • Page 2 Motherboard General Information ................4 Chipset Details ......................4 BIOS Details ....................... 4 CPU Support ....................... 4 Memory Support ......................4 On-board Features and Devices .................. 4 Mechanical ........................5 Mainboard Voltage Measurement................7 Bus Clock ........................7 Mainboard Voltage Measurement................9 Bus Clock ........................

  • Page 3: Table Of Contents

    HDD .......................... 40 Joystick........................41 Keyboard ........................41 LAN Card........................42 Memory ........................42 Modem Card......................43 CNR Card........................43 Mouse ........................43 Power Supply ......................44 Printer ........................44 Scanner ........................44 SCSI Card........................44 Sound Card........................ 45 Switch Hub........................ 45 USB HUB........................

  • Page 4: Memory Support

           Vendor Model Number M6 VSB Version Number 0.90/1.0 ! AT " ATX ! Micro ATX Platform FCC ID Number CE Logo System Chipset Vendor North Bridge Revision VIA/S3 Pro Savage PM133 South Bridge Revision VIA VT82C686A /VT82C686B 0053CD Clock Generator Vendor Clock Generator Revision W211BH/C030/1004KB Audio Chipset Vendor...
  • Page 5 " Yes ! No AGP (2X/4X) Slot Support " Yes ! No Support AGP SideBand Addressing Mode " Yes ! No Ultra DMA 33 Support " Yes ! No Ultra DMA 66 Support " Yes ! No ATA-100 Support (VIA 686B only) "...
  • Page 6 ! Yes ! No " None ! Excellent ! Fair ! Poor AMR Slot Line Up in Case ! Yes ! No " None ! Excellent ! Fair ! Poor Daughter Card Slot in PCB " Yes ! No ! None "...
  • Page 7   Voltage List Voltage SPEC Voltage Measured Result Battery Voltage 3.0V/7uA 3V/6.5uA Pass 5.0V+-5% 5.06V Pass +12V 12.0V+-5% 12.16V Pass -5.0V+-5% -4.88V Pass -12V -12.0V+-10% -11.43V Pass +3.3V +3.3V+-5% 3.3V Pass Clock Frequency Spec Value (MHz) Measured Value Pass/Fail CPU and Clock Host 66.67 66.67 Pass...
  • Page 8 PCI Clock High Time Min.11ns 15.5ns Pass PCI Clock Low Time Min.11ns 12.5ns Pass PCI Clock Rising Time 1ns~4ns Pass PCI Clock Falling Time 1ns~4ns Pass Result 3.21V Pass 3.30V Pass 3.47V Pass Comments: 1. Power on/off 50 times. 2.Setup installation windows98.
  • Page 9   Voltage List Voltage SPEC Voltage Measured Result Battery Voltage 3.0V/7uA 3V/6.5uA Pass 5.0V+-5% 5.06V Pass +12V 12.0V+-5% 12.16V Pass -5.0V+-5% -4.88V Pass -12V -12.0V+-10% -11.43V Pass +3.3V +3.3V+-5% 3.3V Pass Clock Frequency Spec Value (MHz) Measured Value Pass/Fail CPU and Clock Host 66.67 66.67 Pass...
  • Page 10 PCI Clock High Time Min.11ns 15.5ns Pass PCI Clock Low Time Min.11ns 12.5ns Pass PCI Clock Rising Time 1ns~4ns Pass PCI Clock Falling Time 1ns~4ns Pass Result 3.21V Pass 3.30V Pass 3.47V Pass Comments: 1. Power on/off 50 times. 2.Setup installation windows98.
  • Page 11         Virus Warning Disabled Pass CPU Internal Cache Enabled Pass External Cache Enabled Pass Processor Number Feature Disabled Pass Quick Power On Self Test Enabled Pass First Boot Device Floppy Pass Second Boot Device HDD-0 Pass Third Boot Device CDROM Pass Boot Other Device Enabled...
  • Page 12 OnChip Sound Auto Pass OnChip Modem Auto Pass ACPI function Enabled Pass Power Management Press Enter Pass Power Management User Define Pass HDD Power Down Disable Pass Doze Mode Disable Pass Suspend Mode Disable Pass ACPI Suspend Type S1(POS) Pass PM Control by APM Pass Video Off Option...
  • Page 13 X DMA Resources Press Eneer Pass Assign IRQ for VGA Enabled Pass Assign IRQ for USB Enabled Pass OnChip IDE Channel0 Enabled Pass OnChip IDE Channel1 Enabled Pass IDE Prefetch Mode Enabled Pass Primary Master PIO Auto Pass Primary Slave PIO Auto Pass Secondary Master PIO...
  • Page 14 12.18 Auto Detect DIMM/PCI Clk Enabled Pass CPU Host Clock (CPU/PCI) Default Pass...

  • Page 15: Nt 4.0 Workstation

         DOS 6.22 Pass Windows 98 Pass Windows 98 Second Edition Pass Windows Me Pass Windows NT 4.0 Workstation Pass Windows 2000 Pass Linux 7.0 (Red Hat) Pass Pentium III 667MHZ Memory HY 64M *2 Fujitsu / MPD3108AT 10.8G CDROM ASUS 50X Sound Card Onboard codec...
  • Page 16 Power On Control Power On By RTC Test Pass Power On By Keyboard Test Pass Power On By Mouse Test Pass Power On By LAN Test (Intel SPD3) Pass Power On By Modem Test Pass Boot Management Boot Form CD-ROM Pass Boot From SCSI HDD Pass...
  • Page 17 Multimedia CPU Extensions Pass Memory BIOS ROM Test Pass Parity Test Pass Pattern Test Pass Extended Pattern Test Pass Walking 1’s Test Pass Walking 0’s Test Pass Random Memory Test Pass Address Test Pass Refresh Test Pass Data Bus Test Pass Cache Memory Test Pass...

  • Page 18: Sound Card

    APM Functionality Test Pass Device APM Test Pass ACPI Test Fail (FC-PGA only) I82557 Ethernet chip Pass PIII 1000 MHz Memory MT 128M Quantum 6.4G CDROM BTC 52X Sound Card On board Video Card On board AMR Card PCTel / MP56A Windows 98 Setup Installation Test Pass Supports Driver Installation Test...

  • Page 19: Scanner

    Wake Up By Ring (External and AMR Modem) Test Pass PS/2 Mouse Test Pass Running AVI Files With Multi Stress Pass Winstone 99 Test Pass 3D Winbench 99 Test Pass Final Reality 1.01 Test Pass BCM Memory Test Pass PS/2 Connector Test PS/2 Keyboard Test Pass PS/2 Mouse Test...

  • Page 20: Windows

    Add Joystick PnP Test Pass Add Floppy PnP Test Pass Add ZIP PnP Test Pass Add LAN PnP Test Pass LAN Card Test Boot ROM Function Test None Login Server Test Pass Peer to Peer 10Mbps or 100Mbps Data Transfer Test Pass Power On By LAN Test Pass...
  • Page 21 Modem Fax Function Test (Transmit a fax to Modem) Pass Wake on Ring Test (Standby Mode) Pass Recording a MP3 File From Internet ISP Server Pass Voice Pass ACR Slots Test Add AMR Modem Card Test Pass VGA Function Test ( View Sonic GF775 & On-board VGA ) VGA Drivers Setup Installation Test Pass Display Properties Information Review...
  • Page 22 Sound Recorder Test Pass Run MPG Files Pass System Properties Information Review Pass Speaker Out Quality Test Pass Telephony Function Supports Pass Playing Audio CD Test Pass Playing Wave Test Pass Playing MIDI Test Pass Playing Video Test Pass Playing MP3 Test Pass FF Function (Playing CD music,MIDI,WAV,AVI files using Media player) Pass...
  • Page 23 FPU WinMark Pass GDI/USER Inspection Tests Pass High-End Disk WinMark 99 Pass High-End Graphics WinMark 99 Pass Video Tests Pass 3D Winbench 2000 (VGA Card) 3D Performance Pass 3D Processing Pass 3D Quality Pass 3D WinMark Pass 3D WinMark 2000 3D Marks Pass Demo Mode...
  • Page 24 Voice 32 7.32 DirectSound3D CPU Util , 22 kHz , 8 bits Static Hardware Voice Voice 8 3.11 Voice 16 4.55 Voice 32 5.27 DirectSound3D CPU Util , 22 kHz , 8 bits Streaming Hardware Voice Voice 8 3.07 Voice 16 4.47 Voice 32 5.24...
  • Page 25 Interstate’76 Pass Janes WWII Fighters Pass Janes FLEET Command Pass LION KING Pass Moto Racer Pass Myst Pass Microsoft Midtown Pass Microsoft Motocross Pass Microsoft Age Of Empires Pass Microsoft Monster Truck Pass NBA Live99 Pass O.ZONE Pass Quake II Pass Red Alert Pass...
  • Page 26 Business Winstone 99 Pass High-End Winstone 99 Pass PS/2 Connector Test PS/2 Keyboard Test Pass PS/2 Mouse Test Pass COM Port Test Add Serial Mouse PnP Test Pass Add Modem PnP Test Pass Print Port Test Add Printer PnP Test Pass FDD Connector Test Format 1.44 Floppy Driver...
  • Page 27 Add Token Ring LAN Card Test Pass Add Sound Card Test Pass Add Modem Card Test Pass CNR Slots Test Add CNR Software Modem Card Test (Using RingCentral-4.0) Pass Connect Performance Check Pass Connect to ISP For 12 hours Pass Download Files using CNR Modem (Over 10MB) Pass Download Files From Internet ISP Server (Over 10MB)
  • Page 28 Playing Wave Test Pass Playing MIDI Test Pass Playing Video Test Pass Playing MP3 Test Pass FF Function (Playing CD music,MIDI,WAV,AVI files using Media player) Pass FW Function (Playing CD music,MIDI,WAV,AVI files using Media player) Pass Pause Function (Playing CD music,MIDI,WAV,AVI files using Media player) Pass Play DVD title (using CineMaster 99 player) Pass...
  • Page 29 High-End Disk WinMark 99 Pass High-End Graphics WinMark 99 Pass Video Tests Pass Others SYSmark 98 Pass Wintune 98 Test Pass SYSmark 2000 Pass CD-RW + Nero Burning ROM Pass S3 after, check whether the timer is working---Option Function Pass Game Test Forsaken Pass...
  • Page 30 Wake Up By Ring (External and AMR Modem) Test Pass Enable Scheduled Task Runs at Specified time Test (RTC wake up) Pass Hibernate(S4) Test Standby Button for S4 (Enter) Pass Power Button for S4 (Enter and Wake up) Pass Windows Set RTC Time out for S4 (Enter and Wake up) Pass Enter S4 mode For 1/5/10/30/60/120 Minutes Then To Do Wake Up Test.
  • Page 31 3D Quality Pass 3D Winbench 2000 Processor Pass 3D WinMark 2000 Pass Others CD Winbench 99 Pass 3Dmark 2000 Pass Final Reality Pass Morewins Pass WinDVD 2000 Pass Comments: Pentium III 667 MHz Memory Kingmax 128M/133 IBM Deskstar 20.5G CDROM Teac cd-540ce Sound Card Ensoniq 1370...
  • Page 32 Add SCSI Card Test Pass Add LAN Card Test Pass Add Sound Card Test Pass Comments:...
  • Page 33     Vendor Biostar Model Number M6 VSB Temperature rate (  ) 0 ~ 45  0 ~ 60  Humidity rate ( % ) Time ( hr ) 72 hr Test Program Continuous Play DVD & AVI Files STEP 1 Temperature 0 ~ Humidity none ~ 12 hr.
  • Page 34     Cyrix 533 766(66x11) 850(100x8.5) 1000(133x7.5) Memory Hitachi 128m * 3 IBM DTLA-307030 CD-ROM TEAC CD-540E Sound Card On board Video Card On board ( Share Memory 32M) Winstone 99 Business Winstone 99 20.8 24.7 31.3 32.8 Comments: Winstone 2000 Winstone2000 14.3 27.6...
  • Page 35 Cyrix 533 766(66x11) 850(100x8.5) 1000(133x7.5) Memory Hitachi 128m*3 IBM PTLA-307030 CD-ROM TEAC CD-540E Sound Card On board Video Card (External) ASUS-7700 Winstone 99 Business Winstone 99 21.5 27.6 32.5 Comments: Winstone 2000 Winstone2000 14.9 29.4 35.7 38.5 Comments: Winbench 99 CPUMark 99 25.2 47.1...
  • Page 36 Celeron-800 Celeron-900 VIA C3-700A Memory MOSEL 128M x3 TEAC CD-540E CD-ROM IBM DTLA-307030 Sound Card On board Video Card Matrox G-400 Winstone 2001 Business Winstone 2001 16.3 18.7 12.4 Comments: Winstone 2001 Content Creation Winstone2001 13.1 20.4 11.9 Comments: Winbench 99 ( 1.2 ) CPUMark 99 44.5 45.6...
  • Page 37 750(100x7.5) 800(100x8) 866(133x6.5) 933(133x7) Memory Winbond 256MB IBM DJNA-370910 Ultra-66 CD-ROM Actima 50x Sound Card On-Board Codec Video Card On-Board Savage 4 Pro Winstone 99 Business Winstone 99 38.6 39.3 40.8 41.2 High-End Winstone 99 34.5 37.6 38.9 Comments: Winstone 2000 Winstone2000 30.6 31.1...
  • Page 38 750(100x7) 800(100x8) 866(133x6.5) 933(133x7) Memory Winbond 256MB Quantum Fireball LM1500AT Ultra-66 CD-ROM Pioneer 105S Sound Card On-Board Codec Video Card On-Board Savage 4 Pro Winstone 99 Business Winstone 99 36.7 37.6 39.2 40.1 High-End Winstone 99 48.4 50.1 53.2 Comments: Winbench 99 CPUMark 32 67.4...
  • Page 39       Intel PENTIUM III/550 MHz Pass Intel PENTIUM III/600 MHz Pass Intel PENTIUM III/650 MHz Pass Intel PENTIUM III/667 MHz Pass Intel PENTIUM III/700 MHz Pass Intel PENTIUM III/733 MHz Pass Intel PENTIUM III/800 MHz Pass Intel PENTIUM III/850 MHz Pass Intel PENTIUM III/866 MHz...
  • Page 40 PHILIPS PCCD048 Pass PLEXTOR PX-32TSI(SCSI) Pass SONY CDU711 Pass SONY CDU4811 Pass SONY CRX100E Pass TEAC CD-540E Pass TEAC CD-532E Pass TEAC CD-532S (SCSI) Pass 3COM (USB) 3718 Pass Creative (USB) CT6840 Pass Logitech (USB) QUICK CAM Pass Kodak (USB) DC240 Pass O’RIT (USB)
  • Page 41 DJNA-370910 Ultra-66 Pass DPTA-372050 Pass DNES-309170 SCSI 9.1G Pass DCAS-34330 WIDE SCSI Pass IBM OEM DHEA-36481 Pass IBM Deskstar DHEA-DPTA-372050 Pass DTLA-307020 ATA-100 Pass DTLA-307015 ATA-100 Pass DTLA-307030 ATA-100 Pass Maxtor 91360D8 Ultra33 Pass Maxtor 86480D6 Ultra33 Pass Maxtor 91190D7 Ultra33 Pass Maxtor 91024U3 Ultra-66...
  • Page 42 LEMEL AK-208 Pass Microsoft (USB) X03-51764 Pass Microsoft (USB) RT9401 Pass SAMPO F-21BQ Pass SAMPO F-21YQ (SPK-2000) Pass SOFT(USB) F-21YQ Pass ACER 6511-TA Pass ACER 6311-TW Pass Samsung SEM-DT35 Pass Logitech (IR) Y-RA1 Pass WIRELESS K/B (IR) 5110 Pass 3COM 3C529B Pass 3COM...
  • Page 43 48LC2M8A1 (32M) Pass 48LC8M8A2 (64M) Pass 48LC8M8A2 (128M) Pass M.tec FTS6416B4E-7 (64M) Pass MOSEL V54C365804VCT7 (64M) Pass MOSEL V54C365804VCT7 (128M) Pass Nanya NT56V6610C0T-75 (128M) Pass NEC (Singapore) D4564841G5-A10-9JF (64M) Pass NEC (Singapore) D4564841G5-A10-9JF (128M) Pass NEC (Japan) D4564841G5-A75-9JF (128M) Pass NEC (Japan) (VCM) D4565821G5-A75-9J (128M)
  • Page 44 Logitech (PS/2) M-S43 Pass Logitech (PS/2) M-CAA43 Pass Logitech (PS/2) M-CAB48A Pass Logitech (Serial) M-MM35 Pass Logitech (Serial) M-MM43 Pass Logitech (IR) M-RG45 Pass Microsoft (USB/PS2) IntelliMouse X04-91790 Pass Seagate IOWCM-B700 Pass WINIC FDM-A50 Pass Enlight HPC-250-101 Pass Enlight HPS-300 Pass Enlight ATX-725B...
  • Page 45 ASUS AGP-V7700 (Geforce 2 GTS) Pass Rage 128 32M Pass ALL-IN-WONDER 128 Pass RADEON DDR 32M Fail XPERT2000 PRO Pass XPERT2000 Pass BIOSTAR VF05 Pass DIAMOND Viper V770 (RIVA TNT2) Pass ELSA Nvidia Geforce256 Pass ELSA ERAZOR GTS(Geforce2GTS) Pass      ...
  • Page 46 Winfast Geforce 2 MX Pass Winfast Geforce 256 Pass Winfast S320 II Pass Winfast S325 Pass Winfast VR300 Pass PANASONIC JU-811T012 (IDE) Pass Iomega Z250ATAPI (IDE) Pass Iomega Z100P (Print Port) Pass Iomega Z250P (Print Port) Pass Iomega ZIP 100 USB Pass MATSUSHITA-KOTOBUKI LKM-F734-1 (LS-120 IDE)
  • Page 47        MS-DOS 6.22 Pass IBM PCDOS Pass Windows98 Original Pass Windows98 Second Edition Pass Windows Me Millenium Edition Pass Windows NT Workstation Pass Windows 2000 Profession Release Pass Linux Red Hat Pass NetWare Pass SCO Unix Pass Windows NT Pass Windows 2000 Release Pass...
  • Page 48         Finished Date: 89/10/16 AK2 PIN Vcore1.65V PASS PS : 1. Transient and Static Waveform : VID setting : 1.65V , Icc :15.5A , Frequency : 2KHz 2. Static Test Range : +40mV~ -80mV 3. Transient Test Range : +80mV~ -130mV...
  • Page 49 AN3 PIN Vcore1.7V PASS PS : 1. Transient and Static Waveform : VID setting : 1.7V , Icc :22A , Frequency : 2KHz 2.Static Test Range : +40mV~ -80mV 3.Transient Test Range : +80mV~ -110mV...
  • Page 50 C4 PIN Vcore1.65V PASS PS : 1. Transient and Static Waveform : VID setting : 1.65V , Icc :15.5A , Frequency : 2KHz 2.Static Test Range : +40mV~ -80mV 3.Transient Test Range : +80mV~ -130mV...
  • Page 51 C4 PIN Vcore1.7V PASS PS : 1. Transient and Static Waveform : VID setting : 1.7V , Icc :22A , Frequency : 2KHz 2.Static Test Range : +40mV~ -80mV 3.Transient Test Range : +80mV~ -110mV...
  • Page 52 AK34 PIN Vcore1.65V PASS PS : 1. Transient and Static Waveform : VID setting : 1.65V , Icc :22A , Frequency : 2KHz 2.Static Test Range : +40mV~ -80mV 3.Transient Test Range : +80mV~ -130mV...
  • Page 53 AK34 PIN Vcore1.7V PASS PS : 1. Transient and Static Waveform : VID setting : 1.7V , Icc :22A , Frequency : 2KHz 2.Static Test Range : +40mV~ -80mV 3.Transient Test Range : +80mV~ -110mV...
  • Page 54 B34 PIN Vcore1.65V PASS PS : 1. Transient and Static Waveform : VID setting : 1.65V , Icc :15.5A , Frequency : 2KHz 2.Static Test Range : +40mV~ -80mV 3.Transient Test Range : +80mV~ -130mV...
  • Page 55 B34 PIN Vcore1.7V PASS PS : 1. Transient and Static Waveform : VID setting : 1.7V , Icc :22A , Frequency : 2KHz 2.Static Test Range : +40mV~ -80mV 3.Transient Test Range : +80mV~ -110mV...
  • Page 56 Floppy Graphics Memory WinApp Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass         M6VSB/0.9 Power Supply KING YEAR VID Setting 1.7V HIP6021 Electronic Loading Chroma 63030 Engineer Signature ALONG O.C.P test Pass/Fail Pass O.V.P test 1.809V Pass/Fail...
  • Page 57 Floppy Graphics Memory WinApp Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass         M6VSB/1.0 Power Supply KING YEAR VID Setting 1.7V HIP6021 Electronic Loading Chroma 63030 Engineer Signature ALONG O.C.P test Pass/Fail Pass O.V.P test 1.809V Pass/Fail...
  • Page 58     Vendor Biostar Model Number M6VSB Revision Temperature (  ) 35  0 ~ 50  Humidity rate ( % ) Thermo Tracer NEC TH5104 Test Program 3Dmark2000 The component temperature measured value was based on 35               ...
  • Page 59     Vendor Biostar Model Number M6VSB Revision Temperature (  ) 35  0 ~ 50  Humidity rate ( % ) Thermo Tracer NEC TH5104 Test Program 3Dmark2000 The component temperature measured value was based on 35               ...
