Summary of Contents for Dual MWR30

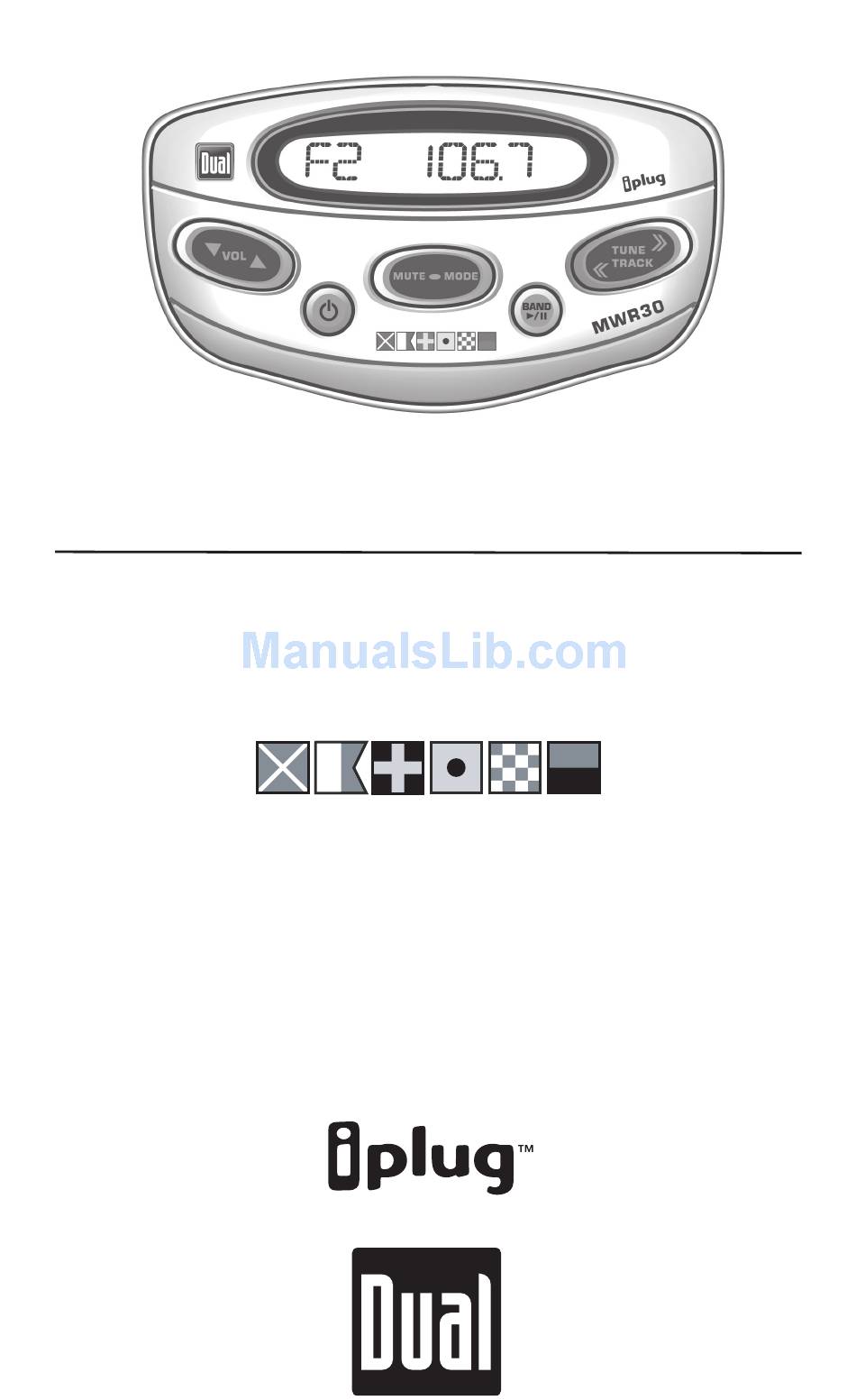

- Page 1 MWR30 INSTALLATION/OWNER’S MANUAL Wired Remote Control MARINE ®...
- Page 2 Turn on the head unit and test the function of the remote control. • Choose and prepare location, the MWR30 is designed to be mounted in a standard 2 1/8" gauge cutout. The required mounting depth will vary, but at least 2 1/2"...
-
Page 3: Surface Mounting
® MWR30 INSTALLATION Standard Gauge Cutout Mounting Surface Mounting... -
Page 4: Surface Mounting Template
® MWR30 INSTALLATION Surface Mounting Template Scale: 100% Wiring Once the remote has been mounted, connect the cables to the remote and head unit as in the diagram above. When routing the extension cable, be sure to avoid sharp objects, corners, and places where it might get pinched, as this could affect performance and cause damage to the unit. -
Page 5: Control Locations
Press VOLUME s/tto adjust volume up/down. Press and hold POWER button for 3 seconds to program currently selected volume level. "P-VOL" and the current volume level will momentarily appear in the head unit's display. MWR30 OPERATION Control Locations Band/Play/Pause Tune/Track, Up/Down iplug Input - connect to the output of any portable media player, etc. - Page 6 ® MWR30 OPERATION General Operation Mute Band Play/Pause Seek Tune Manual Tune Track Select WB Preset Select (continued) Press MUTE to silence the audio. “MUTE” will flash in the head unit's display. Press MUTE again to cancel. Press BAND to select between FM1, FM2, FM3, AM1, and AM 2 bands in tuner mode.
-
Page 7: Limited One Year Warranty
This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase. - Page 8 ©2006 Dual Electronics Corp. All rights reserved. NSA0106-V01...
