Dual XD7500 Installation & Owner's Manual

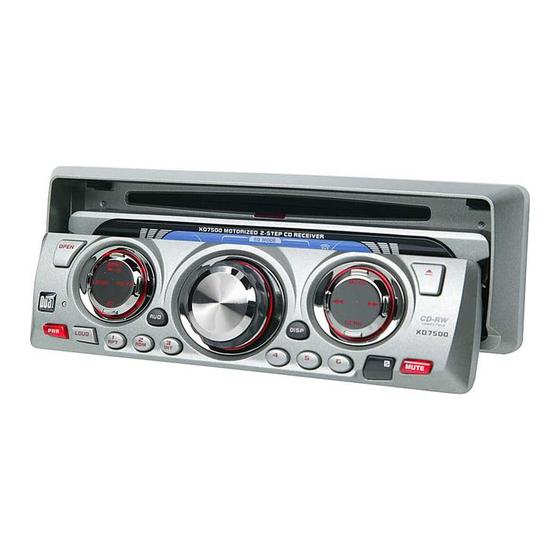

Dual am/fm/cd receiver installation/owners manual
Hide thumbs Also See for XD7500:

Advertisement

Table of Contents

XD7500
INSTALLATION/OWNERS MANUAL
AM/FM/CD Receiver with Remote

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XD7500 and is the answer not in the manual?

Questions and answers

ronnie Simmons
February 24, 2025

The radio stations is not clear they really hard to get

0
1 comments:
Mr. Anderson
February 24, 2025

The radio reception on the Dual XD7500 may be unclear due to several possible reasons:
1. Antenna Issues: The antenna may not be properly connected or extended.
2. Weak Signal: The station may be too far away or obstructed by buildings or terrain.
3. Interference: Electrical interference from nearby devices or vehicles may affect reception.
4. Incorrect Tuning Mode: The radio may be set to "Local" mode instead of "Distance" mode, limiting signal reception.

Checking the antenna connection, adjusting the tuning mode, and moving to a location with better signal strength can help improve reception.

This answer is automatically generated

0

Related Manuals for Dual XD7500

Summary of Contents for Dual XD7500

  • Page 1 XD7500 INSTALLATION/OWNERS MANUAL AM/FM/CD Receiver with Remote...

  • Page 2: Typical Mounting Method

    XD7500 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. (consult a qualified technician for instructions) • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

  • Page 3: Wiring Diagram

    RCA Cable (sold separately) FUSE When replacing a fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XD7500 uses one 10 amp ATM fuse located beside the wiring connector.

  • Page 4: Operation

    XD7500 OPERATION Control Locations - Receiver Open Local/Distance Band/Play/Pause Auto Store/Preset Scan Audio Volume Display Tune/Track Down Mode Scan Tune/Track Up Eject Mute Infrared Sensor Preset 6 Preset 5 Preset 4 Preset 3/CD Intro Preset 2/CD Random Preset 1/CD Repeat...

  • Page 5: Control Locations - Remote

    Power Volume Up Mode Audio Tune/Track Up Volume Down Preset 3/CD Intro Preset 2/CD Random Preset 6 XD7500 Control Locations - Remote Eject Auto Store/Preset Scan Open Preset 5 Preset 4 Preset 1/Repeat Mute Tune/Track Down Band/Play/Pause OPERATION...

  • Page 6: General Operation

    XD7500 OPERATION General Operation Power On/Off Faceplate Removal Semi-permanent Faceplate Installation Mode Loudness Volume Programmable Turn-On Volume Preset EQ Curves Display Set the Clock 12/24-hour Clock Press PWR or any other button (except EJECT or OPEN) to turn the unit on. Inserting a CD will turn the unit on automatically.
  • Page 7 Treble Balance Fader Source Audio Memory Confirmation Beep Mute XD7500 General Operation Press and hold DISP then press TUNE frequency (tuner mode) or CD elapsed time/track (CD player mode) display priority (default). Clock is accessed by pressing DISP momentarily. Press and hold DISP then press TUNE display priority.

  • Page 8: Tuner Operation

    XD7500 OPERATION Tuner Operation Seek Tuning Manual Tuning Scan Tuning Local/Distance Band Frequency Spacing Storing and Recalling Station Presets Automatically Store Stations Preset Scan Press TUNE or TUNE next strong station. Press TUNE or TUNE then release. "MANU" will momentarily appear in the display.

  • Page 9: Cd Player Operation

    Intro Repeat Random CD-R/CD-RW Compatibility XD7500 CD Player Operation Press EJECT to allow the rear panel to slide down. With the label facing up, insert a standard size CD into the CD slot. The rear panel will close and the CD will automatically begin playback.

  • Page 10: Limited One-Year Warranty

    UPS shipping address (P.O. Box not acceptable), and a daytime phone number with your shipment. 4. DUAL will pay the return shipping charges if the product is returned to an address within the USA. Namsung America Inc.

  • Page 11: Specifications

    Tuning range: Usable sensitivity: Frequency response: General Total power output: Power output: Operating voltage: Speaker output impedance: Line output voltage: Dimensions: Design and specifications subject to change without notice XD7500 OPERATION Specifications >92dB 10Hz-20kHz >65dB 1 Bit 87.5MHz-107.9MHz 8.5dBf 10dBf 40dB...

  • Page 12: Troubleshooting

    XD7500 OPERATION Troubleshooting Problem Yellow wire not connected or incorrect voltage Unit will not turn on Red wire not connected or incorrect voltage (no power) Black wire not connected Fuse blown Speaker wires not connected Unit has power (but no sound)
