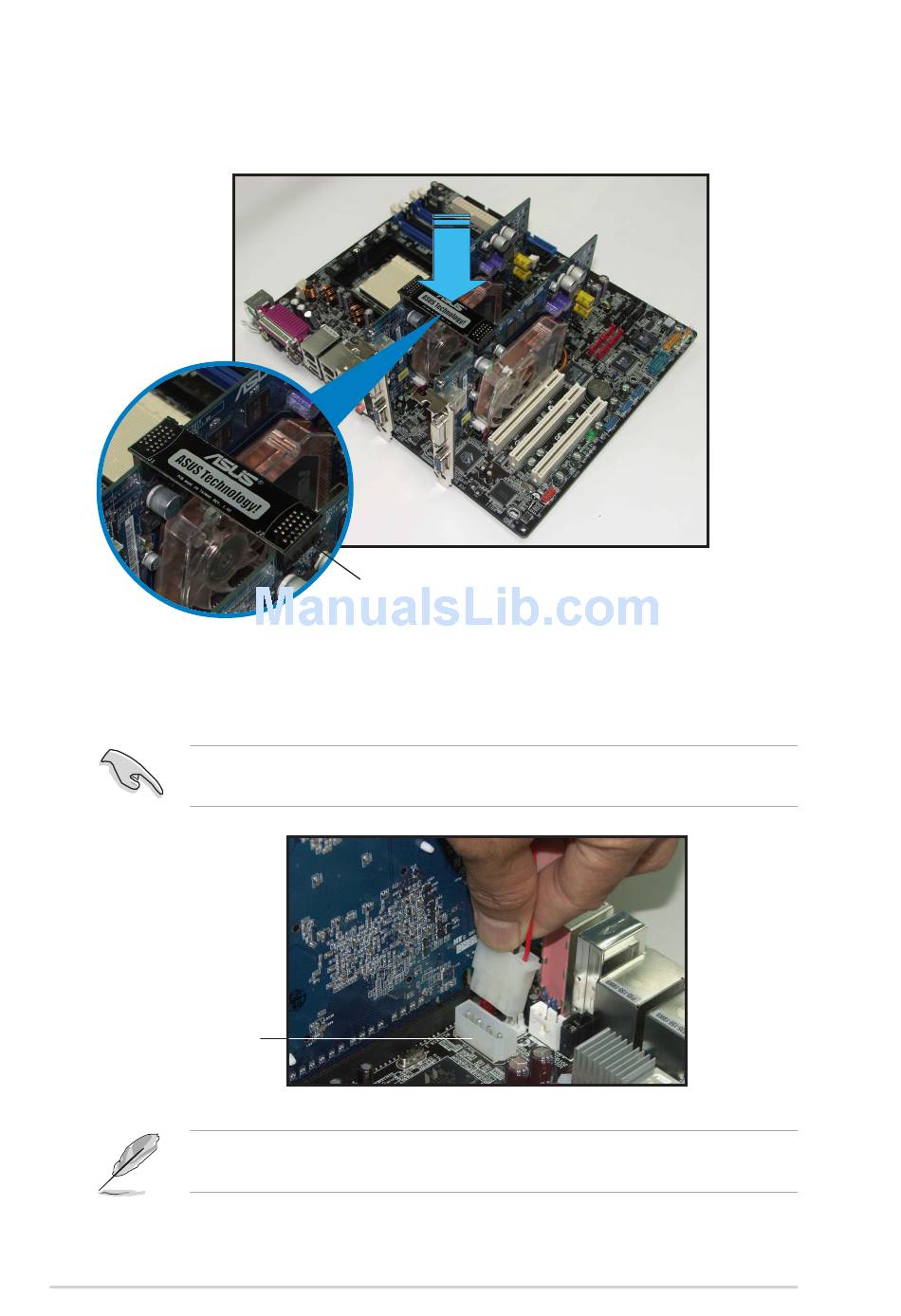

5. Align and insert the SLI connector to the goldfingers on each graphics
card. Make sure that the connector is firmly in place.
6. Connect a 4-pin ATX power cable to the EZ Plug™ labeled E Z _ P L U G
on your motherboard.
Make sure to connect a 4-pin ATX power cable to the EZ Plug; otherwise,
the system will be unstable.
A S U S E Z A S U S E Z A S U S E Z A S U S E Z A S U S E Z
P l u g ™ P l u g ™ P l u g ™ P l u g ™ P l u g ™
The onboard red warning LED lights up if you do not plug a 4-pin ATX
power cable to the EZ Plug.
