Table 1. Supported DIMM Module Type
Size Organization
256MB 8MB x 8 x 4 bks
16MB x 4 x 4bks
512MB 16MB x 8 x 4bks
32MB x 4 x 4bks
1GB 32MB x 8 x 4bks
64MB x 4 x 4bks

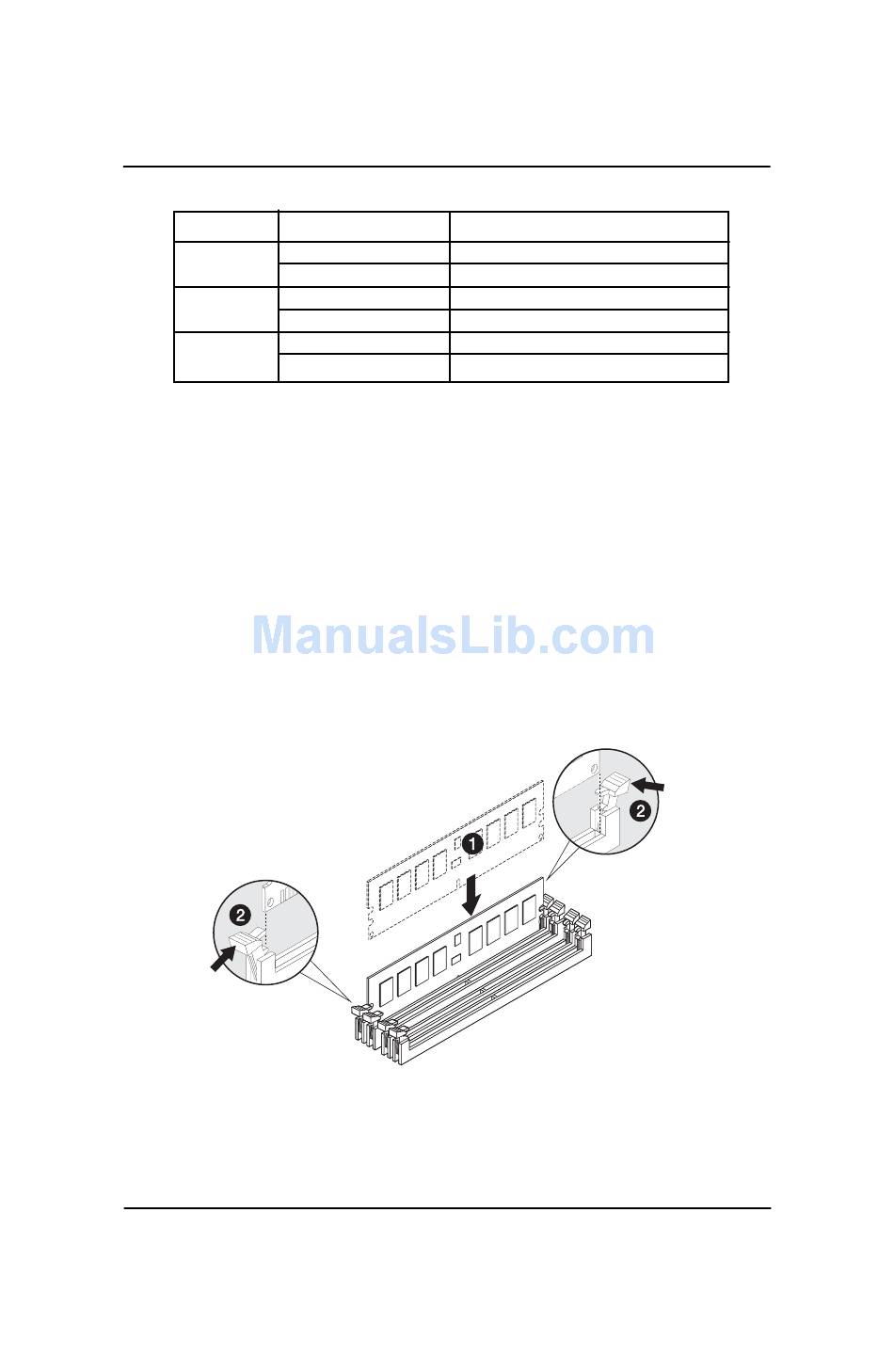

Installation Steps:

1. Unlock a DIMM socket by pressing the retaining clips outwards.Aling a DIMM on the socket such
that the notch on the DIMM exactly match the notch in the socket.
2. Firmly insert the DIMMinto the socket until the retaining clips snap back in place.
NOTE!! We recommened you to populate the same device size on each socket and the
same DIMM size.
4. Reverse the installation steps if you want to remove the DIMM module.
Hardware Installation Process
RAM Chips/DIMM
8
16
8
16
8
16
1 3
