Summary of Contents for Dual MXC22

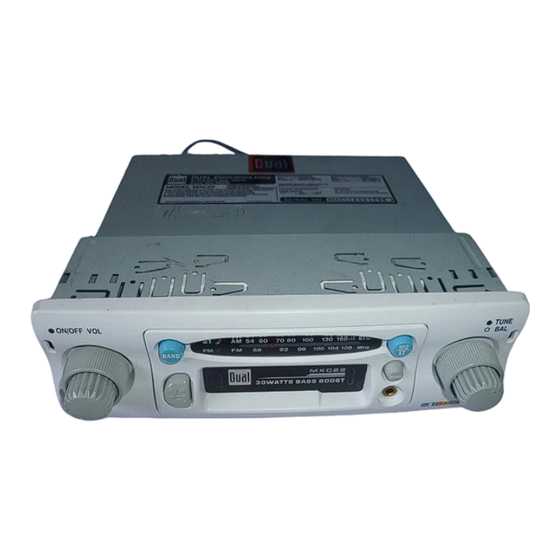

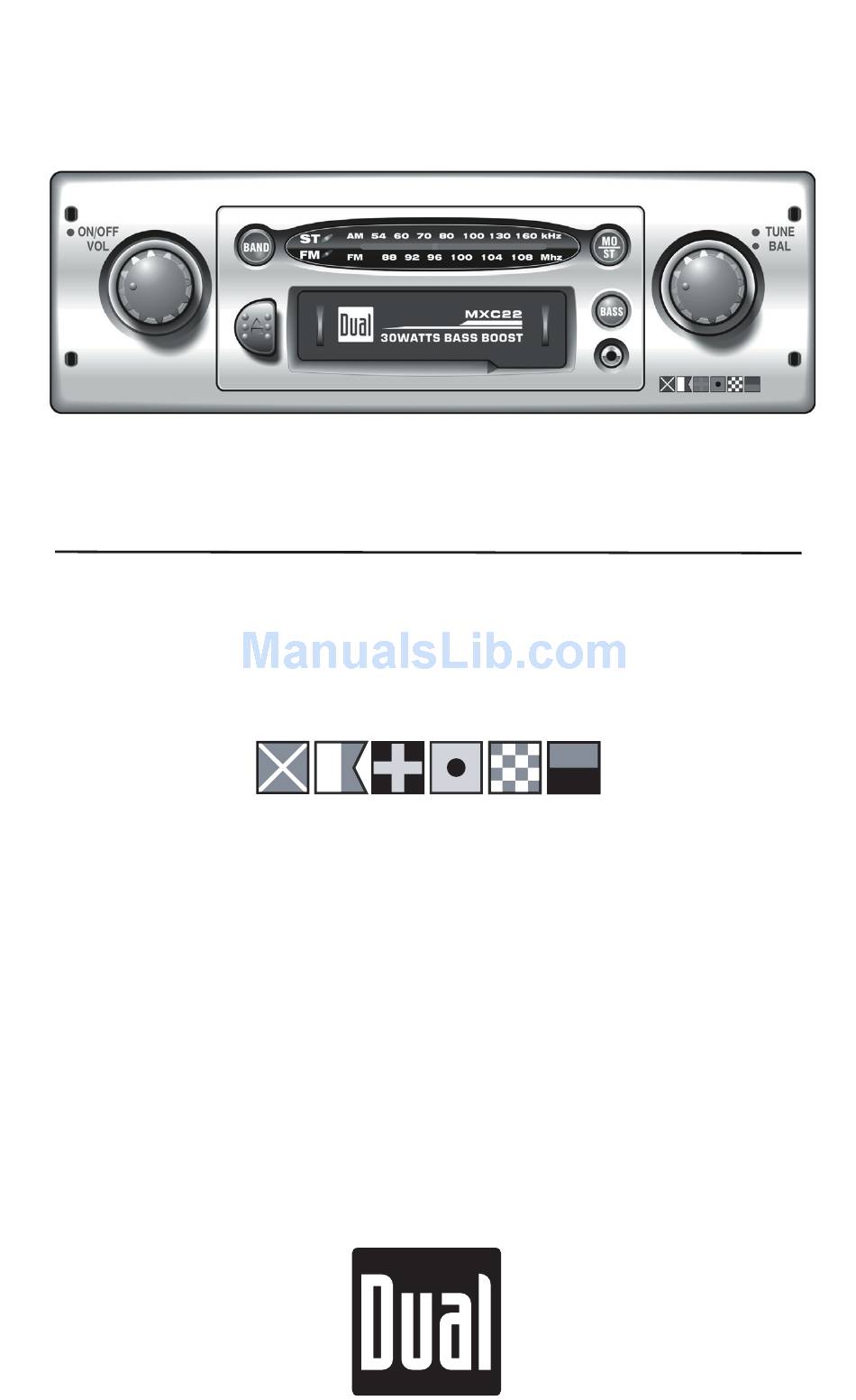

- Page 1 MXC22 INSTALLATION/OWNER’S MANUAL AM/FM/Cassette Marine Receiver MARINE ®...
- Page 2 ® MXC22 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. (consult a qualified technician for instructions) • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Installation
Typical DIN Mounting SHAFT NUTS KNOBS Typical 2-Shaft Mounting SHAFT NUTS KNOBS MXC22 INSTALLATION Installation MOUNTING SLEEVE DIN ADAPTERS RADIO OPENING OR INSTALLATION KIT ®... - Page 4 12 volt source. FUSES fuse is the correct type and amperage. Using an incorrect fuse could damage radio. The MXC22 uses one 3 amp AGC fuse (Ignition) and one .5 amp AGC fuse (Remote turn-on) located in-line.
-
Page 5: Control Locations
POWER knob clockwise or eject cassette to begin or resume tuner operation. Insert a standard 3.5 mm (line or headphone output) plug into the auxilary input to listen to a portable CD or MP3 player. MXC22 OPERATION Control Locations Tuning Balance... -
Page 6: Tuner Operation
® MXC22 OPERATION General Operation Bass Boost Volume Balance Tuner Operation Tuning FM Mono/Stereo Band Cassette Player Operation Insert Cassette Eject Fast Forward (continued) Press BASS to activate and deactivate bass boost curve. Activating this feature will enhance the bass frequencies when listening to music at low volumes. -
Page 7: Limited One Year Warranty
This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase. -
Page 8: Specifications
Specifications Cassette Player FM Tuner AM Tuner General ©2005 Dual Electronics Corporation. All rights reserved. Signal-to-noise: >40dB Frequency response: Tuning range: 87.5MHz-107.9MHz Frequency response: Tuning range: 530kHz-170kHz Frequency response: Total system power: Power output: 15Wx2 @ 14.4 VDC Power supply:...
