The PC801 Passive Combiner permits combining the
outputs of up to 8 sets of Audio/Video Modulators,
Channel Processors, etc. onto a single coax.
Additional combiners may be used, with their outputs
combined, to increase capacity as required.
(up to +60 dBmV
SPECIFICATIONS
Frequency Range:
Insertion Loss:
Port-port Isolation:
Maximum Input:
Impedance:
Return Loss (all ports):
Monitor Test Point:
Operating Temperature:

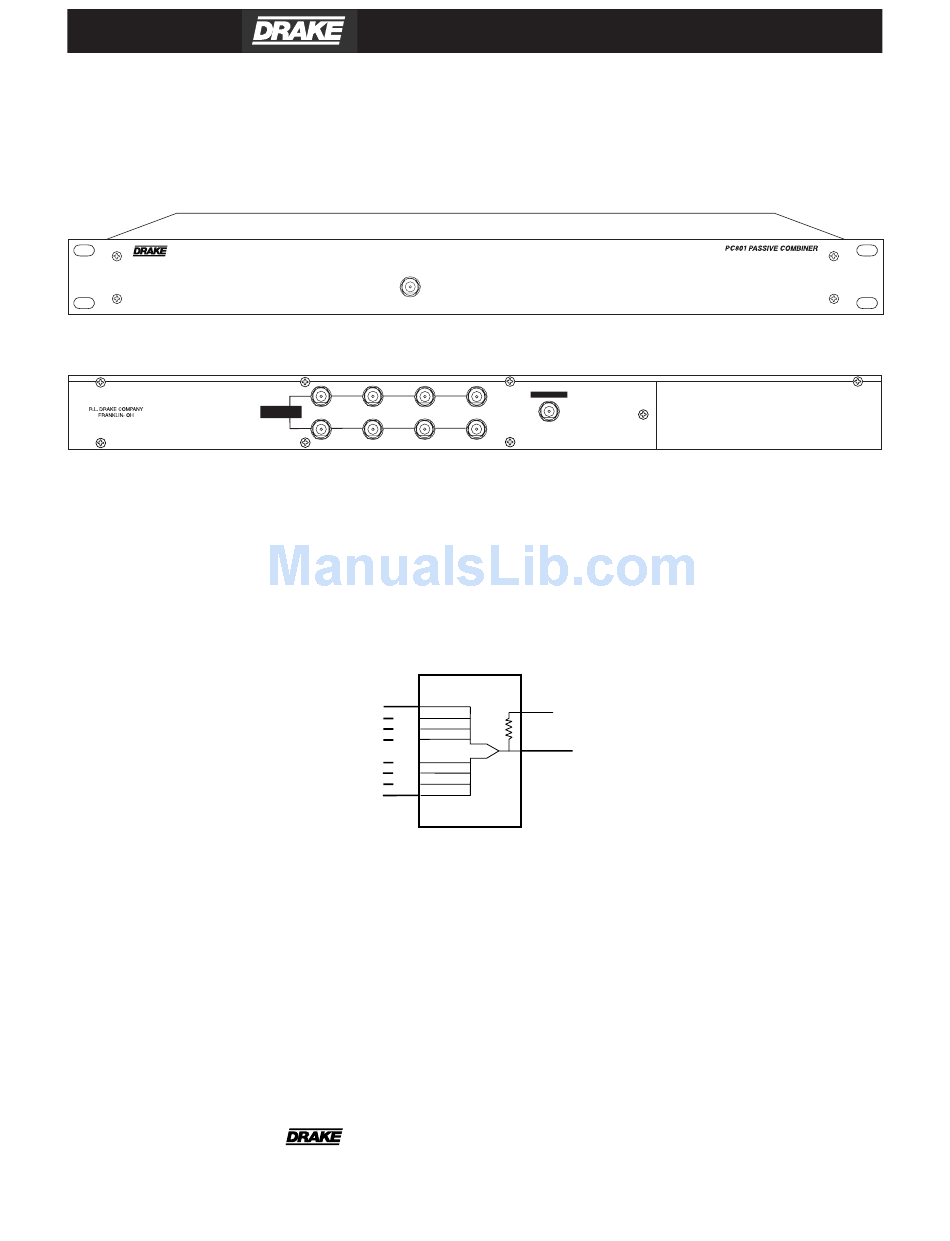

PC801 Passive Combiner
MONITOR
-20 dB
FRONT PANEL
RF INPUTS
5 - 1000 MHz
REAR PANEL
8 WAY PASSIVE
8 INPUTS
each input)
BLOCK DIAGRAM
5-1000 MHz.
12 dB nominal, 14.5 dB maximum.
30 dB nominal, 25 dB minimum.
+60 dBmV, each input.
75 Ohms.
16 dB nominal, 14 dB minimum.
-20 dB (referenced to output).
Shielding:
Meets FCC Part 76 requirements when operated at rated input levels.
-20
0
C to +50
0
Size:
19" W x 1.75" H x 3.7" D.
® is a registered trademark of the R.L. Drake Company
© Copyright 2004 R.L. Drake Company
The unit mounts in a standard 1-3/4" H x 19" W rack
space. A Monitor output is provided at the front panel
of the combiner.
RF OUTPUT
MONITOR OUTPUT -20 dB
1 OUTPUT
C.
P/N: 3853662B-4-2004
