DRAKE PC1601 Datasheet

The PC1601 Passive Combiner permits combining the
outputs of up to 16 Audio/Video Modulators, Channel
Processors, etc. onto a single coax. Additional
PC1601's may be used, with their outputs combined,
to increase capacity as required.
RF INPUTS
5 - 1000 MHz

SPECIFICATIONS*

Frequency Range:
Insertion Loss:
Port-port Isolation:
Maximum Input:
Impedance:
Return Loss (inputs):
Return Loss (output):
Monitor Test Point:
Operating Temperature:
*All ports terminated with nominal 75 Ohm loads.

PC1601 Passive Combiner

MONITOR
-20 dB

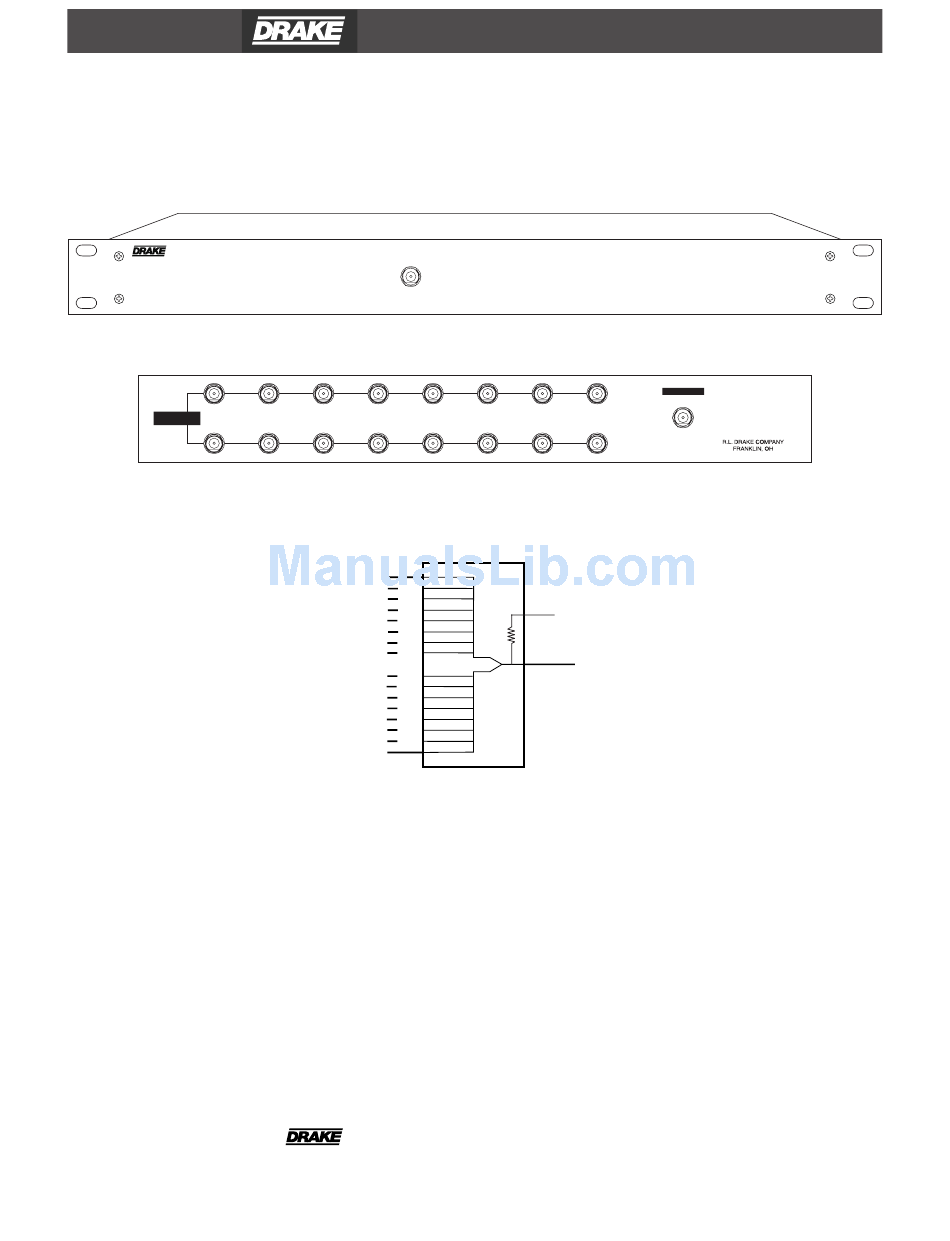

FRONT PANEL
REAR PANEL
16 WAY PASSIVE
16 INPUTS
(up to +60 dBmV
each input)
BLOCK DIAGRAM
5-1000 MHz.
17 dB nominal, 20 dB maximum.
32 dB nominal, 30 dB minimum from 15 to 750 MHz,
25 dB minimum from 5 to 15 MHz and 750 to 1000 MHz.
+60 dBmV, each input.
75 Ohms, all ports.
16 dB nominal, 14 dB minimum.
16 dB nominal, 14 dB minimum from 5 to 750 MHz, 13 dB minimum from
750 to 1000 MHz.
-20 dB (referenced to output).
Shielding: Meets FCC Part 76 requirements when operated at rated input levels.
-20 0 C to +50 0
Size: 19" W x 1.75" H x 3.7" D.
® is a registered trademark of the R.L. Drake Company
© Copyright 2003 R.L. Drake Company
The unit mounts in a standard 1-3/4" H x 19" W rack
space. A Monitor output is provided at the front panel
of the combiner.
MONITOR OUTPUT
-20 dB
1 OUTPUT
C.
P/N: 3853664A-8-2003
PC1601 PASSIVE COMBINER
RF OUTPUT
1
