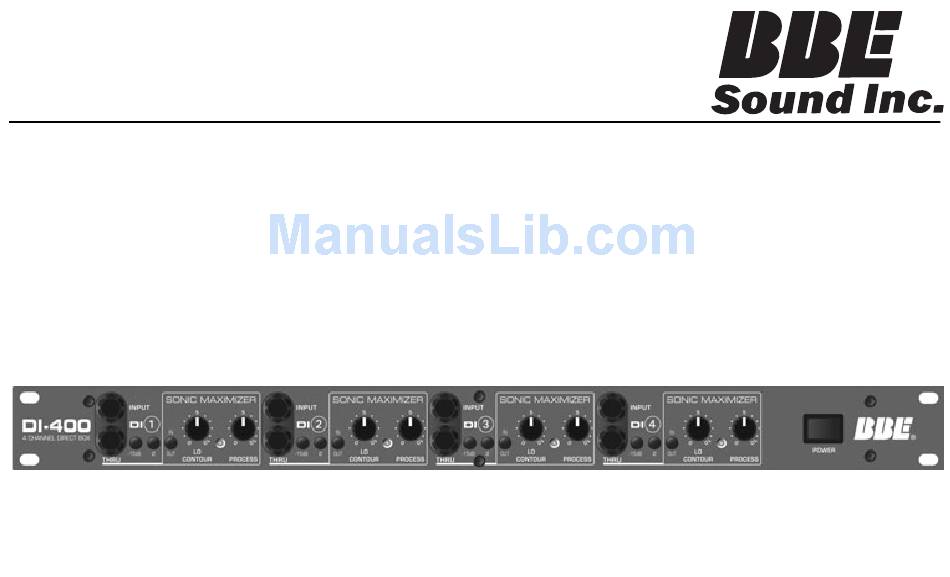

- Page 1 ® DI-400 User Manual...
- Page 2 IMPORTANT SAFEGUARDS For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions and instructions on the appliance and described in the operating instructions supplied with the appliance. INSTALLATION Any mounting of the product should follow the manufacturer’s holds the power cord plug firmly and securely.
-
Page 3: Table Of Contents
• 1% metal film resistors throughout • Made with pride in the USA With the introduction of the DI-400, we are now able to offer our Sonic Maximizer™ technology in IMPORTANT an extremely high quality rack-mount DI. Before you begin, please check the contents within this... -
Page 4: Bbe Process Explained
However, phase and amplitude BBE Sound, Inc. conducted extensive studies of integrity is essential to accurate sound reproduction. numerous speaker systems over a ten year period. With... -
Page 5: Front Panel
LOW CONTOUR CONTROL Engages the Sonic Maximizer The 1/4” input connector of the Regulates the amount of phase DI-400 is unbalanced. The 1/4” Process. When the switch is corrected bass frequencies. pushed in, the BBE Process is input is designed for running on. -
Page 6: Rear Panel
REAR PANEL XLR OUTPUT CONNECTOR XLR Pin configuration: The XLR output of the DI-400 is Pin 1 = Ground, Pin 2 = Positive and balanced. The XLR output is used for Pin 3 = Negative. running from the DI-400 directly to the input of a mixing console. -
Page 7: Instrument Application
INSTRUMENT LEVEL APPLICATION +48V +48V +48V +48V +48V +48V +48V +48V T/B LEVEL 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN... -
Page 8: Line Level Application
LINE LEVEL APPLICATION +48V +48V +48V +48V +48V +48V +48V +48V T/B LEVEL 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB 20dB GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN... -
Page 9: Service And Maintenance
As the repair turnaround time is minimal, we request which requires service be sent to our facility in that the unit be sent to BBE Sound, Inc. We also need to Huntington Beach, California. We request that a add reliability data to our files so that future revision “RETURN AUTHORIZATION”... -
Page 10: Warranty
WARRANTY Warranty registration of the unit to BBE Sound, Inc. is not This warranty will be consider null and void by BBE Sound, necessary. It is strongly recommended that you retain a Inc. if any of the following is found: copy of the bill of sale for future reference. -
Page 11: Specifications
SPECIFICATIONS Frequency Response @ Line Out, process mode:…………………………………………………Program Controlled bypass mode: …………………………………………………10Hz to 50kHz (+/- 1dB) Signal to Noise Ratio: BBE OUT ………………………………………………………118dB BBE IN (@ 10) …………………………………………………115dB THD: BBE OUT ………………………………………………………less than 0.005% at -l0dBu input 20-20kHz BBE IN …………………………………………………………0.05% (20-20kHz) Noise: BBE OUT ………………………………………………………-105dBu BBE IN (@ 0) …………………………………………………-94dBu BBE IN (@ 10) …………………………………………………-85dBu... - Page 12 ® 5381 Production Drive Huntington Beach, CA 92649 714-897-6766 • FAX 714-896-0736 www.bbesound.com covered by U.S. Patent 4,482,866 and other U.S. and foreign patents pending. BBE is the registered trademark of BBE Sound, Inc. rev. 1 12/06...
